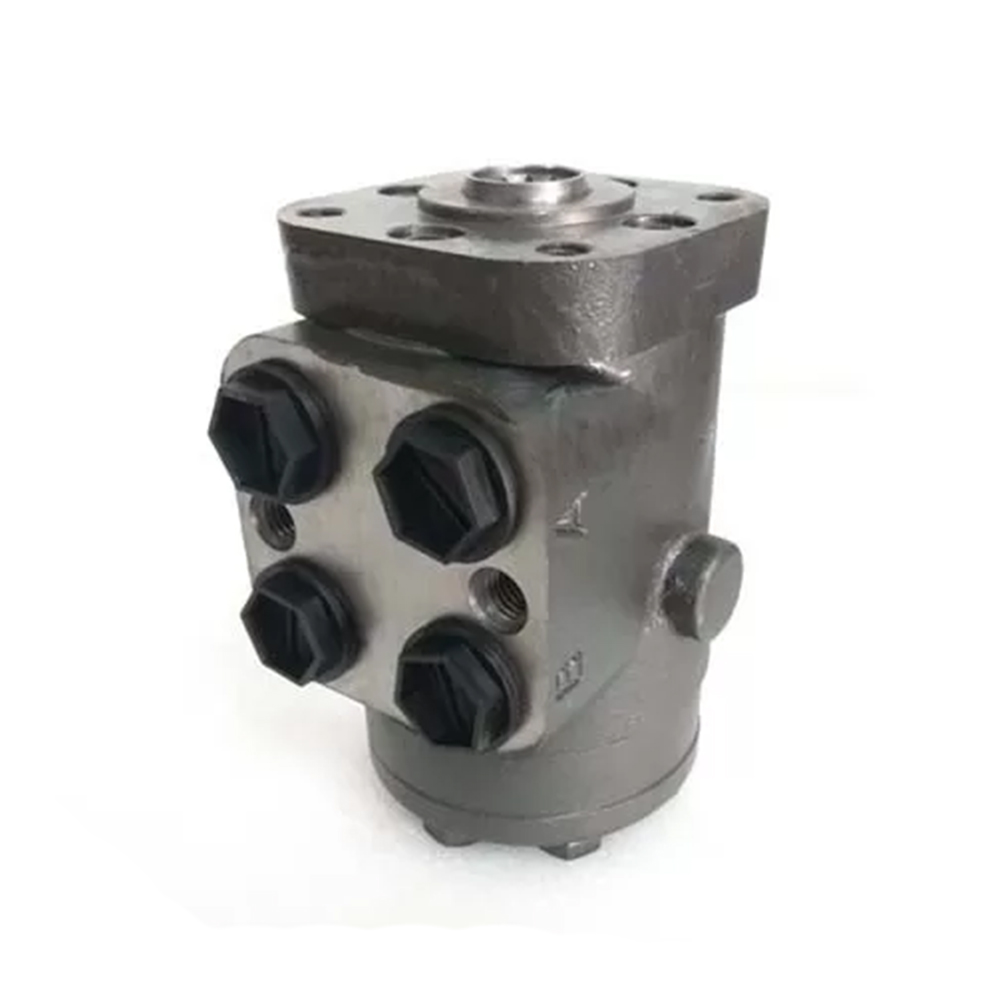

BZZ Hydraulic Steering Unit
Xeriwell or Others
| Features: | Same As Ospc / M+S HKUS | Product Name: | Hydraulic Steering Unit Bzz |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | Bzz |
| Displacement: | 50, 80, 100, 125, 160,... | Applications: | Agricultural, Forestry, Marine, Construction, ... |
| Highlight: | hydrostatic steering unit,hydraulic steering pump | ||
Hydraulic Steering Unit BZZ Steering Unit Lntroduction To The Valve Amplifier, You Can Add A Valve Block
1. Low cost, reliable.
2. No load reaction on the steering wheel comfortable.
3. Manual operation available when the pump doesnt work.
4. Low control torque, continuous operation.
5. According to the system, different function and pressure level valves available.
Main Specification:
| Model | Displacement (ml/r) | Flow (L/min) | Max. input pressure (Mpa) | Max.cont.back pressure (MPa) | Weight (kg) |
| BZZ1,2,3-E50* | 50 | 4 | 16 | 2.5 | 4.72 |
| BZZ1,2,3-E80* | 80 | 6 | 5.0 | ||
| BZZ1,2,3-E100* | 100 | 7.5 | 5.27 | ||
| BZZ1,2,3-E125* | 125 | 9.5 | 5.43 | ||
| BZZ1,2,3-E160* | 160 | 12 | 5.75 | ||
| BZZ1,2,3-E200* | 200 | 15 | 6.08 | ||
| BZZ1,2,3-E250* | 250 | 19 | 6.48 | ||
| BZZ1,2,3-E280* | 280 | 21 | 6.78 | ||
| BZZ1,2,3-E315* | 315 | 24 | 7.13 | ||
| BZZ1,2,3-E400* | 400 | 30 | 7.78 | ||
| BZZ1,2,3-E500* | 500 | 38 | 8.67 | ||
| BZZ1,2,3-E630* | 630 | 48 | 9.72 | ||
| BZZ1,2,3-E800* | 800 | 60 | 11.18 | ||
| BZZ1,2,3-E1000* | 1000 | 75 | 12.8 |
Hydraulic steering control units (BZZ),hydraulic motor
BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), new design, better performance. Widely applied to low speed and heavy load vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.
