| Quantity: | |
|---|---|
101S
Xeriwell or Others
| Features: | Match Than ,M+S Hydraulic Steering Units | Product Name: | Tractor Hydraulic Steering Units |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 50cc - 1000cc |
| Application: | Wheel Loader | Model Number: | 101s-1-500cc |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||

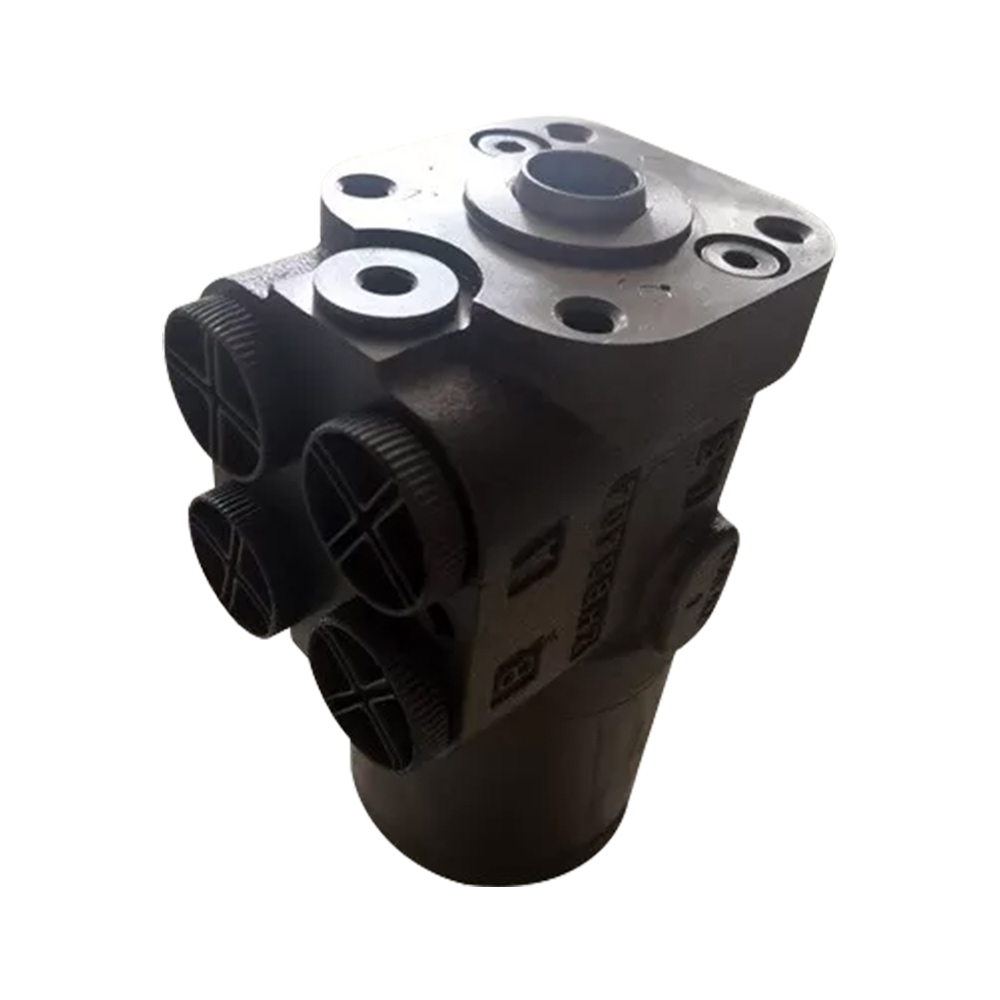

Construction Wheel Loader CAT, JCB, , Doosan Hydraulic Steering Unit
1. Characteristic Features
1) We are professional manufacturer produce Hydraulic steering units for wheel loaders.
2) Quality match than , M+S, Eaton.
3) Match than OEM spare parts code number.
4) Application CAT, JCB, , Doosan Wheel Loaders
2. This type steering unit is 101s-1-500, same than OSPC500ON
Oil Port : G1/2”
Mounting: M10
If you need other type steering units or details, please contact me and send your product details to me.
| Wheel Loader Steering Units | 101s-... = OSPC = HKUS | OEM Parts |
100cc 125cc 160cc 200cc 250cc 315cc 400cc 500cc 630cc 800cc | CAT JCB DOOSAN ...... |
3. Specification
油口螺纹 Ports Threads | |||
| 代码 Code | P、T、A、B油口 Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Valve Mounting V |
| A | M20×1.5 | M10 | M12 |
| B | M20×1.5 O-ring | ||
| C | M18×1.5 | ||
| D | M18×1.5 O-ring | ||
| E | G1/2 | M10×1 | |
| U | G1/2 O-ring | ||
| M | 3/4-16UNF O-ring | M12 | |
| F | 3/8-16 UNC | 3/8-24 UNF | |
| I | M10 | M10 | |
| N | M10×1.25 | ||
| 注1：油口P、T、A、B的深度15 mm，连接螺纹C、V的深度16 mm。 Note 1:Ports P,T,A,B Depth:15 mm;Column Mounting C &V Depth:16 mm. | |||
| 注2：其他油口连接方式协议确定代号。 Note 2:The code of other ports dimensions will be listed in an agreement. | |||
