BMT-500
Xeriwell or Others
| Type: | Hydraulic Drive Motor | Model No.: | BMT 500 |
|---|---|---|---|
| Max Speed: | Cont.240/int.285 Rpm | Max Torque: | Ocnt.1220/int.1370 N.M |
| Max Output: | Cont.28.8/int.35kw | Max Pressure: | Cont.16mpa/int.18mpa |
| Highlight: | BMT-500,G3/4 danfoss hydraulic motor,285 rpm danfoss hydraulic motor | ||

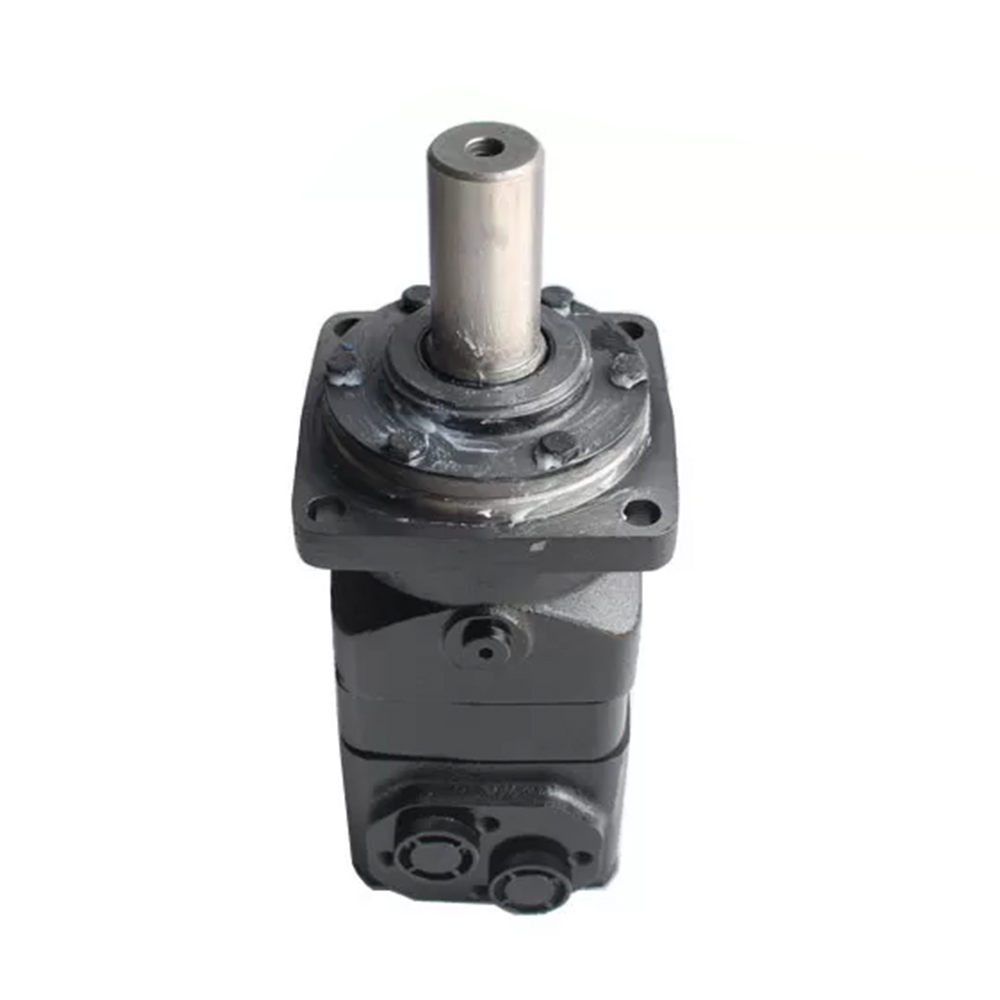

Conic Wood Splitter OMT 500 151B3005 DANFOSS medium-speed motor BMT500 BSP port G3/4
OMT BMT orbital motor are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
If the application requires very smooth running at low speeds the choice of BMS ,BMT,BMV is recommended
- Displacement: 500cc
- Shaft: Cylindrical shaft Ø40mm, parallel key A12x8x70 according to DIN 6885
- Flange: 4-hole 160.4 x 160.4 mm, Ø125 centring
- Ports: 3/4" BSP
- Genuine Danfoss reference: 151B3005
Main spec.
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Specifications:
Delivering premium power, these motors cover small to large, medium to heavy-duty needs.
advanced geroler gear set design
low pressure of start-up, smooth operate
high axial and radial forces
disc distribution flow, automatically compensate
Robust construction for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal is standard
Innovative design eliminates the need for a drain
Dependability based on high quality design and manufacturing
Market we serve:
Turf Equipment
Aerial
Agriculture Machinery
Construction Equipment
Factory Automation
Material Handling Equipment
Oil & Gas
Forestry Equipment
Mining
| MOUNTING DIMENSIONS OF OMT HYDRAULIC ORBIT MOTOR | |||
| Displacement | OMT160, OMT200, OMT230, OMT250, OMT315, OMT315, OMV400, OMV500, OMV630, OMV800. | ||
| Shaft | Cylindrical Shaft Ø40, Ø38.1, Ø31.75. Splined Shaft Ø38.1, Ø34.85. Cone Shaft Ø45 | ||
| Ports | G3/4 Manifold 4-M10, G1/4. G3/4,G1/4. M27×2 Manifold 4-M10, M14×1.5 | ||
| Flange | 4-Ø14 Square-flangeØ160, pilot Ø125×9, 4-Ø18Wheel-flange Ø200, pilot Ø160×7 | ||
| Applications | Crane, Mixer, Winches, Excavator, Conveners, Drill Rig, Concrete Truck Mixer. | ||
| Warranty | One year | ||
