| Quantity: | |
|---|---|
BMH
Xeriwell or Others
| Product: | Hydraulic Motor | Frature: | Hydraulic Oil |
|---|---|---|---|
| Model: | BMH/OMH | Displacement: | 200/250/315/400/500 Cc/rev |
| Color: | Black, Gray | HS Code: | 84122910.00 |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

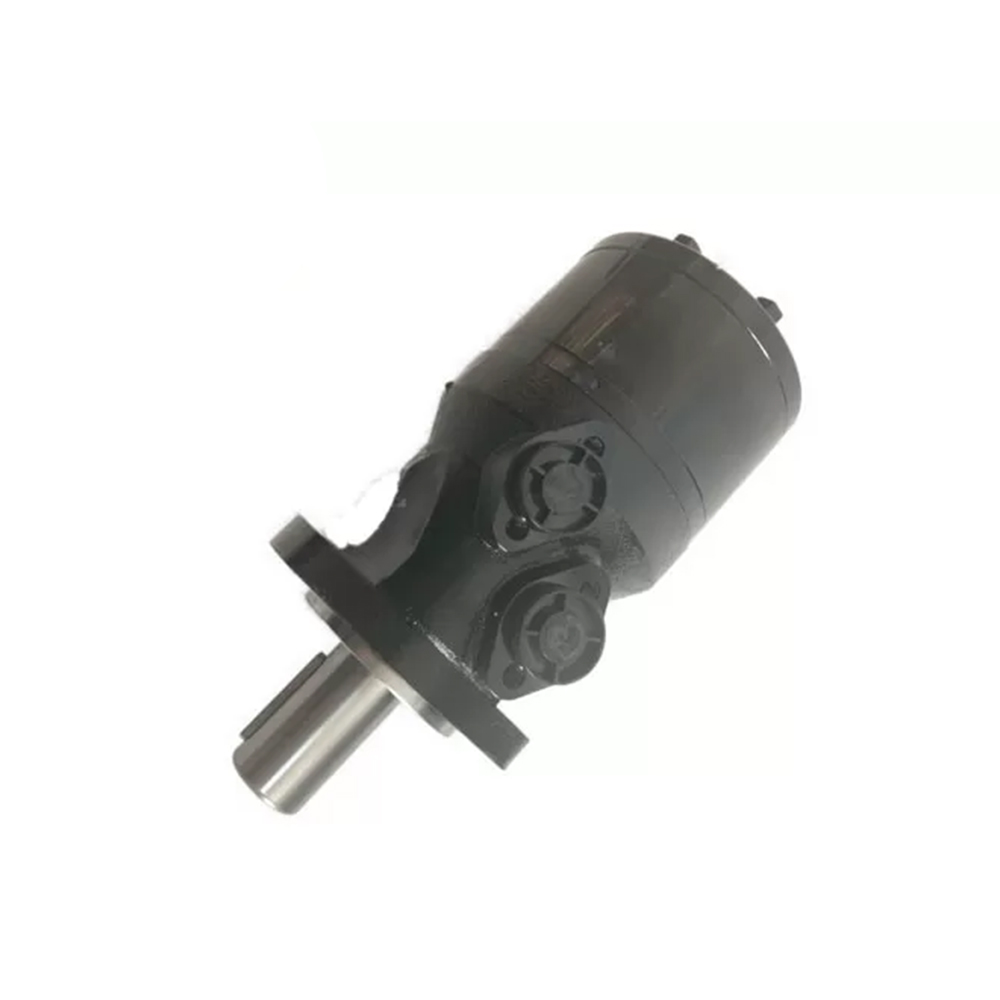

Concrete Pump Spare Parts OMH/BMH500 Orbital Motor For Putzmeister
BMH series motor can widely use for construction equipment, the shaft (32mm and 35mm) is the most suitable size. The direction of shaft rotation and speed can be controlled easily and smoothly. And has a greater lateral load capacity and lon life.
Xeriwell BMH series motor replace OMH, M+S MH series.
Features:
* The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.
Main Specifications:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
Model Crossing:
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | BOSCH | |
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | ||
| BMM | MM | OMM | MGX | |||||
| MLHK | J SERIES | - | - | - | BGM | |||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | |
| TE | ||||||||
| HP | H SERIES | DH | MG | RS | TB | |||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | ||
| HR | S,T SERIES | DS | RE | TF | ||||
| MLHRW, RW | W SERIES | OMEW | ||||||
| BMH/BM4 | MH | OMH | ||||||
| MLHH | ME | |||||||
| HW, HWF | RE | TG | ||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | ||||
| HPR | ||||||||
| MLHS | 2000 SERIES | ME | RE | |||||
| BMT/BM6 | MT | OMT | MGT, GMT | |||||
| MLHT | 6000 SERIES | MJ | HT | |||||
| MTM | TMT | |||||||
| BMV | MV | OMV | MGV, GMV | |||||
| MLHV | 10000 SERIES |
Applications:
BMH motor have widely usages, like concrete pump, harvester, sweeper, forklift truck, etc.
BMH500 specificalized in using for concrete concrete pump,such as the following.
Cifa, Junjin, Putzmeister, Schwing, Sebhsa, Sermac, MercedesBenz, Iveco, , Scania and .

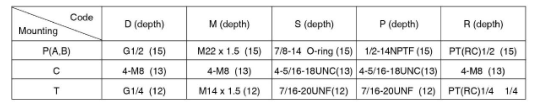

| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) | R (depth) |
| P(A,B) | G1/2 (15) | M22 x 1.5 (15) | 7/8-14 O-ring (15) | 1/2-14NPTF (15) | PT(RC)1/2 (15) |
| C | 4-M8 (13) | 4-M8 (13) | 4-5/16-18UNC(13) | 4-5/16-18UNC(13) | 4-M8 (13) |
| T | G1/4 (12) | M14 x 1.5 (12) | 7/16-20UNF(12) | 7/16-20UNF (12) | PT(RC)1/4 1/4 |
