| Quantity: | |
|---|---|
BMR100
Xeriwell or Others
| Product: | Hydraulic Harvester Motor | Manufacture: | Xeriwell |
|---|---|---|---|
| Model: | BMR-3-F-D-2-A-2-A | Flange: | 2 Bolt Mount, Pilot 82.55mm |
| Shaft: | 25.4mm | Oil Port: | Port G1/2, Drain G1/4 |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||
Orbit Hydraulic Motor For Combine Harvester, Sweepers, Hole Digger
The company mainly produce and provide orbit hydraulic motor, hydraulic spare parts to industry of:
APPLICATIONS:
Agricultural planting,
Ground care, Sweeping and Mowing machinery,
Construction,
Forestry,
wood processing and cutting,
Farmland irrigation winch ,
Winch Wood from deforestation,
Construction machinery and platform,
Pilling machines,
Oceanographic research winch,
Nautical equipment and winches for fishing boats,
Towing and mooring winches, and many more.
PRODUCT INTRODUCE:
Orbital Hydraulic Motors Low speed high torque type
used for sweeping, cutting, rotating, harvesting, lifting, windling, load handling, delivery and more power transmission applications.
displacement 8ml/r to 1000ml/r, speed from 100RPM to 2000RPM, flow from 40Lpm to 225Lpm, working pressure from 9MPa to 30MPa, torque from 75N*M to 3000N*M.
form, fit and 100% interchange with wolrd popular models and brands Like , Eaton, M+S, SAM, and others

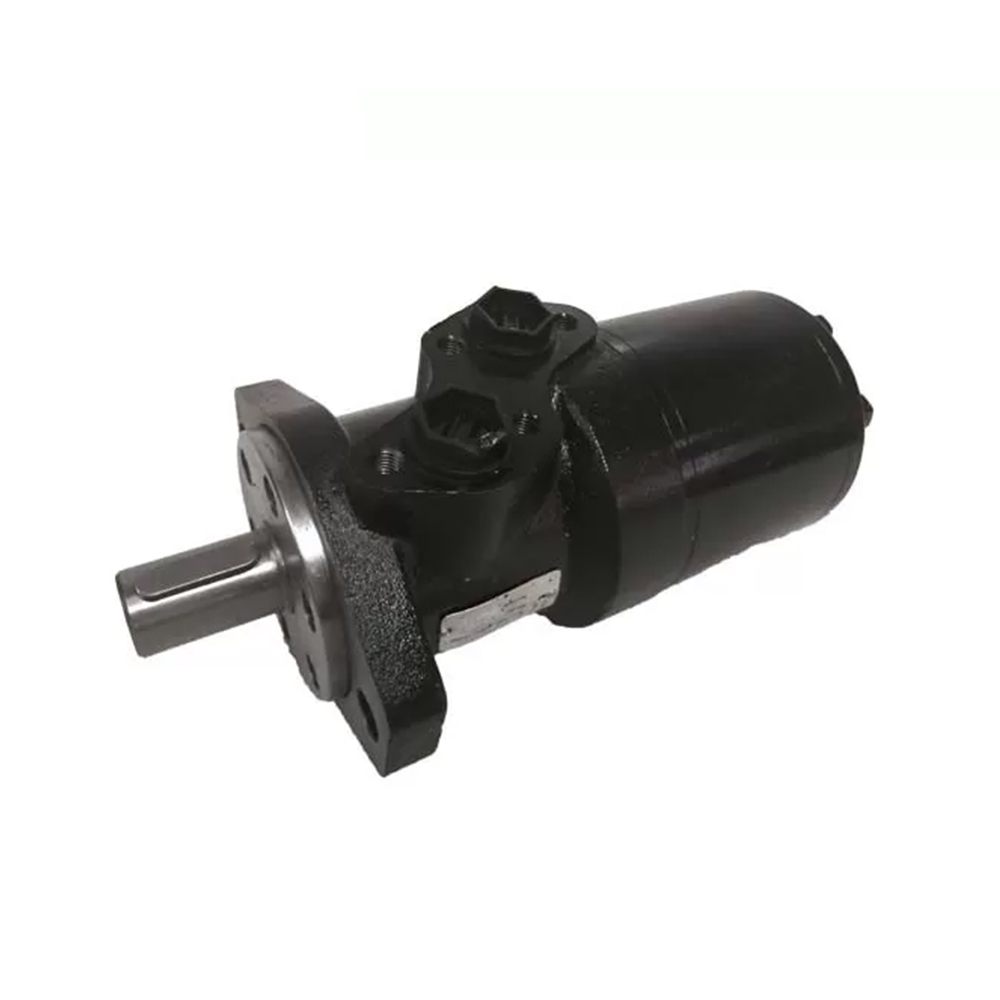

PRODUCT INTRODUCE OF THE MOTOR IN THE PICTURE:
Gerotor Hydraulic Motor BMR series
Same as Eaton Char-Lynn Gerotor Hydraulic Motor S, T, W
Same as Gerotor Hydraulic Motor OMR
Same as M+S Gerotor Hydraulic Motor MR
Same as White Cross Hydraulic Motor RE
Same as SAM Brevini Hydraulic Motor BR
Manufacturer: Xeriwell
Model: BMR-3-F-D-2-A-2-A
Description: Xeriwell Gerotor Hydraulic Motor
Packaging Condition Details: 1 pc/ inner carton, 3 inner cartons/ outer cartons.
Shaft Length: 40mm
Shaft Diameter: 25.4mm
Number of Ports: 2
Number of Drain Port: 1
Size of Ports: G1/2, G1/4
MAIN SPECIFICATIONS:
| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Technical data for BMR with 31.75 and 32 shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 500 | 610 | 690 | 690 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 710 | 840 | 830 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 11 | 10 | 9 | 7.5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 12 | 10 | 9 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 20 | 20 | 17.5 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
| Product: | Hydraulic Harvester Motor | Manufacture: | Xeriwell |
|---|---|---|---|
| Model: | BMR-3-F-D-2-A-2-A | Flange: | 2 Bolt Mount, Pilot 82.55mm |
| Shaft: | 25.4mm | Oil Port: | Port G1/2, Drain G1/4 |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||
Orbit Hydraulic Motor For Combine Harvester, Sweepers, Hole Digger
The company mainly produce and provide orbit hydraulic motor, hydraulic spare parts to industry of:
APPLICATIONS:
Agricultural planting,
Ground care, Sweeping and Mowing machinery,
Construction,
Forestry,
wood processing and cutting,
Farmland irrigation winch ,
Winch Wood from deforestation,
Construction machinery and platform,
Pilling machines,
Oceanographic research winch,
Nautical equipment and winches for fishing boats,
Towing and mooring winches, and many more.
PRODUCT INTRODUCE:
Orbital Hydraulic Motors Low speed high torque type
used for sweeping, cutting, rotating, harvesting, lifting, windling, load handling, delivery and more power transmission applications.
displacement 8ml/r to 1000ml/r, speed from 100RPM to 2000RPM, flow from 40Lpm to 225Lpm, working pressure from 9MPa to 30MPa, torque from 75N*M to 3000N*M.
form, fit and 100% interchange with wolrd popular models and brands Like , Eaton, M+S, SAM, and others
PRODUCT INTRODUCE OF THE MOTOR IN THE PICTURE:
Gerotor Hydraulic Motor BMR series
Same as Eaton Char-Lynn Gerotor Hydraulic Motor S, T, W
Same as Gerotor Hydraulic Motor OMR
Same as M+S Gerotor Hydraulic Motor MR
Same as White Cross Hydraulic Motor RE
Same as SAM Brevini Hydraulic Motor BR
Manufacturer: Xeriwell
Model: BMR-3-F-D-2-A-2-A
Description: Xeriwell Gerotor Hydraulic Motor
Packaging Condition Details: 1 pc/ inner carton, 3 inner cartons/ outer cartons.
Shaft Length: 40mm
Shaft Diameter: 25.4mm
Number of Ports: 2
Number of Drain Port: 1
Size of Ports: G1/2, G1/4
MAIN SPECIFICATIONS:
| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Technical data for BMR with 31.75 and 32 shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 500 | 610 | 690 | 690 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 710 | 840 | 830 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 11 | 10 | 9 | 7.5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 12 | 10 | 9 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 20 | 20 | 17.5 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
