| Quantity: | |
|---|---|
BMRW
Xeriwell or Others
| Type: | Hydraulic Wheel Motor | Model: | BMRW |
|---|---|---|---|
| Hydraulic Fluid: | Synthetic Hydraulic Oil | Hydraulic Valve: | Spool Valve |
| Specification: | CE | HS Code: | 84122910 |
| Highlight: | hydraulic wheel drive motors,hydraulic track motor | ||

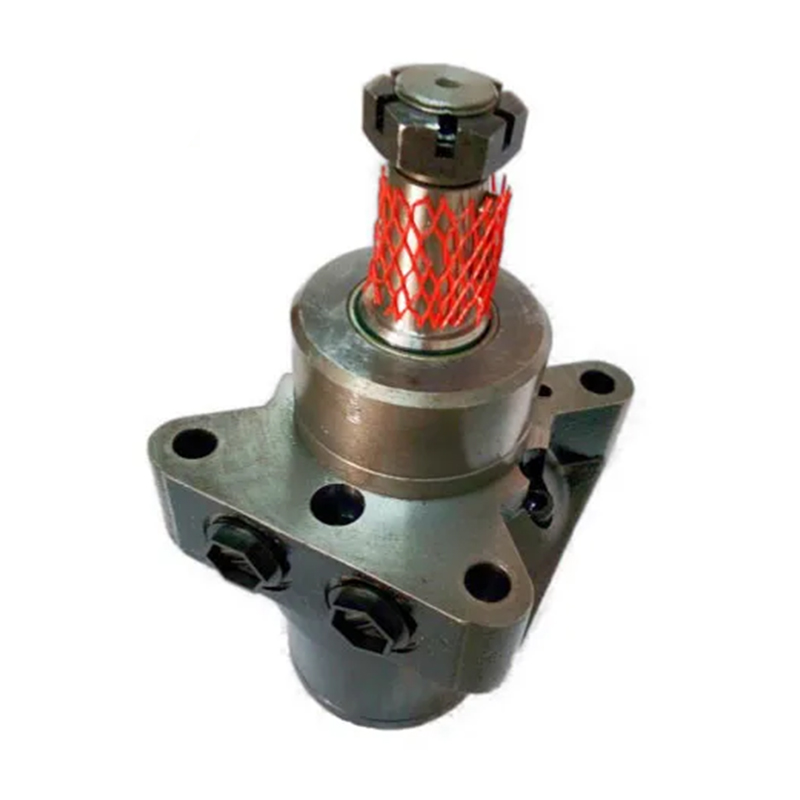

Hydraulic Wheel Motor BMRW/OMRW For Wheel Loader, Wheel Crane
Xeriwell BMRW wheel motors support professional customized services from our company.
This motor features compact size and cost-effective price. Adopting geroler design, it delivers superior flow distribution accuracy and higher mechanical efficiency.
It is equipped with a reliable shaft seal structure, capable of withstanding high working pressure and allowing parallel or series installation.
Features:
1. Spool valve motor, gerolor type
2. Interchangeable with , Eaton and M+S etc

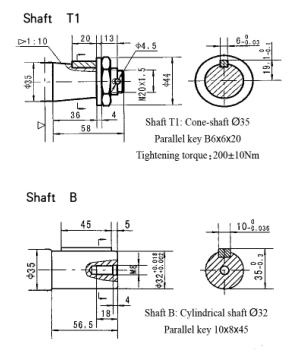

3. Shaft: 25 MM. Thread 1/2 BSP
4. Light and compact and thus easy to install
Applications:
BMRW motor can be applied to situations with less load and interval operation of all wheel vehicle, such as wheel loader, wheel crane, tractor, etc.
Main Specifications:
| BMR-50 BMRW-50 BMRS-50 | BMR-80 BMRW-80 BMRS-80 | BMR-100 BMRW-100 BMRS-100 | BMR-125 BMRW-125 BMRS-125 | BMR-160 BMRW-160 BMRS-160 | BMR-200 BMRW-200 BMRS-200 | BMR-250 BMRW-250 BMRS-250 | BMR-315 BMRW-315 BMRS-315 | BMR-400 BMRW-400 BMRS-400 | |
| Displacement (ml/r) | 51.7 | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 | |
Drop (Mpa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 |
| int. | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11 | 9 | |
| peak. | 20 | 20 | 20 | 20 | 20 | 20 | 16 | 13 | 11 | |
| Max.Torque(N.m) | cont. | 93 | 152 | 194 | 237 | 310 | 369 | 380 | 380 | 380 |
| int. | 118 | 189 | 236 | 296 | 378 | 450 | 470 | 470 | 470 | |
| peak. | 135 | 216 | 270 | 338 | 433 | 509 | 540 | 540 | 540 | |
Speed.Range (cont.)(r/min) | 10-775 | 10-750 | 10-600 | 10-475 | 10-375 | 10-300 | 10-240 | 10-190 | 10-160 | |
Max.Flow (cont.)(L/min) | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
Max.Output. Power(cont.)(Kw) | 7 | 10 | 10 | 10 | 10 | 8 | 6 | 5 | 4 | |
Weight(kg) | 6.5 | 6.9 | 7.0 | 7.3 | 7.5 | 8.0 | 8.5 | 9.0 | 11 | |
Model Crossing:
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | |||
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | |||
| BMM | MM | OMM | MGX | ||||||
| MLHK | J SERIES | - | - | - | BGM | ||||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | ||
| TE | |||||||||
| HP | H SERIES | DH | MG | RS | TB | ||||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | |||
| HR | S,T SERIES | DS | RE | TF | |||||
| MLHRW, RW | W SERIES | OMEW | |||||||
| BMH/BM4 | MH | OMH | |||||||
| MLHH | ME | ||||||||
| HW, HWF | RE | TG | |||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | |||||
| HPR | |||||||||
| MLHS | 2000 SERIES | ME | RE | ||||||
| BMT/BM6 | MT | OMT | MGT, GMT | ||||||
| MLHT | 6000 SERIES | MJ | HT | ||||||
| MTM | TMT | ||||||||
| BMV | MV | OMV | MGV, GMV | ||||||
| MLHV | 10000 SERIES |

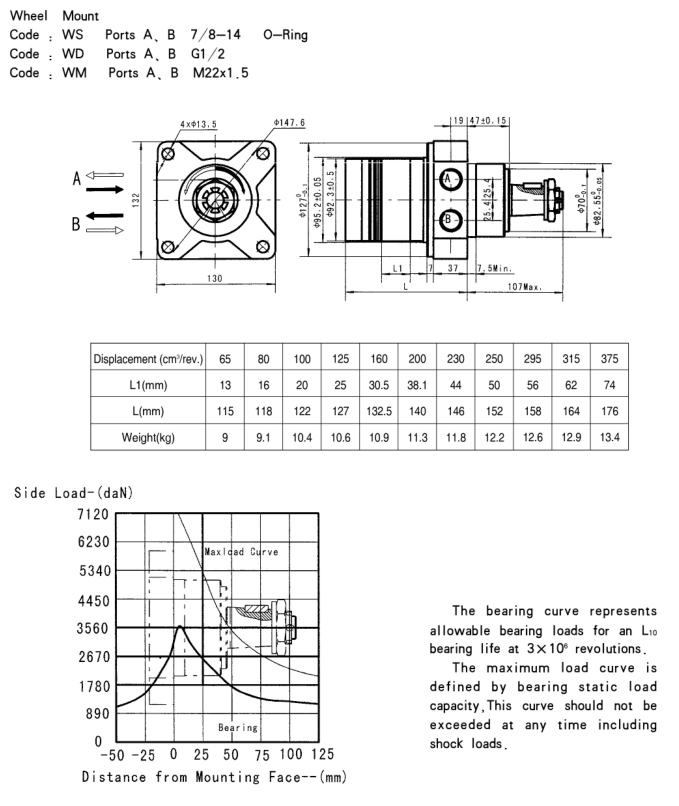

| Displacement (cm3/rev.) | 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 |
| L1(mm) | 13 | 16 | 20 | 25 | 30.5 | 38.1 | 44 | 50 | 56 | 62 | 74 |
| L(mm) | 115 | 118 | 122 | 127 | 132.5 | 140 | 146 | 152 | 158 | 164 | 176 |
| Weight(kg) | 9 | 9.1 | 10.4 | 10.6 | 10.9 | 11.3 | 11.8 | 12.2 | 12.6 | 12.9 | 13.4 |
