| Quantity: | |
|---|---|
BMK2-200-E2-S1-M
Xeriwell or Others
| Product: | Gerotor Hydraulic Motors | Model No.: | BMK2-200-E2-S1-M |
|---|---|---|---|
| Size: | 200 Ml/r | Rotation: | Clockwise |
| Highlight: | BMK2 Gerotor Hydraulic Motor,2K Gerotor Hydraulic Motor,2000 Gerotor Hydraulic Motor | ||

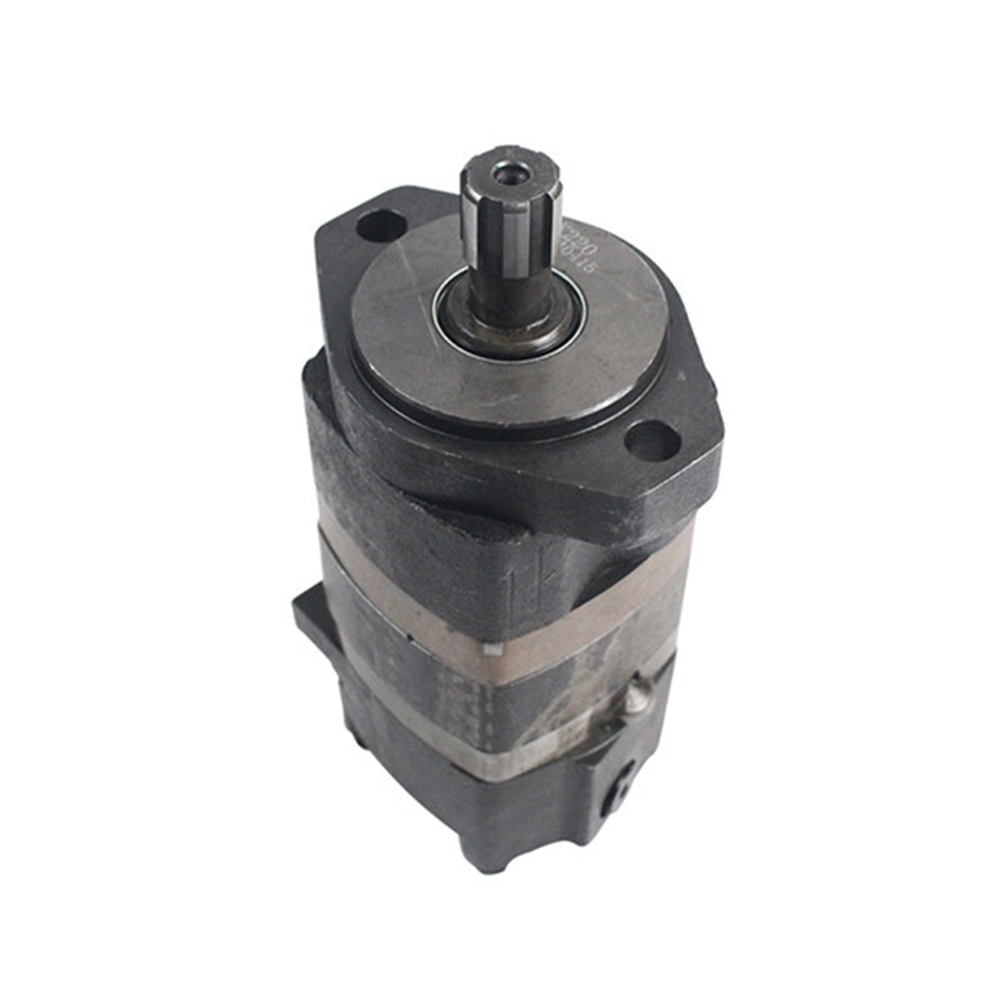

China Hydraulic Motor Factory Wholesale Gerotor Motor Geroler Motor, BMK2 / 2K／2000 Wholesale Good Price
Quick review:
BMK2 / 2K／2000 – Orbital Motors
Orbital Hydraulic Motor
Sizes: 65 to 475cc/rev
Max. Pressure up 210Bar
Model No.:
BMK2-200-E2-S1-M
Features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offer capacities
of high pressure and high torque in the wide of applications.
Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency
and long life, provide smooth and reliable operation.
The new series motor is suitable for vehicles with greater loads and pressure drop.
BMK2-200-E2-S1-M
Specification:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
The BMK2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
More BMK2 series to match Danfoss Eaton Charlynn drive motors
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 ( 119-)
