| Quantity: | |
|---|---|

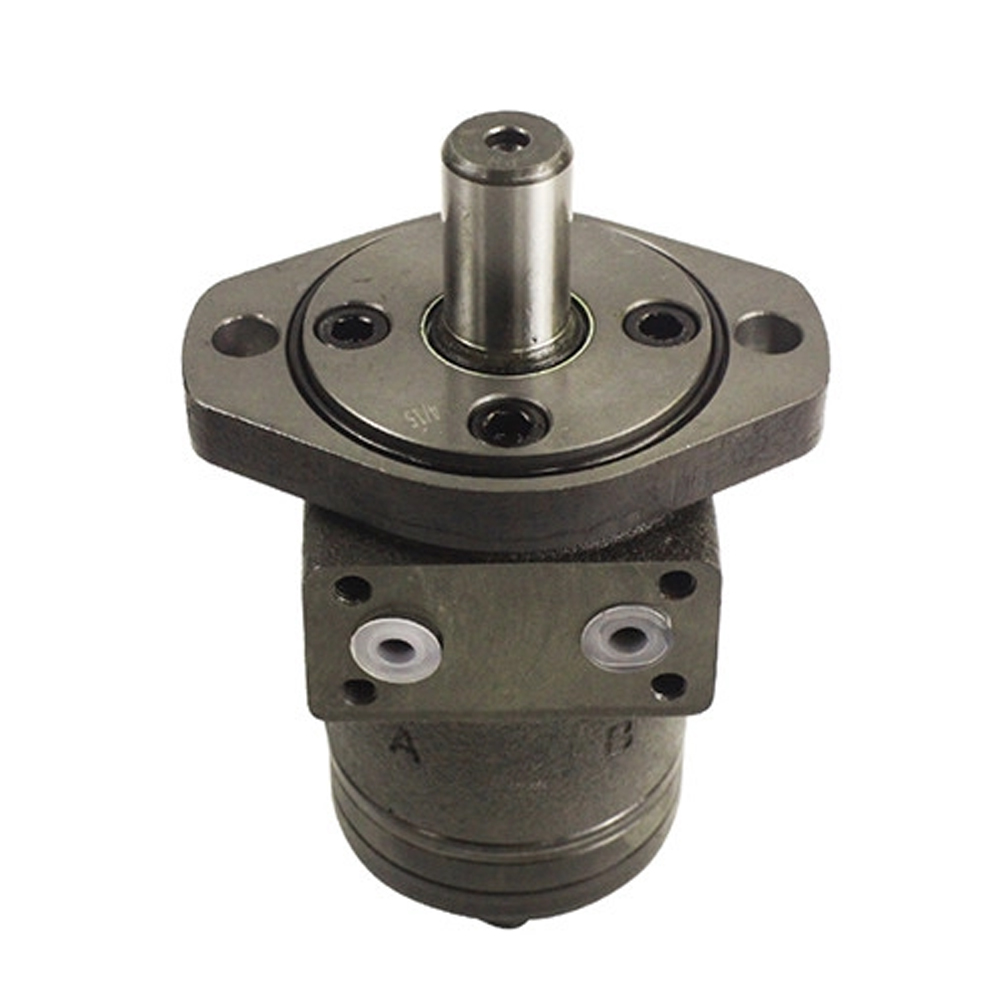

BMPH-82-H2-K-B4
Xeriwell or Others
| Item: | Hydraulic Motor | OEM #: | BMPH-82-H2-K-B4 |
|---|---|---|---|
| Displacement: | 80cc | Rotation: | CW |
| Highlight: | BMP Hydraulic Motor,Orbital Hydraulic Motor,China Hydraulic Motor | ||
China Hydraulic Motor Factory Direct Sale, Orbital Motors BMP/BMP/BMP Wholesale Super Value Offer
Orbital Motors
Low Speed, High Torque (LSHT) Motors
BMP / BMPH / BMPW Series
Xeriwell BMP series motors offer an economical alternative to more complex roller gerotor designs and still provide high efficiency across a wide performance range. BMP series motors have a compact, highly efficient design and come with a variety of displacements, mounts, shafts and port options, providing design flexibility. They are an ideal choice for light duty applications in either parallel or series systems. These low weight and advanced construction motors have three moving components (gerotor-star, drive, and shaft) making them an efficient and powerful motor in a compact package.
Model No.:
BMPH-82-H2-K-B4
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
| Item: | Hydraulic Motor | OEM #: | BMPH-82-H2-K-B4 |
|---|---|---|---|
| Displacement: | 80cc | Rotation: | CW |
| Highlight: | BMP Hydraulic Motor,Orbital Hydraulic Motor,China Hydraulic Motor | ||
China Hydraulic Motor Factory Direct Sale, Orbital Motors BMP/BMP/BMP Wholesale Super Value Offer
Orbital Motors
Low Speed, High Torque (LSHT) Motors
BMP / BMPH / BMPW Series
Xeriwell BMP series motors offer an economical alternative to more complex roller gerotor designs and still provide high efficiency across a wide performance range. BMP series motors have a compact, highly efficient design and come with a variety of displacements, mounts, shafts and port options, providing design flexibility. They are an ideal choice for light duty applications in either parallel or series systems. These low weight and advanced construction motors have three moving components (gerotor-star, drive, and shaft) making them an efficient and powerful motor in a compact package.
Model No.:
BMPH-82-H2-K-B4
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
