China BMP OMP 36 Orbital Hydraulic Motor Danfoss for Sale

Name: China BMP OMP 36 Orbital Hydraulic Motor Danfoss for Sale
Brand: Xeriwell or Others
Rating: 5.0 (69 reviews)

Pictures are for display only, please contact us to choose the right product for you.

China BMP OMP 36 Orbital Hydraulic Motor Danfoss Product Introduction

BMP Technical Data
Type		BMP BMPH BMPW 36
Geometric displacement(cm>/rev.		36
Max.speed (rpm)	cont.	1500
Max.speed (rpm)	int.	1650
Max.torque (N ·m)	cont.	55
	int.	76
	peak	96
Max.output (kW)	cont.	8.0
Max.output (kW)	int.	11.5
Max.pressure drop (MPa)	cont.	12.5
	int.	16.5
	peak	22.5
Max.flow (Lmin)	cont.	55
Max.flow (Lmin)	int.	60
Weight (kg)		5.6
Continuous pressure:Max.value of operating motor continuously Intemittent pressure:Max.vaue of operating motor in 6 seconds per minute. *Peak pressure:Max.value of operating motor in 0.6 second per minute.

BMP OMP 36 Orbital Hydraulic Motor catalogue pdf manual diagram

orbital motor assembly

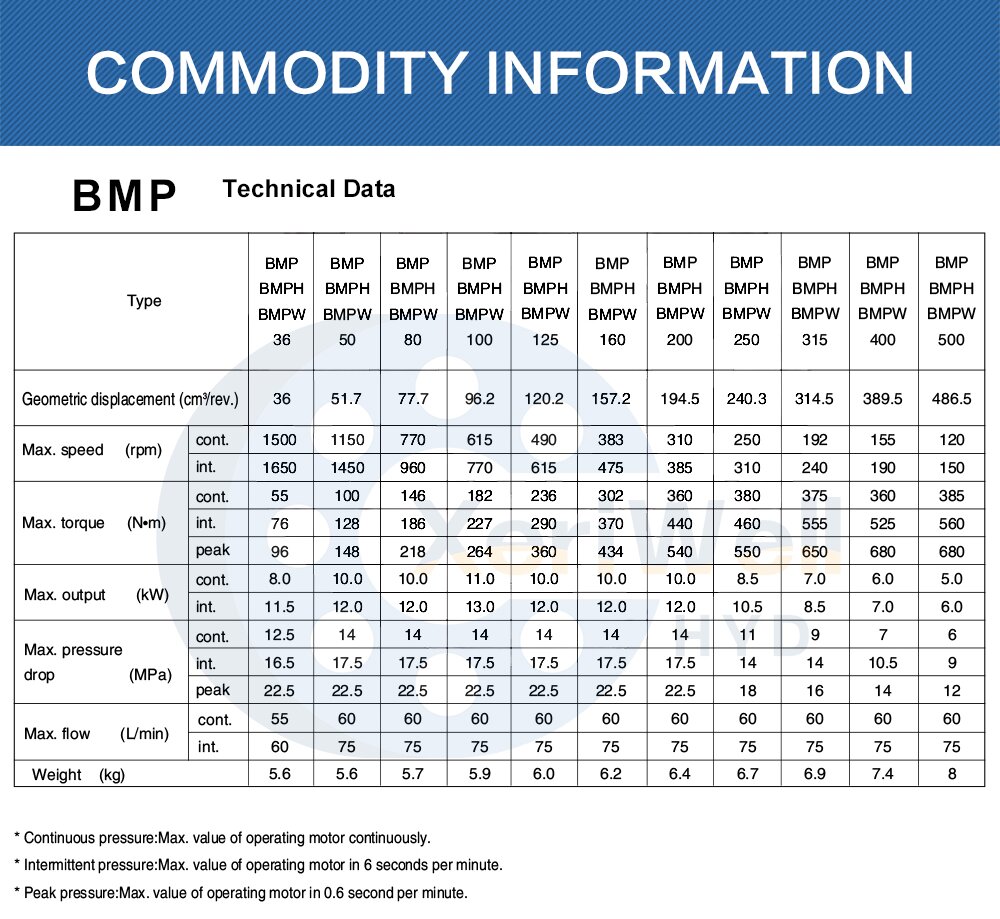

BMP Technical Data
BMP Technical Data
Type		BMP MPH BMPW 36	BMP MPH BMPW 50	BMP MPH BMPW 80	BMP MPH BMPW 100	BMP MPH BMPW 125	BMP MPH BMPW 160	BMP MPH BMPW 200	BMP MPH BMPW 250	BMP MPH BMPW 315	BMP MPH BMPW 400	BMP MPH BMPW 500
Geometric displacement (cm3/rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N•m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	6.7	6.9	7.4	8
* Continuous pressure:Max. value of operating motor continuously. * Intermittent pressure:Max. value of operating motor in 6 seconds per minute. * Peak pressure:Max. value of operating motor in 0.6 second per minute.
