| Quantity: | |
|---|---|
4000 series
Xeriwell or Others
| Item: | Disc Geroler Motor | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Clockwise | Flange: | 4 Bolts Standard Type |
| Shaft: | 31.75mm Spline Shaft 14teeth | Charlynn Code: | 109-1238-006 |
| Highlight: | 109-1238-006 char lynn motor,disc geroler char lynn motor,109-1238-006 eaton char lynn hydraulic motor | ||

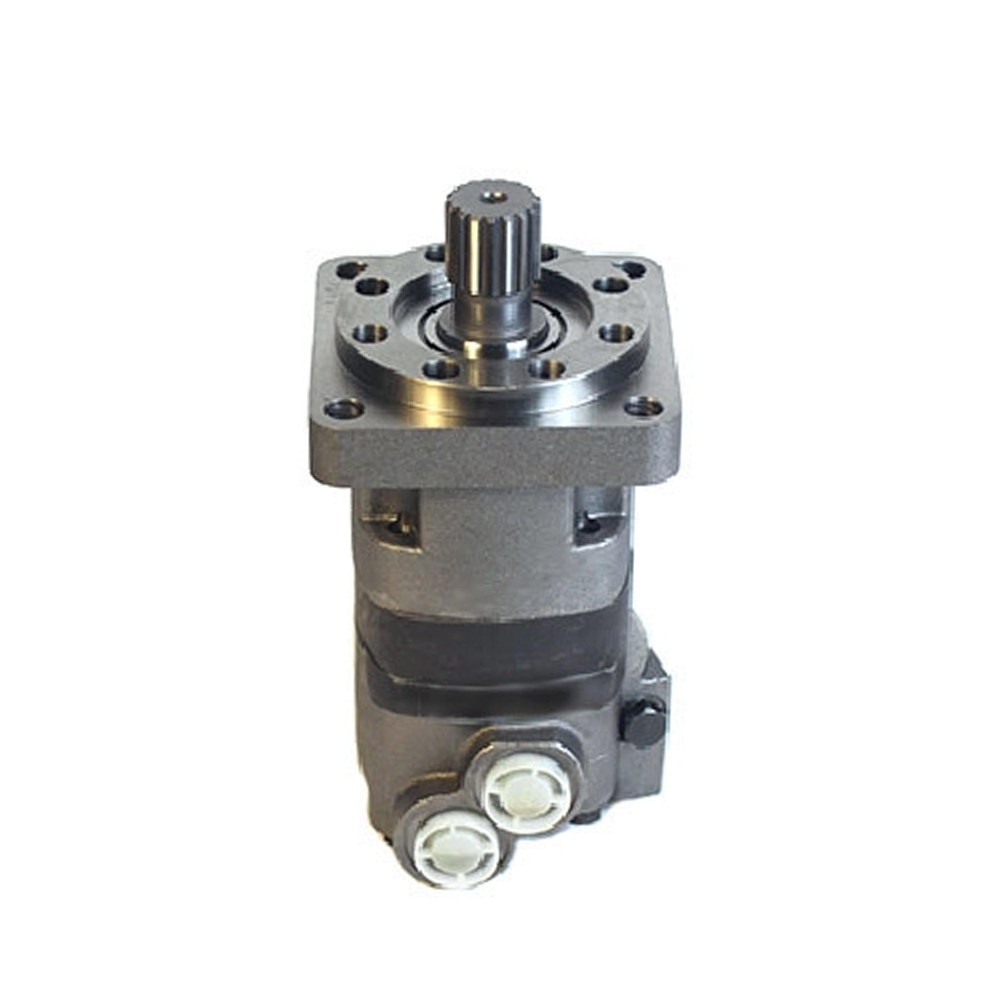

charlynn hydraulic pump motor 109-1238-006 aftermarket geroler motor SAE B mounting flange 31.75mm spline shaft 14T
Xeriwell technology supply the replacement charlynn motor BMK4 series motor
Product details:
| Application: Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products |
| Brake type: Hydraulic |
| flow options: ..5625-18 UNF-2B SAE O-RING PORT WITH SHUTTLE |
| Displacement: 492.6 cubic centimetre per revolution |
| Geroler options: Standard |
| Description: Low-Speed Gerotor/Geroler |
| Identification: None |
| Intermittent pressure: 170 bar |
| Low pressure relief: None |
| Maximum speed: 191 revolutions per minute |
| Model Code: M04099AB03AA01000000001000000F |
| Mounting Type: Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle. (SAE B) |
| Output shaft type: 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD |
| Paint: Primer Low Gloss Black |
| Port type: .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS |
| Pressure flow option: None |
| Product height: 4.72 |
| Product height uom: inch |
| Product length: 12.87 |
| Product length uom: inch |
| Product material: Cast Iron |
| Product trade name: 4000 Series |
| Product weight: 48.00 |
| Product weight uom: pound |
| Product width: 4.72 |
| Product width uom: inch |
| Recommended system working temperature: -34°C to 82°C |
| Seal options: Standard |
| Shaft options: None |
| Special assembly instructions: None |
| Special features hardware: None |
| Speed sensor: No |
| Sub brand: Xeriwell |
| Torque: 945 newton metre |
| Two speed ratio: None |
| Valve options: None |
| Viscosity recommendation: 70 Saybold universal second |
Here are examples we make 109- series motors , motor models contact us to get
| 109-1001-006 | 109-1100-006 | 109-1155-006 | 109-1212-006 | 109-1278-006 |
| 109-1002-006 | 109-1101-006 | 109-1156-006 | 109-1215-006 | 109-1280-006 |
| 109-1003-006 | 109-1102-006 | 109-1157-006 | 109-1220-006 | 109-1286-006 |
| 109-1006-006 | 109-1103-006 | 109-1158-006 | 109-1224-006 | 109-1287-006 |
| 109-1008-006 | 109-1104-006 | 109-1159-006 | 109-1225-006 | 109-1293-006 |
| 109-1011-006 | 109-1105-006 | 109-1160-006 | 109-1227-006 | 109-1295-006 |
| 109-1012-006 | 109-1106-006 | 109-1173-006 | 109-1231-006 | 109-1296-006 |
| 109-1013-006 | 109-1107-006 | 109-1184-006 | 109-1233-006 | 109-1304-006 |
| 109-1052-006 | 109-1108-006 | 109-1185-006 | 109-1234-006 | 109-1305-006 |
| 109-1053-006 | 109-1109-006 | 109-1189-006 | 109-1236-006 | 109-1309-006 |
| 109-1054-006 | 109-1110-006 | 109-1190-006 | 109-1238-006 | 109-1311-006 |
| 109-1055-006 | 109-1111-006 | 109-1191-006 | 109-1245-006 | 109-1314-006 |
| 109-1056-006 | 109-1112-006 | 109-1192-006 | 109-1246-006 | 109-1316-006 |
| 109-1057-006 | 109-1113-006 | 109-1193-006 | 109-1247-006 | 109-1317-006 |
| 109-1059-006 | 109-1114-006 | 109-1194-006 | 109-1248-006 | 109-1318-006 |
| 109-1061-006 | 109-1115-006 | 109-1195-006 | 109-1252-006 | 109-1337-006 |
| 109-1062-006 | 109-1116-006 | 109-1196-006 | 109-1254-006 | 109-1339-006 |
| 109-1063-006 | 109-1117-006 | 109-1203-006 | 109-1260-006 | 109-1363-006 |
| 109-1064-006 | 109-1118-006 | 109-1204-006 | 109-1263-006 | 109-1450-006 |
| 109-1065-006 | 109-1119-006 | 109-1207-006 | 109-1264-006 | 109-1453-006 |
| 109-1087-006 | 109-1120-006 | 109-1208-006 | 109-1267-006 | 109-1543-006 |
| 109-1094-006 | 109-1154-006 | 109-1211-006 | 109-1269-006 | 109-1092-006 |
