  • BMPH / Char Lynn H Series

  • Xeriwell or Others

Product Name: BMPH315 Displacement: 315CC
Speed: 190/240rpm Torque: 375/555N.M
Shaft Size: 25.4mm/1inch Weight: 7kgs
Highlight:

BMPH315 motor

,

315CC high torque high rpm motor

,

25.4mm high torque high rpm motor


Charlynn H Series Medium Motor 1 in. Straight w/.40 Dia. Crosshole SAE 4 flange high torque high rpm motor


Product details:

type BMPH
displacement 315cc

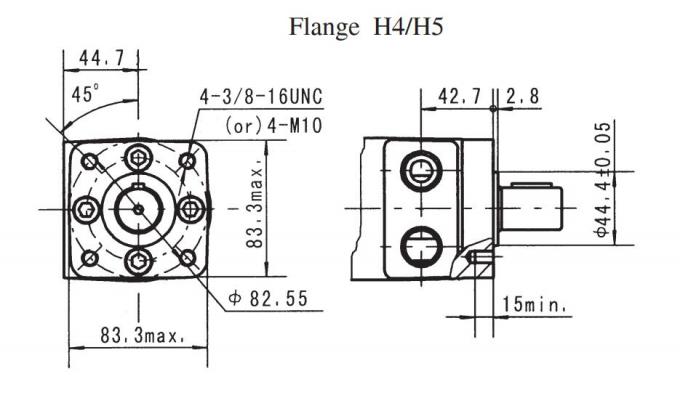

flange: 4-3/8-16 Square-flange , pilot Ø 44.4 2.8

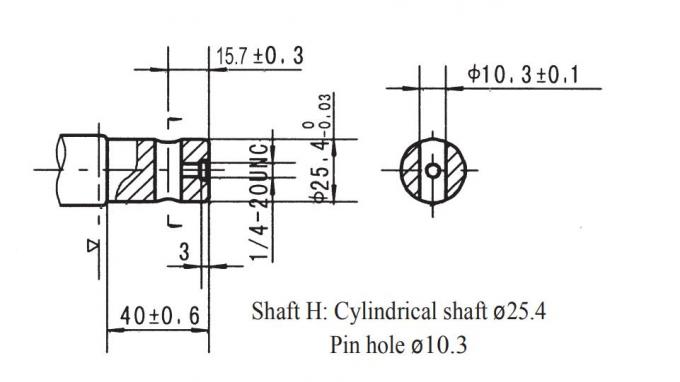

shaft Shaft Ø25.4, cylindrical shaft with pin holeφ10.3/0.406"
oil port 1/2-14 NPTF, 7/16-20UNF


A hydraulic motor is essentially a hydraulic pump in reverse. It has one or more pistons that move in a cylinder, with valves and timing, rather like an internal combustion engine powered by compressed air.


Main advantages are that the "motor" itself is quite small, and generates little heat compared to an electric motor. Also, this is a high torque but low speed shaft, so there's no need for a gearbox in situations where an electric motor would need a gearbox.


Characteristic features:
  • Smooth running over the entire speed range

  • Constant operating torque over a wide speed range

  • High starting torque

  • High return pressure without the use of drain line (High pressure shaft seal)

  • High efficiency

  • Long life under extreme operating conditions

  • Robust and compact design

  • High radial and axial bearing capacity

  • For applications in both open and closed loop hydraulic systems

  • Suitable for a wide variety of hydraulics fluids


--650-650


Applications:

• Agricultural augers, harvesters, seeders
• Car wash brushes
• Food processing
• Railroad maintenance equipment
• Machine tools
• Conveyors
• Industrial sweepers and floor polishers
• Saw mill works
• Turf equipment
• Concrete and asphalt equipment
• Skid steer attachments
• Many more


We are professional manufacturer produce Hydraulic Orbital Motors,our motors match and Char Lynn and M+S and Brevini motor series,we have the most completely range of hydraulic motors from China
