BMPH
Xeriwell or Others
| Model No.: | BMPH100 | Displacement: | 100cc |
|---|---|---|---|
| Speed: | 615/770rpm | Torque: | 182/227 Nm |
| Max Power: | 11/13KW | Max Flow: | 60/75LPM |
| Highlight: | Low Speed Gerotor Motor,101-1857-009 Gerotor Motor,High Torque Gerotor Motor | ||

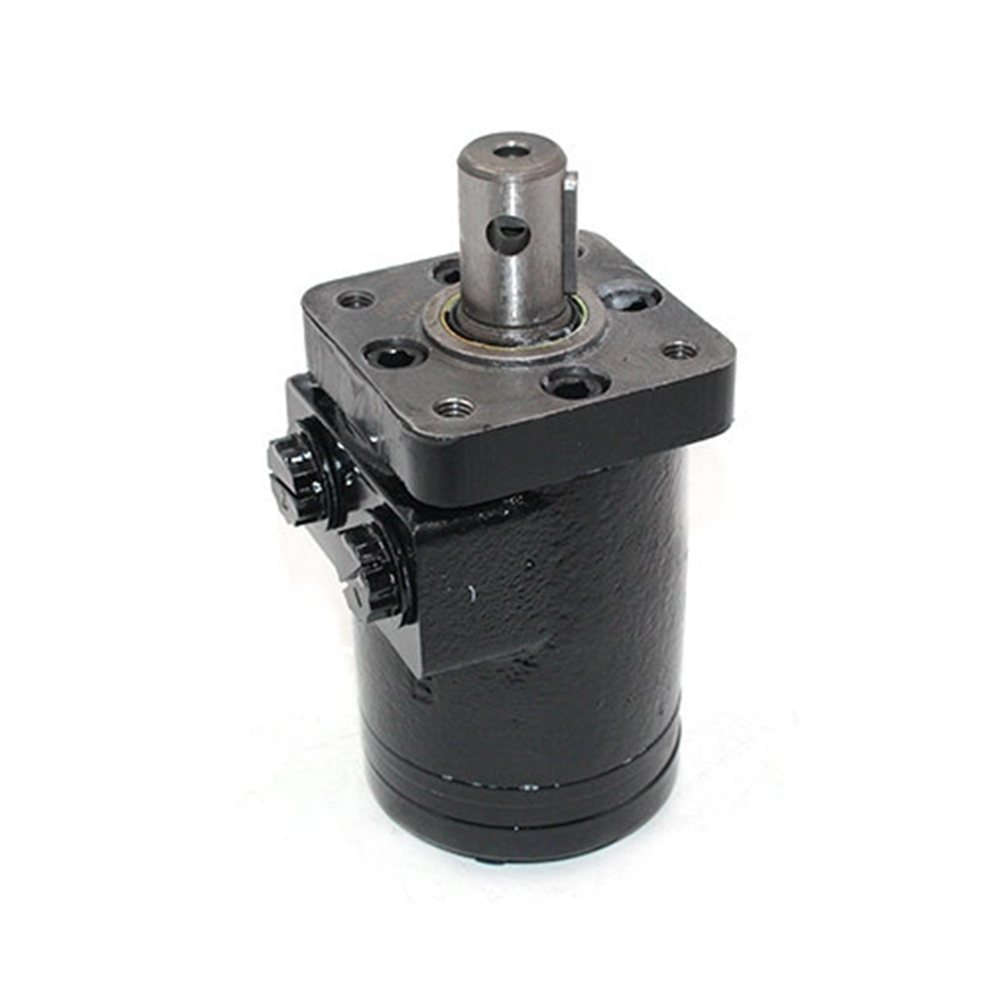

Charlynn H Series Low Speed, High Torque (LSHT) Gerotor Spool Motor 101-1857-009
Xeriwell Technology supply the BMPH series motors, code BMPH-40-H4-RH-S, matching Eaton charlynn H series 101-1857-009
with needle bearing , high torque motor
Details:
- Displacement: 100cc

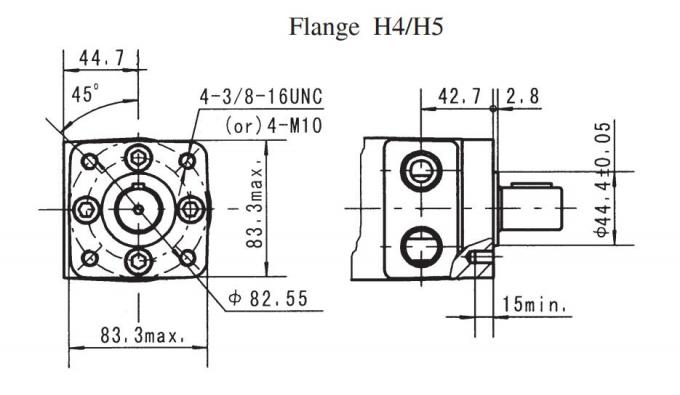

- Flange H4 Ø82.55mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35,with crosshole ∅10.3
- Ports: 7/8-14 o-ring (A & B), 7/16-20 UNF (T)
| Geometric displacement (cm3/rev.) | 100cc | |
| Max. speed (rpm) | cont. | 615 |
| int. | 770 | |
| Max. torque (N•m) | cont. | 182 |
| int. | 227 | |
| peak | 264 | |
| Max. output (kW) | cont. | 11.0 |
| int. | 13 | |
| Max. pressure drop(MPa) | cont. | 14 |
| int. | 17.5 | |
| peak | 22.5 | |
| Max. flow (L/min) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 5.9 | |
Other types we supply
| 101-1835 | 101-1843 | 101-1848 | 101-1854 | 101-1861 | 101-1865 |
| 101-1836 | 101-1497 | 101-1466 | 101-1311 | 101-1313 | 101-1305 |
| 101-1837 | 101-1844 | 101-1849 | 101-1855 | 101-1862 | 101-1866 |
| 101-1838 | 101-1449 | 101-1459 | 101-1856 | 101-1312 | 101-1306 |
| 101-1839 | 101-1352 | 101-1850 | 101-1857 | 101-1314 | 101-1307 |
| 101-1840 | 101-1845 | 101-1851 | 101-1858 | 101-1863 | 101-1867 |
| 101-1841 | 101-1846 | 101-1852 | 101-1859 | 101-1864 | 101-1868 |
| 101-1842 | 101-1847 | 101-1853 | 101-1860 | 101-1315 | 101-1869 |
