| Quantity: | |
|---|---|
BMPHX-050-H2-K-S-TRB
Xeriwell or Others
| Item: | Hydraulic Spool Valve Motor | OEM #: | BMPHX-050-H2-K-S-TRB |
|---|---|---|---|
| Displacement: | 50cc | Flange: | 2-Bolt |
| Shaft Size: | 1" Shaft With Woodruff Key | Port: | 7/8-14 O-ring |
| Highlight: | 50ml/R hydraulic orbit motor,BMPH-50 hydraulic orbit motor,Charlynn Eaton H Series orbit motor | ||

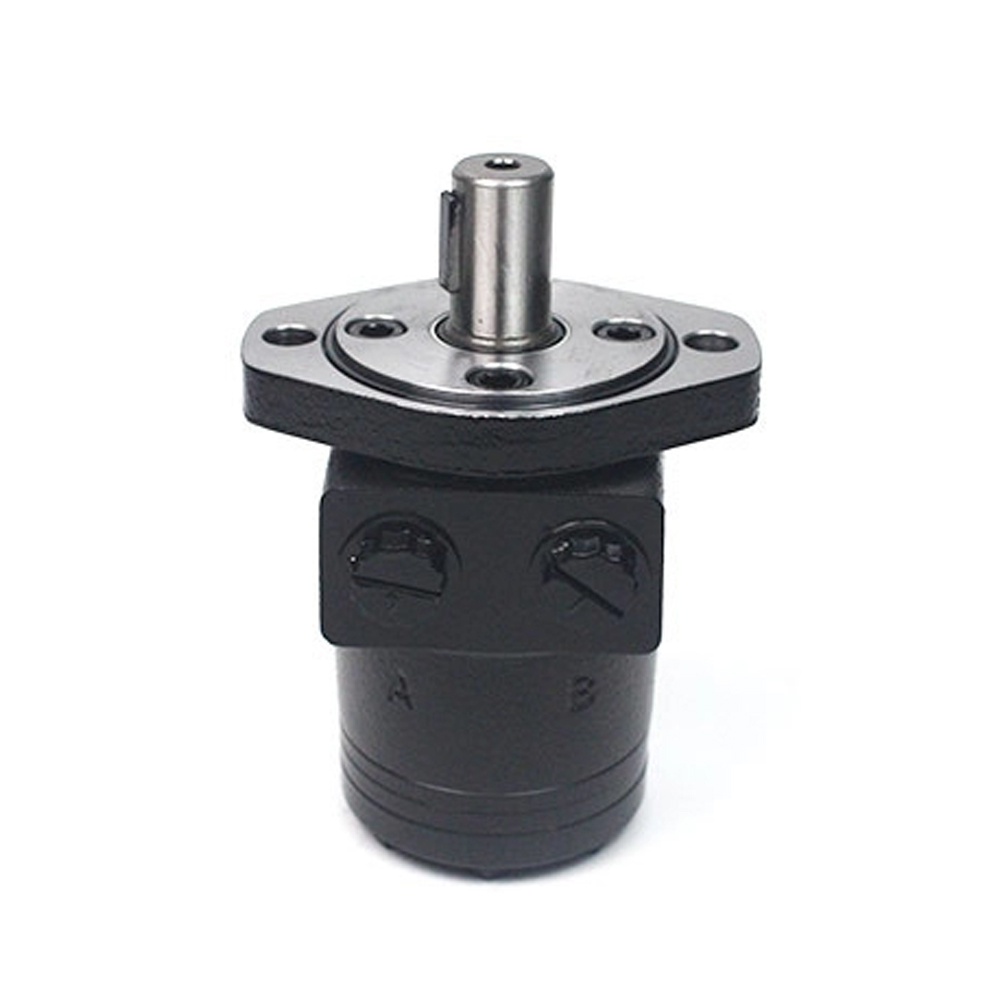

charlynn Eaton H series BMPH-50 Hydraulic Motor 50ml/R 2 Bolt Flange 1'' Shaft, high pressure seals
Quick review:
Item , Hydraulic Motor
Direction , Left and right
OEM #, BMPHX-050-H2-K-S-TRB
Displacement , 50cc
Flange , 2-Bolt
Shaft Size , 1" shaft with woodruff key
Port , 7/8-14 O-ring
Speed , 1150 - 1450 rpm
Torque , 100 - 148 Nm
Max Flow , 60 - 75 Lpm
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
