| Quantity: | |
|---|---|
4000 series
Xeriwell or Others
| Item: | Hydro Motor | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Clockwise | Flange: | 4 Bolts Standard Type |
| Shaft: | 31.75mm Spline Shaft 14teeth | Charlynn Code: | 109-1118-006 |
| Highlight: | 4-200ACAS-F9128 char lynn hydraulic motor,4k char lynn hydraulic motor,4k charlynn motor | ||

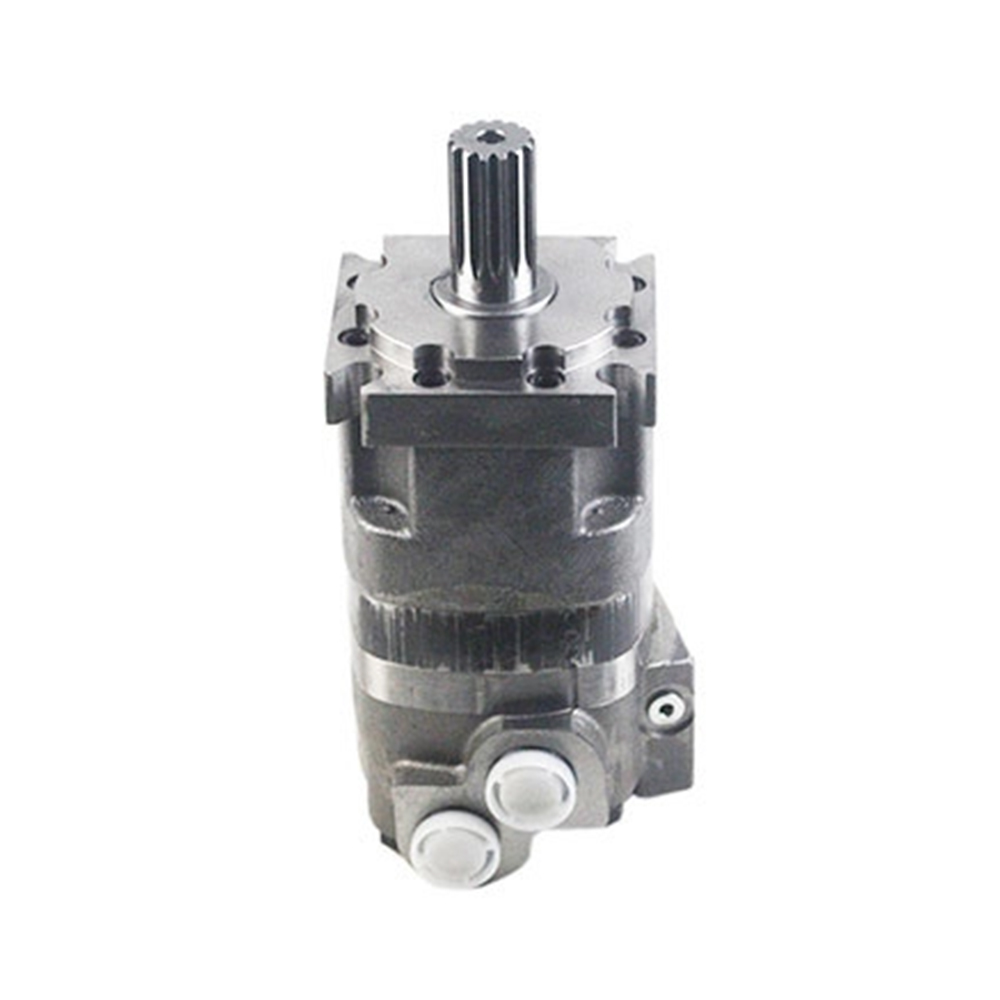

Charlynn 4k motor HD712-06001 HYDRAULIC MOTOR 4-200ACAS-F9128
Xeriwell technology supply the BMK4 series motor used on Ingersoll Rand & Furukawa equipments
same specification, OEM quality ,fair price
HD712-06001
Hydraulic Rotation Motor (Eaton 4-200ACAS-F9128)
used on HCR 12S
Product details:
| Application: hydraulic hammer drill |
| Brake type: Hydraulic |
| Displacement: 205.5 CM3/R [12.54 IN3/R] |
| Geroler options: Standard |
| Description: Low-Speed Gerotor/Geroler |
| Identification: None |
| Intermittent pressure: 170 bar |
| Low pressure relief: None |
| Maximum speed: 191 revolutions per minute |
| Model Code: M04099AB03AA01000000001000000F |
| Mounting Type: Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle. (SAE B) |
| Output shaft type: 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD |
| Paint: Primer Low Gloss Black |
| Port type: .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS |
| Pressure flow option: None |
| Product height: 4.72 |
| Product height uom: inch |
| Product length: 12.87 |
| Product length uom: inch |
| Product material: Cast Iron |
| Product trade name: 4000 Series |
| Product weight: 48.00 |
| Product weight uom: pound |
| Product width: 4.72 |
| Product width uom: inch |
| Recommended system working temperature: -34°C to 82°C |
| Seal options: Standard |
| Sub brand: Xeriwell |
