| Quantity: | |
|---|---|
BMK2-400WEBDBB
Xeriwell or Others
| Type: | Hydraulic Drive Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2-400WEBDBB | Size: | 400 Ml/r |
| Replace: | Char-lynn 2000 Series | Flange: | 4-hole Wheel Flange |
| Shaft: | 32mm Parrel Key | Oil Port: | G 1/2 |
| Drain : | G 1/4 | Application: | Any Place Need Hydraulic Drive |
| Highlight: | heavy duty hydraulic motor,large hydraulic motor | ||

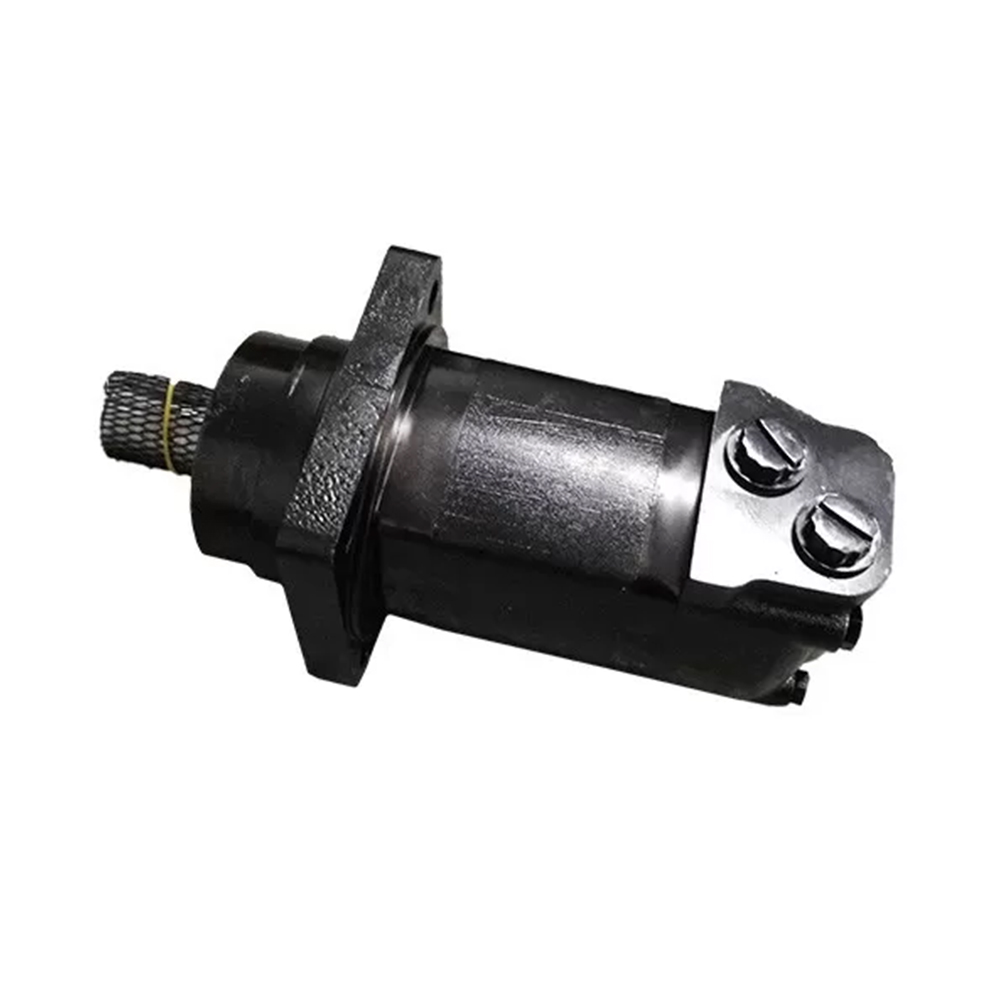

Char-lynn 2000 Hydraulic Wheel Motor Replacement BMK2-400-WE-BDBB
Xeriwell BMK2 = CHAR-LYNN 2000
BMK2 Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for medium duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4000 psi. Max dynamic side load capability is 3600 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a drain. Dependability is based on high quality design and manufacturing.
BMK2-400-WE-BDBB
| 1, | model number | BMK2-400-WE-BDBB |
| 2, | displacement | 400 ml/r |
| 3, | flange | 4 - hole wheel mounting |
| 4, | shaft | 32 mm straight shaft, parrel key |
| 5, | oil port | G 1/2 |
| 6, | drain | G 1/4 |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Char-lynn 2K |
Market we serve:
• Turf Equipment
• Aerial
• Agriculture Machinery
• Construction Equipment
• Factory Automation
• Material Handling Equipment
• Oil & Gas
• Forestry Equipment
• Mining
Features/Benefits:
• Robust construction for longer life
• Continuous oil flow across internal splines for longer life
• Superior side load capacity
• Smooth, extra low speed operation
• High pressure shaft seal is standard
• Innovative design eliminates the need for a drain
• Dependability based on high quality design and manufacturing
• Designed and manufactured in Greeneville, TN USA
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
| 主要技术参数 Main Specification | ||||||||||||
| 类型Type | BMK2 65 | BMK2 80 | BMK2 100 | BMK2 125 | BMK2 160 | BMK2 200 | BMK2 250 | BMK2 315 | BMK2 400 | BMK2 475 | ||
| 排量 Disp. | (cm3/rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| 最高转速 Max. speed | (rpm) | 连续 | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| 断续 | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | ||
| 最大扭矩 Max. torque | (N•m) | 连续 | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| 断续 | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | ||
| 最高工作压差 Max. pressure drop | (MPa) | 连续 | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| 断续 | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | ||
| 峰值 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | ||
| 最大流量 Max. flow | (L/min) | 连续 | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| 断续 | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | ||
| 重量 weight | (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure:Max.value of operating motor continuously . * Intermittent pressure:Max.value of operating motor in 6 seconds per minute . * Peak pressure:Max.value of operating motor in 0.6 second per minute . | ||||||||||||
