| Quantity: | |
|---|---|
BMK2-80
Xeriwell or Others

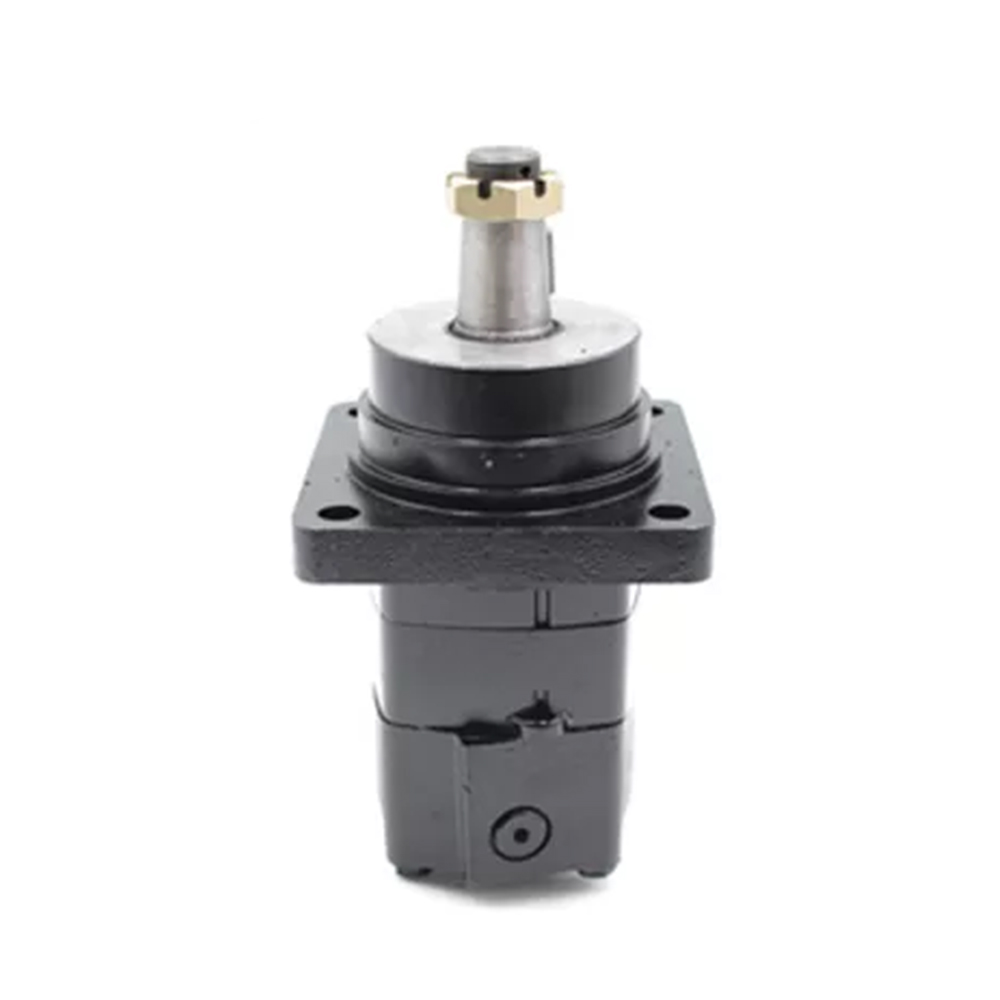

| Item: | High Torque Low Speed Motor | Model: | 105-1308-006 |
|---|---|---|---|
| Size: | 80cc | Brand: | Xeriwell |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||
Xeriwell Manufacturing offers original quality or OEM replacement motor for Eaton, Parker, Danfoss, White, Ross, TRW, Brivini
Xeriwell motors with the following Features and benefits include:
Robust construction for longer life
Continuous oil flow across internal splines for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal as standard
Innovative design eliminates the need for a drain
Roller vanes and sealed commutator maintain high efficiency
and provide smooth low speed performance.
Hydraulic Motors
Xeriwell has a complete selection of hydraulic motors to fill your requirements. Low speed high torque motors from Xeriwell Technology, 2 bolt, 4 bolt and wheel drive versions are standard. Keyed or spline shafts are standard as are SAE or NPT ports and displacements from 8cc to 1000cc. directly interchangeable with the leading industry brands.
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
| EATON | 104-3358-006 |
| EATON | 104-1029-006 |
| EATON | 104-1035-006 |
| EATON | 104-1422-006 |
| EATON | 104-3001-006 |
| EATON | 104-3130-006 |
| EATON | 105-1308-006 |
| EATON | 105-1411-006 |
| EATON | 101-1028 |
| EATON | 101-1030 |
| EATON | 101-1032 |
| EATON | |
| EATON | 104-1027 |
| EATON | 104-1028 |
| EATON | 104-1228 |
| EATON | 104-1068 |
| EATON | 104-1015 |
| EATON | 104-1017 |
| EATON | |
| EATON | 112-1068 |
| EATON | |
| EATON | 119-1030 |
| EATON | 119-1031 |
