| Quantity: | |
|---|---|
BMK4 motor
Xeriwell or Others
| Displacement: | 160cc | Max.speed(rpm): | Cont.560rpm/int.670pm |
|---|---|---|---|
| Max.torque(N.m): | Cont.450N.m/int.680N.m | Max.pressure Drop: | Cont.20Mpa/int.31Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | char lynn 4000 series,Char Lynn Engine 4000 Series,119-1116-006 | ||

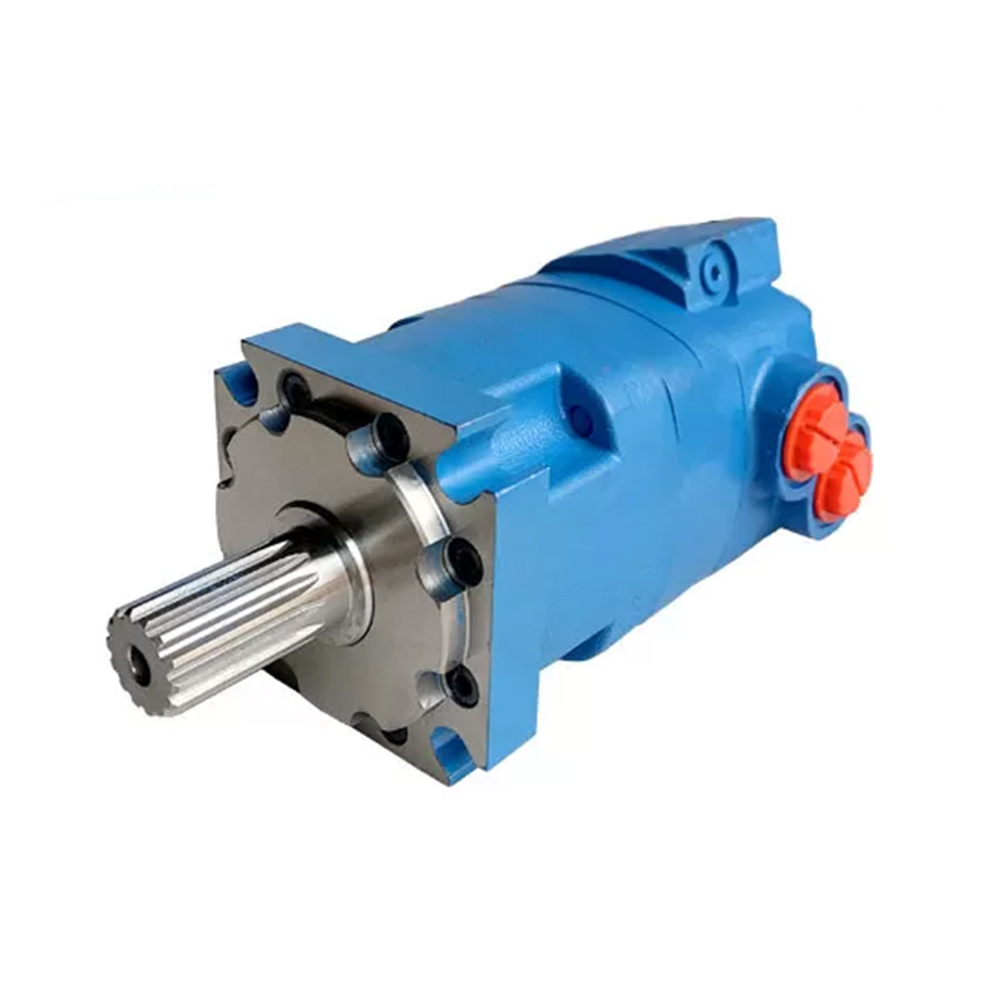

Char-Lynn Engine 4000 Series 119-1116-006,4 Bolt SAE-B Square Mount, 1-1/4″ 14ft Tooth Spline Shaft With High Seal Kits
Product details
Displacement - 9.8 cu in
Mounting - SAE-B standard mounting
Shaft - 1 1/4" splined shaft
Ports - 1 1/16" -12 UN-2B SAE O-RING PORTS
Max Speed - 560 rpm (cont) / 670 rpm (interm)
Flow - 95 gpm (cont) / 115 gpm (interm)
Torque - 450N.m (cont) / 680N.m (interm)
Pressure - 205bar (cont) / 310bar (interm)
Xeriwell disc valve motors allow higher flows and higher pressures than spool valve motors,
resulting in higher torques and efficiencies. All are available in standard mount, wheel mount,
or bearingless configurations with many shaft and port options and speed sensors to meet a
broad range of application requirements. Xeriwell disc valve motors deliver unrivalled quality
and are supported by manufacturing systems that ensure on time delivery.
Main specification
| TYPE | BMK4 | BMK4 200 | BMK4 250 | BMK4 | BMK4 | BMK4 | |
| Displacement(ml/r) | 159.2 | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | |
| Max.speed(rpm) | cont. | 560 | 440 | 300 | 234 | 188 | 155 |
| int. | 670 | 535 | 450 | 351 | 282 | 232 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 20 |
| int. | 30 | 30 | 30 | 30 | 30 | 27.5 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 30 | |
| Max.Torque(N.m) | cont. | 450 | 565 | 710 | 920 | 1160 | 1445 |
| int. | 680 | 855 | 1080 | 1325 | 1625 | 1880 | |
| Max.Flow(cont.)(L/min) | cont. | 95 | 95 | 150 | 150 | 150 | 150 |
| int. | 115 | 115 | 205 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.5 | 26.8 | 27.3 | 28 | 28.8 | |
Other types of BMK4 crossing number
| Part Number | Displacement cm³/rev (in⊃3;/rev) |
| 109-1115-006 | 130 (7.9) |
| 109-1116-006 | 160 (9.9) |
| 109-1117-006 | 205 (12.5) |
| 109-1118-006 | 245 (15) |
| 109-1119-006 | 310 (19) |
| 109-1120-006 | 395 (24) |
APPLICATIONS:
Mobile equipment
Snow Removal, mowing
Spayer, trencher
Wood products
Material Handling Equipment
Oil & Gas
Forestry Equipment
Mining
Xeriwell, providing a wide range of hydraulic power services, products and system solutions, as well as our own series of hydraulic motors and hydraulic valves. Our main advantage is that we provide services and solutions for all hydraulic product types and systems. We recognize the importance of machine uptime and are committed to providing lasting quality service.
We have a good reputation in hydraulic design and manufacturing, and are equipped with some of the most popular skills and machinery. Our dedicated engineering and design have produced various hydraulic products, and we have the most complete and best quality hydraulic motors in China. We have been recognized by customers with competitive prices and services, and are always willing to make more efforts to meet the urgent needs of customers.
XeriWell is a dedicated provider of hydraulic products, specializing in hydraulic motors, pumps, components, and complete hydraulic systems. Positioned as a trusted supplier to the global market, we focus on delivering innovative and reliable hydraulic solutions that meet the highest standards. With a commitment to serving clients worldwide, XeriWell provides tailored solutions that address the unique hydraulic needs of any region, supporting industries with high-quality, dependable performance.
At XeriWell, we bring extensive expertise to the hydraulic industry, grounded in a deep understanding of industry standards and certifications that ensure top-quality products and services. Our team of specialized hydraulic engineers is well-versed in international standards, rigorously following certifications and guidelines to meet diverse market requirements. With an average of over 10 years of experience, our professionals have the knowledge to handle complex projects and offer fully customizable solutions.
XeriWell offers a comprehensive range of hydraulic products, including hydraulic motors, pumps, components, complete hydraulic systems, and various other hydraulic parts to meet diverse industry needs. In addition to our extensive product line, we provide tailored hydraulic system solutions, designed to meet each client's unique specifications. Our customization services save clients valuable time by eliminating the need to source multiple suppliers, delivering fully integrated and efficient solutions for their hydraulic applications.
XeriWell's core competitive advantage lies in our technical expertise. Unlike standard suppliers, we are a technology-driven company focused not only on sourcing high-quality hydraulic products but also on offering strategic guidance and expert recommendations to our clients. This technical strength, combined with our comprehensive product range and customization capabilities, allows us to deliver hydraulic solutions that truly add value and meet the specific needs of a global clientele.
At XeriWell, our vision is to be a leading global provider of innovative and reliable hydraulic solutions that drive industry progress and customer success. We are committed to excellence, integrity, and customer-centric service, valuing strong partnerships and continuous improvement. Our goal is to empower our clients by delivering high-quality, tailored solutions that meet evolving industry demands, fostering a future where hydraulic technology is seamlessly integrated, efficient, and sustainable for all.
At XeriWell, we offer a comprehensive range of hydraulic components, including hydraulic motors, pumps, accessories, valves and more, with options for both original and high-quality domestic alternatives. Backed by a robust supply chain, we are able to meet the vast majority of our clients'procurement needs, from standard models to non-standard and even discontinued products. Additionally, we provide fully customized services and solutions tailored to specific requirements, ensuring clients receive precisely the products and configurations needed for optimal performance. Our commitment to flexibility and reliability makes XeriWell a trusted partner for all hydraulic sourcing and customization needs.
