| Quantity: | |
|---|---|
BMK6-500-WT1SF5
Xeriwell or Others
| Item: | Hydraulic Motor | Type: | Orbit Motor |
|---|---|---|---|
| Direction: | Left And Right | Displacement: | 490cc |
| OEM #: | Char-lynn 112-1075 | Alternative #: | BMK6-500-WT1SF5 |
| Highlight: | Hydraulic Geroler Disc Valve Motor,Hydraulic Orbit Motor | ||

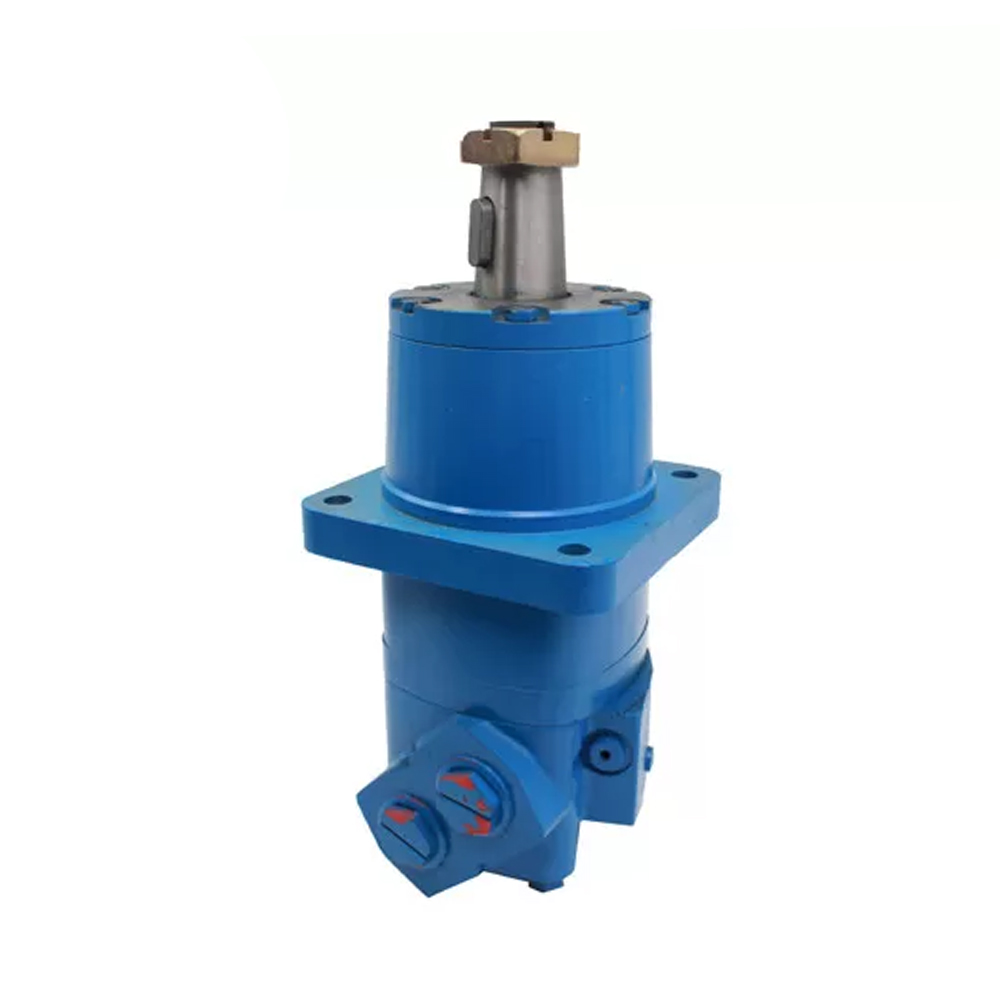

Char-Lynn (Eaton) 112-1075-490 Hydraulic Geroler Disc Valve Motor - 6000 - Wheel, similar type
Specifications:
| Series | 6000 - Standard |
| Displacement | 500 cm³/r |
| Mounting Type | 4-Bolt Wheel Flange |
| Output Shaft Size | 45mm 1:8 tapper, flat key 11.13x11.13x31.75 |
| Port size | 1-5/16-12UN |
| Drain port size | 7/16-20UNF |
Over View:
8 displacements available
Presents a multitude of options that make this motor very smart and flexible to apply
Very tough motor for demanding applications
Can be used in a multitude of industries
Very easy/flexible to integrate in a system
Applications: Mobile equipment, snow removal, mowing, sprayer, trencher and wood products
Technical details:
BMK6-500-WT1SF5
| TYPE | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | |
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
Eaton similar type motors are available we belows:
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 (119-)
These similar type Eaton motors are with following advantages:
same perofrmance as Eaton Char-lynn
complete model series
meet your requirement on quality
meet your requirement on price
guarranty 100% qualified motors
warranty terms as below
generally we do not stock inventory, but sometimes we do have some stock, so contact us to ask if you need a urgent shipment
fast delivery (bulk order production time 25 - 35 days)
Warranty:
Warranty service is also provided based on following conditions:
12 months from the date of commission OR
13 months from the date of delivery to the purchaser OR
1000 operating hours
