119-1028-003
Xeriwell or Others
| Item: | Motor Geroler | Model: | 119-1028-003 |
|---|---|---|---|
| Size: | 343.8 CM3/R [20.98 IN3/R] | Mounting: | Standard, 4 Bolt |
| Shaft: | 57.15 Mm Straight Shaft | Pilot: | 1.3125-12 UN-2B SAE O-RING |
| Highlight: | char lynn geroler motor,119-1028-003 geroler motor,danfoss geroler hydraulic motor | ||

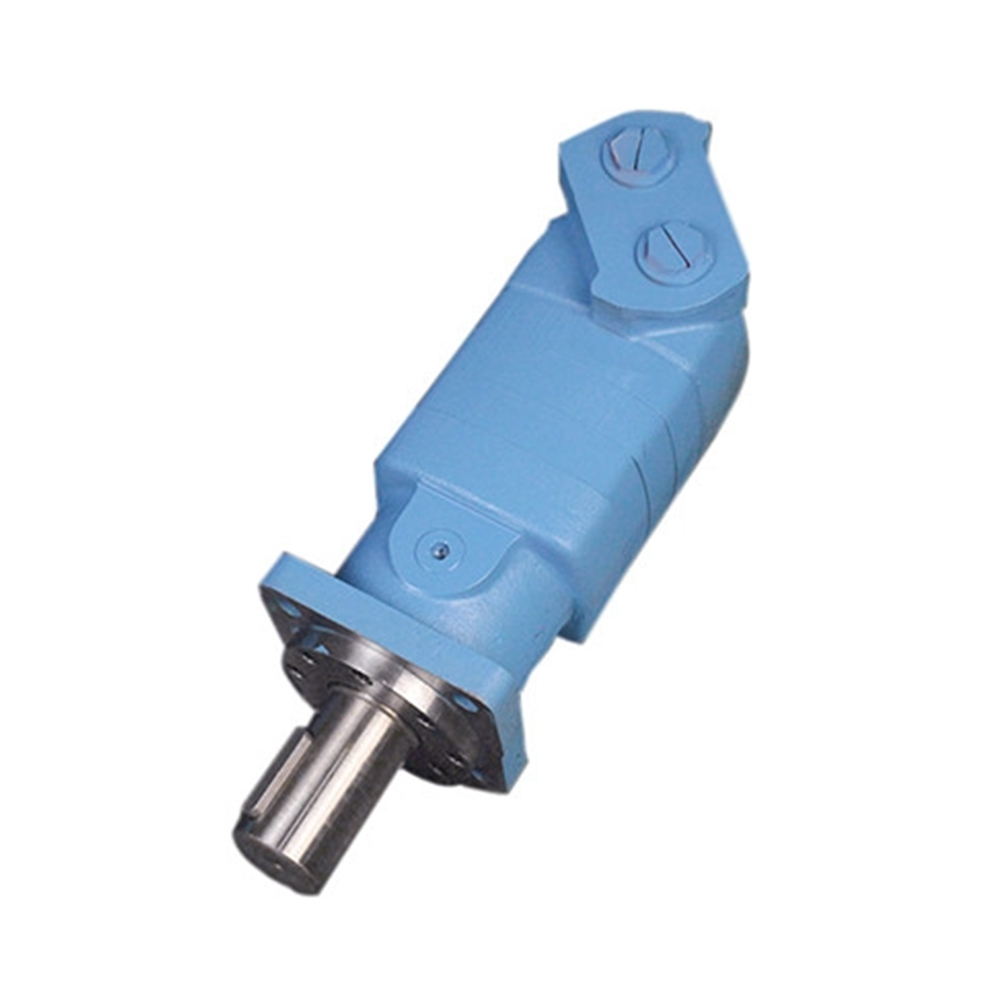

Char-Lynn (Danfoss) 119-1028-003, 10000 Series Hydraulic Motor made in China by Xeriwell
Quick review:
| 119-1028-003 | ||
| M10210AA01AA01000000000000000C | ||
| Feature | Code | Description |
| PRODUCT | M | MOTOR |
| SERIES | 10 | 10,000 SERIES |
| DISPLACEMENT | 210 | 343.8 CM3/R [20.98 IN3/R] |
| MOUNTING TYPE | AA | STANDARD, 4 BOLT; 127.0 [5.00] PILOT DIA. 16.76 [.660] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. |
| OUTPUT SHAFT | 1 | 57.15 [2.250] DIA. STRAIGHT SHAFT WITH .500-20 UNF-2B THREAD IN END, 12.7 [.50] SQUARE X 63.5 [2.50] STRAIGHT KEY |
| PORTS | AA | 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS |
| FLOW OPTIONS | 1 | .5625-18 UNF-2B DRAIN SAE O-RING PORT |
| LOW PRESSURE RELIEF | 0 | NONE |
| PRESSURE / FLOW OPTION | 0 | NONE |
| GEROLER OPTION | 0 | STANDARD |
| SEAL OPTION | 0 | STANDARD |
More Char-Lynn (Danfoss) 10000 series hydraulic motor:
119-1028
119-1029
119-1030
119-1031
119-1034
119-1035
119-1042
119-1046
119-1047
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Xeriwell offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
