| Quantity: | |
|---|---|
BMK6
Xeriwell or Others
| Features: | Same As ,M+S | Product Name: | Orbit Hydraulic Motor BMS |
|---|---|---|---|
| Displacement: | 80cc -500cc | Application: | Road Sweeper |
| Model Number: | BMK6 | Brand Name: | HANJIU |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

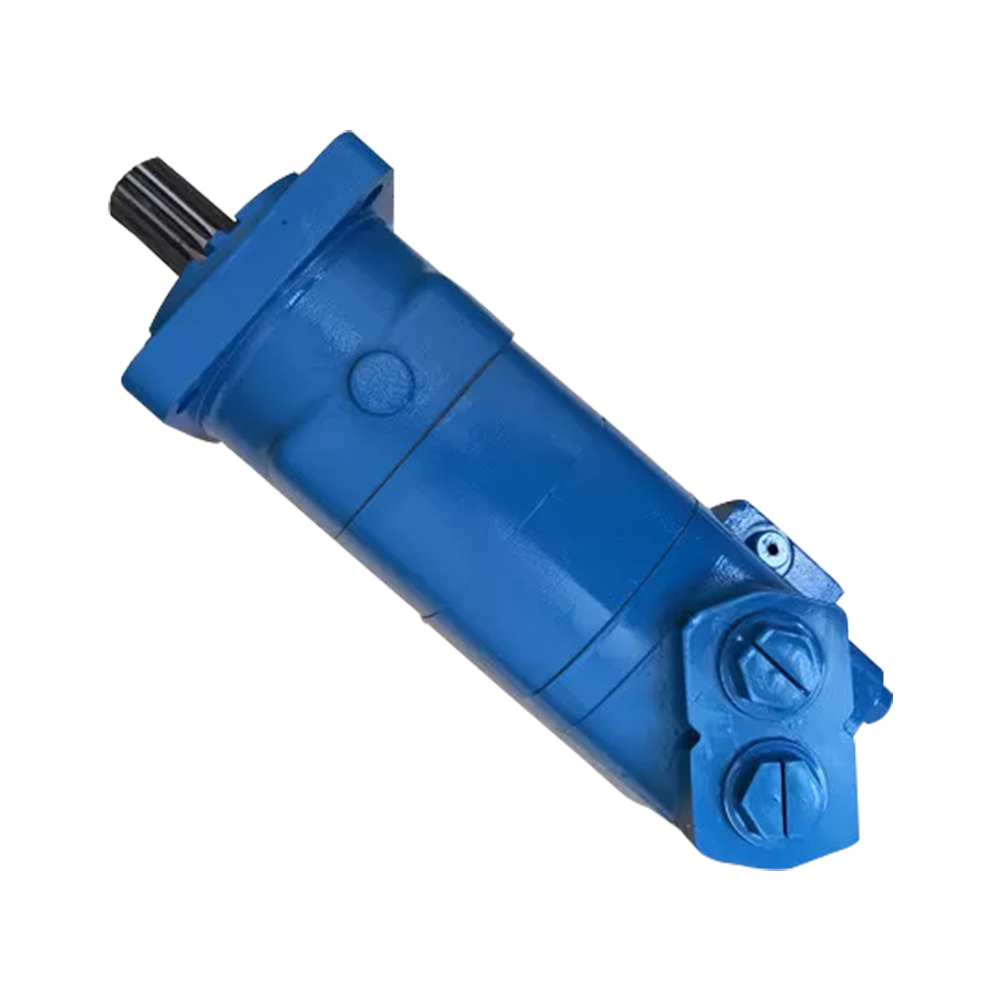

Char Lynn 6000 Geroler Motor Low Speed High Torque / BMK6
HANJIU BMK6 = Eaton/Char Lynn 6K = OMT = M+S MT
BMK6 Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for medium duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4000 psi. Max dynamic side load capability is 3600 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a drain. Dependability is based on high quality design and manufacturing.
Technical Parameters

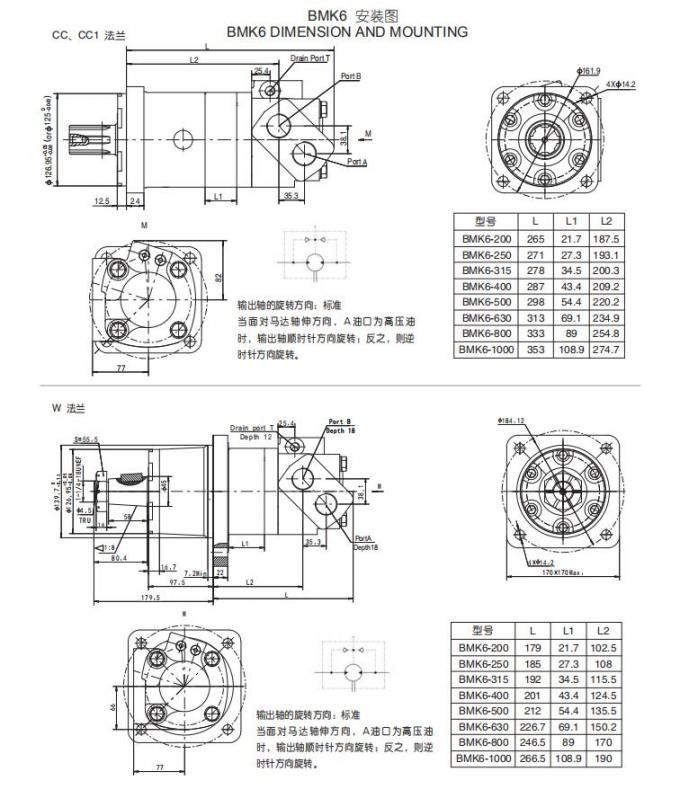

| 型号 | L | L1 | L2 |
| BMK6-200 | 265 | 21.7 | 187.5 |
| BMK6-250 | 271 | 27.3 | 193.1 |
| BMK6-315 | 278 | 34.5 | 200.3 |
| BMK6-400 | 287 | 43.4 | 209.2 |
| BMK6-500 | 298 | 54.4 | 220.2 |
| BMK6-630 | 313 | 69.1 | 234.9 |
| BMK6-800 | 333 | 89 | 254.8 |
| BMK6-1000 | 353 | 108.9 | 274.7 |
| 型号 | L | L1 | L2 |
| BMK6-200 | 179 | 21.7 | 102.5 |
| BMK6-250 | 185 | 27.3 | 108 |
| BMK6-315 | 192 | 34.5 | 115.5 |
| BMK6-400 | 201 | 43.4 | 124.5 |
| BMK6-500 | 212 | 54.4 | 135.5 |
| BMK6-630 | 226.7 | 69.1 | 150.2 |
| BMK6-800 | 246.5 | 89 | 170 |
| BMK6-1000 | 266.5 | 108.9 | 190 |

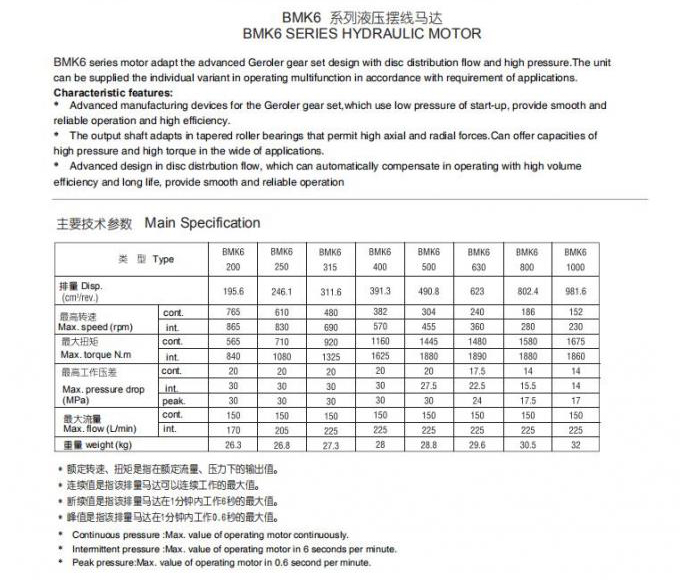

| 主要技术参数 Main Specification | |||||||||
| 类 型 Type | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | |
| 排量 Disp. (cm3/rev.) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| 最高转速 Max. speed (rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
| 最大扭矩 Max. torque N.m | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| 最高工作压差 Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| 最大流量 Max. flow (L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| 重量 weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |

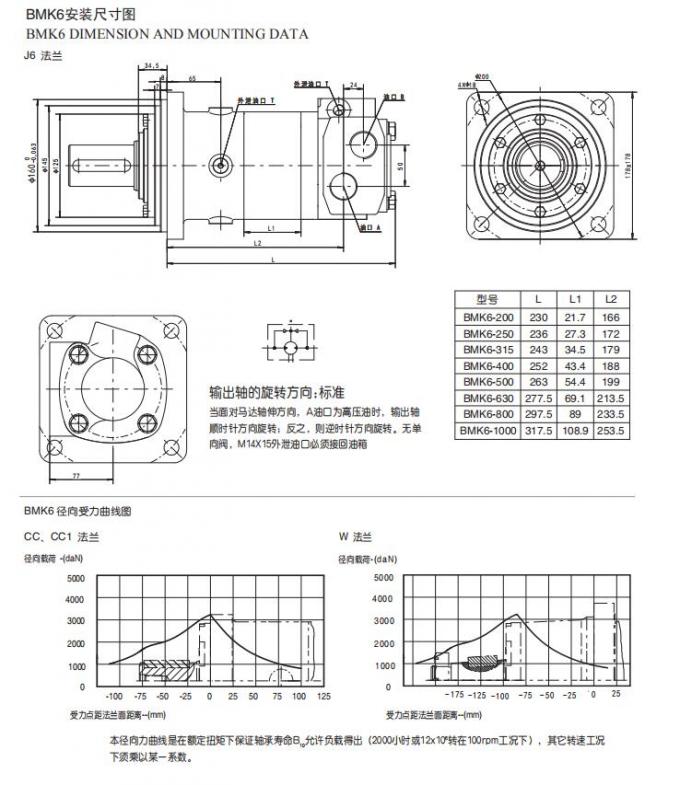

| 型号 | L | L1 | L2 |
| BMK6-200 | 230 | 21.7 | 166 |
| BMK6-250 | 236 | 27.3 | 172 |
| BMK6-315 | 243 | 34.5 | 179 |
| BMK6-400 | 252 | 43.4 | 188 |
| BMK6-500 | 263 | 54.4 | 199 |
| BMK6-630 | 277.5 | 69.1 | 213.5 |
| BMK6-800 | 297.5 | 89 | 233.5 |
| BMK6-1000 | 317.5 | 108.9 | 253.5 |

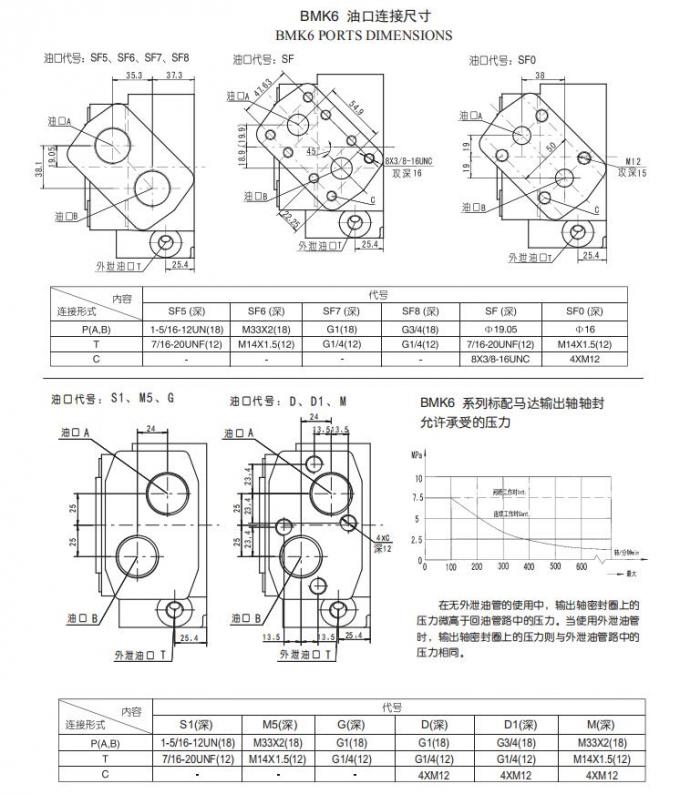

| 连接形式 内容 | 代号 | |||||
| SF5 (深) | SF6 (深) | SF7 (深) | SF8 (深) | SF (深) | SF0 (深) | |
| P(A.B) | 1-5/16-12UN(18) | M33X2(18) | G1(18) | G3/4(18) | Φ19.05 | Φ16 |
| T | 7/16-20UNF(12) | M14X1.5(12) | G1/4(12) | G1/4(12) | 7/16-20UNF(12) | M14X1.5(12) |
| C | - | - | - | - | 8X3/8-16UNC | 4XM12 |
| 连接形式 内容 | 代号 | |||||
| S1(深) | M5(深) | G(深) | D(深) | D1(深) | M(深) | |
| P(A.B) | 1-5/16-12UN(18) | M33X2(18) | G1(18) | G1(18) | G3/4(18) | M33X2(18) |
| T | 7/16-20UNF(12) | M14X1.5(12) | G1/4(12) | G1/4(12) | G1/4(12) | M14X1.5(12) |
| C | - | - | - | 4XM12 | 4XM12 | 4XM12 |
