| Quantity: | |
|---|---|
4000 series
Xeriwell or Others
| Item: | Disc Geroler Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Charlynn Code: | 109-1012 |
| Highlight: | High Torque Hydraulic Motor 109-1012-006,Low Speed Hydraulic Motor 109-1012-006,High Torque Hydraulic Motor 3500 bar | ||

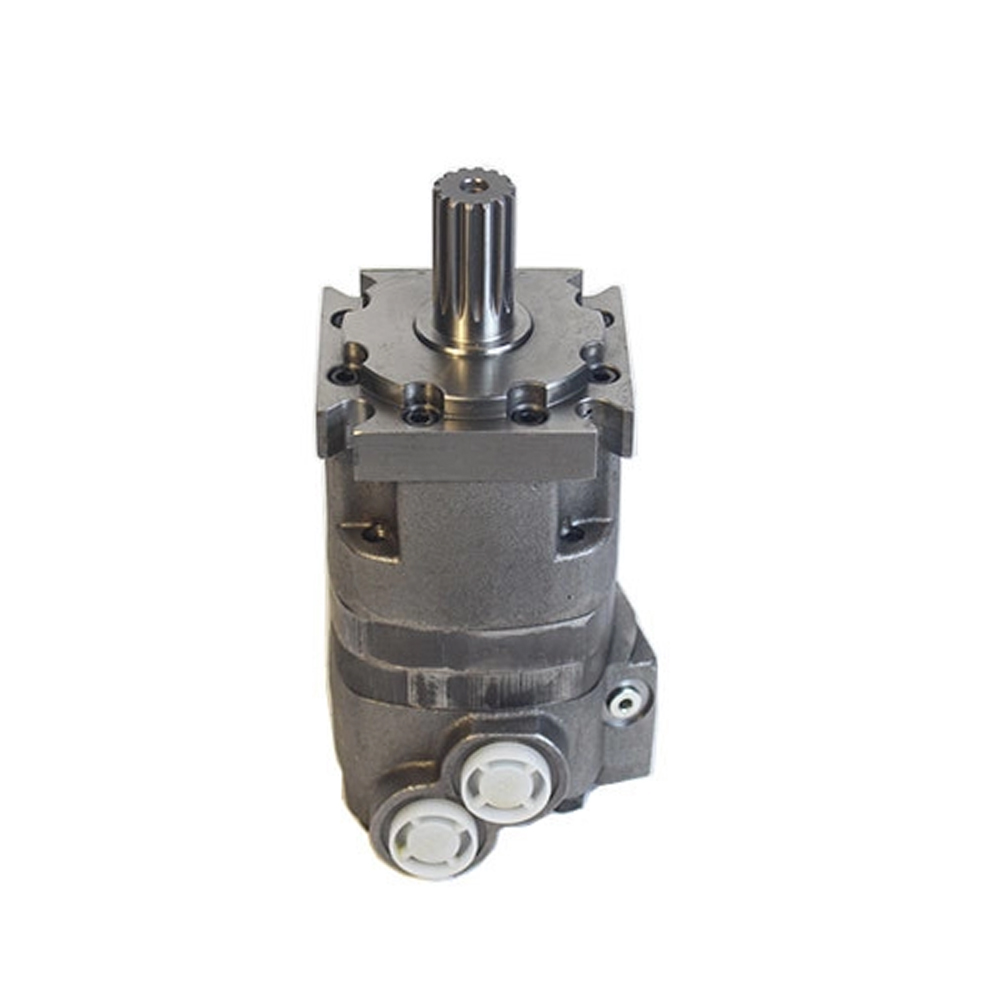

Char-Lynn 4000 Series Low Speed, High Torque (LSHT) Geroler Disc Motor 109-1012-006
Disc Motor
Geroler
Disc Valve
3/4 Split Flange Port
9.9 Cubic Inch Displacement Per Rev
Product details:
| MOUNTING TYPE CODE | B |
| PORT CODE | D |
| PORT TYPE | Split Flange |
| DISPLACEMENT (IN3/REV) | 9.9 |
| SPLINES | 14 |
| SHAFT SIZE & TYPE | 1.25 in 14T Splined |
| RPM [MAX] | 582 rpm |
| MOUNT TYPE | 4 Bolt |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 4290 in lb |
| SHAFT TYPE | Splined |
| MOTOR TYPE | Disc Valve |
| MOUNTING HOLES | 0.58 in |
| FLANGE ORIENTATION | Standard |
| DRAIN | SAE-4 w/Check Valve |
| DUTY | Standard-Duty |
| MOTOR ELEMENT | Geroler |
| SERIES | 4000 Series |
| ROTATION | Standard Rotation |
| FLOW RATE | 25 gal/min |
| PORT SIZE | 3/4- unf |
| PILOT DIAMETER | 4 in |
| PORT LOCATION | Side Port |
| BOLT CIRCLE DIA. | 5 in |
| MOUNTING HOLE SIZE | 0.58 in |
| OUTPUT SHAFT CODE | 3 |
| SEAL MATERIAL | Buna-N |
| INLET PRESSURE [MAX] | 4500 psi |
| CORROSION RESISTANT | No |
| PAINT/PACKAGING | Individual Box |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 582 rpm @ 25 gal/min |
| SPECIAL FEATURES | None |
| PAINT CODE | black |
| WEIGHT | 57.0 LB |
109-1001-006
109-1002-006
109-1003-006
109-1006-006
109-1008-006
109-1011-006
109-1012-006
109-1013-006
109-1052-006
109-1053-006
109-1054-006
109-1055-006
109-1056-006
109-1057-006
109-1059-006
109-1061-006
109-1062-006
109-1063-006
109-1064-006
109-1065-006
109-1087-006
109-1094-006
109-1100-006
109-1101-006
109-1102-006
109-1103-006
109-1104-006
109-1105-006
109-1106-006
109-1107-006
109-1108-006
109-1109-006
109-1110-006
109-1111-006
109-1112-006
109-1113-006
109-1114-006
109-1115-006
109-1116-006
109-1117-006
109-1118-006
109-1119-006
109-1120-006
109-1154-006
109-1155-006
109-1156-006
109-1157-006
109-1158-006
109-1159-006
109-1160-006
109-1173-006
109-1184-006
109-1185-006
109-1189-006
109-1190-006
109-1191-006
109-1192-006
109-1193-006
109-1194-006
109-1195-006
109-1196-006
109-1203-006
109-1204-006
109-1207-006
109-1208-006
109-1211-006
109-1212-006
109-1215-006
109-1220-006
109-1224-006
109-1225-006
109-1227-006
109-1231-006
109-1233-006
109-1234-006
109-1236-006
109-1238-006
109-1245-006
109-1246-006
109-1247-006
109-1248-006
109-1252-006
109-1254-006
109-1260-006
109-1263-006
109-1264-006
109-1267-006
109-1269-006
109-1278-006
109-1280-006
109-1286-006
109-1287-006
109-1293-006
109-1295-006
109-1296-006
109-1304-006
109-1305-006
109-1309-006
109-1311-006
109-1314-006
109-1316-006
109-1317-006
109-1318-006
109-1337-006
109-1339-006
