| Quantity: | |
|---|---|
BMSY160
Xeriwell or Others
| Product: | Disc Valve Hydraulic Motor | Replace: | Charlynn |
|---|---|---|---|
| Apply To: | Rock Drills Machines | Displacement: | 160ml/r |

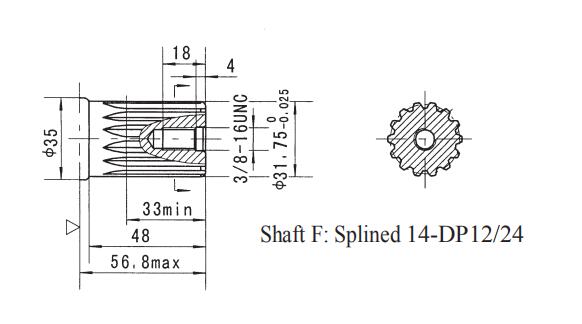

| Flange: | 4 Hole, Rhomb | Shaft: | 14-dp12/24 Spline Shaft |
| Max Flow: | 90 L/min | Max Speed: | 280 Rpm |
| Highlight: | high power hydraulic motor,two speed hydraulic motor | ||

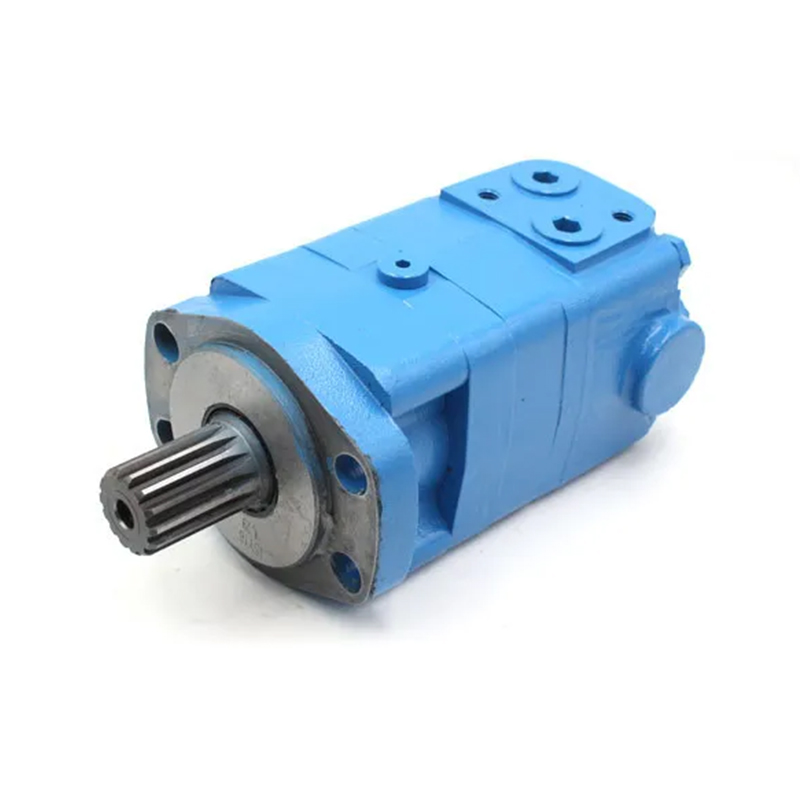

Ingersollrand & Furukawa hydraulic motor charlynn 2000series rock drill parts 104-1842-006
This type of hydraulic motors widely used on Ingersollrand & Furukawa ROCK DRILL
The OEM parts
51205508
2651 2055 08
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Characteristics:
This motor produced by Xeriwell from China, it's a alternative hydraulic motor to Eaton Char lynn 2000 series, also alternative with OMS series, also alternative with M+S MS series, and alternative with many other manufacturers from USA and European.
Main Specifications:
| Type | BMSY BMSE 80 | BMSY BMSE 100 | BMSY BMSE 125 | BMSY BMSE 160 | BMSY BMSE 200 | BMSY BMSE 250 | BMSY BMSE 315 | BMSY BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
BMSY
BMSYS
160
BMSY
BMSYS
80
BMSY
BMSYS
100
BMSY
BMSYS
125
BMSY
BMSYS
200
BMSY
BMSYS
250
BMSY
BMSYS
315
BMSY
BMSYS
400
BMSY
BMSYS
475
How to work with Xeriwell?
Inorder to make you better understand how to work with us, here i give you the steps:
discuss your demand with us first
we help you to confirm the products
match with our models
discuss your demand quantity with us, this will help us to provide you our best offer
we make a deal on the offer
sign a contract
you pay deposit
we produce
you pay balance payment after order ready for shipping
dispatch order
Payment terms: 30% deposit, 70% balance should be paid before shipping
Shipping: by sea, by air, by train
Terms: FOB, CFR, CIF
Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China
What is you warranty period?
For your further better understand that after-sale service we are offering, here i give you the details:
each item supplied by 'Xeriwell' will be tested on it's testing plant at least twice
each item supplied by 'Xeriwell' will be with a quality certificate
charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
all of our product practice protect the quality 1 year.
