| Quantity: | |
|---|---|
106-1014
Xeriwell or Others
| Type: | Charlynn Bearingless Motor | Model: | BMSJ |
|---|---|---|---|
| Displacement: | 160cc | Warranty Time: | 12-18 Months |
| Cetificate: | ISO9001:2015 | Place Of Origin: | China |
| Highlight: | char lynn 2000 bearingless motor,106-1014-006 bearingless motor,high torque pressure bearingless motor | ||

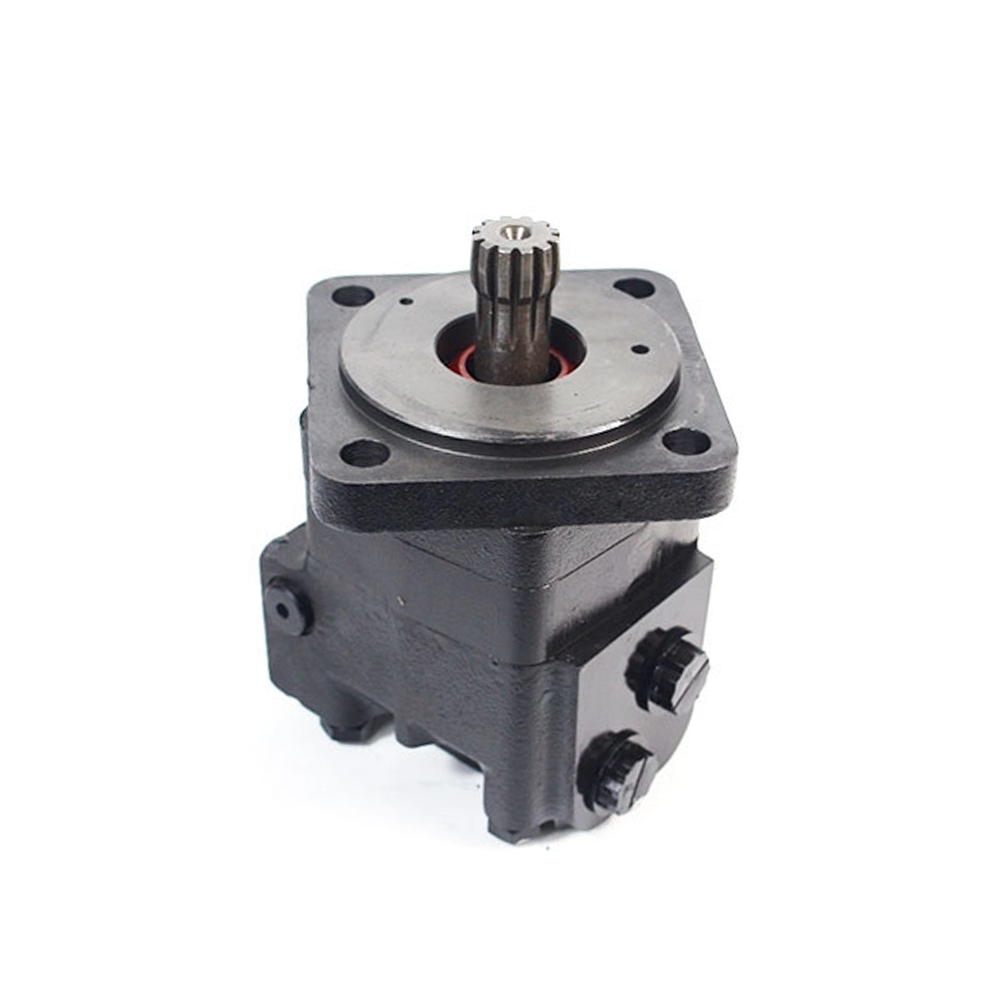

Char-Lynn 2000 106-1014-006 LSHT Bearingless Motor For Hydraulic Ladder Vehicle Truck With High Torque Pressure
Type:Xeriwell BMSJ
displacement:160cc
shaft:spline shaft
port:SAE ports
matching:eaton charlynn motor
Main Specifications:
| Type | BMSJ 80 | BMSJ 100 | BMSJ 125 | BMSJ 160 | BMSJ 200 | BMSJ 250 | BMSJ 315 | BMSJ 400 | BMSJ 475 | |
Displacement (cm3/rev.) | 80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | |
| Max.speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
Max. Torque (N•m) | con. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 |
| int. | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | |
| Max.output (kW) | con. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
Max. pressure drop (MPa) | con. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| Max.flow (L/min) | con. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Max. Inlet pressure(MPa) | con. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Net Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
Years of production experience and a professional R&D team ensure that all products produced by Xeriwell are generally higher in quality and performance than other products on the market. The quality of the product is excellent, and the user also needs to know enough about the use of the product. Xeriwell mainly solves this problem from three aspects. First, all Xeriwell product interfaces have extremely detailed introduction to product parameters. Secondly, Xeriwell's staff are professionally trained, and they have systematic and rich knowledge about hydraulic products. These staff will answer all customers' questions about products with 100% patience and make reasonable solutions in a timely manner. remind. Finally, all products of Xeriwell not only have a one-year warranty period, but also have detailed instructions for use. Method. In short, everything Xeriwell does is to satisfy customers and solve their concerns about purchasing products.
The biggest feature of Xeriwell's service is caring and comprehensive. Xeriwell always adheres to the customer first, attaches great importance to the customer's service experience, and will patiently reply to each customer's questions and help customers solve their problems. All products have a one-year warranty period after they are sold. If you find any problems during this period, you can ask Xeriwell, and they have professional personnel to guide you.
