| Quantity: | |
|---|---|
BMRS
Xeriwell or Others
| Features: | High Pressure | Product Name: | BMRS / CHARLYNN 103 |
|---|---|---|---|
| Displacement: | 80CC - 400CC | Flnge: | 4 Flange |
| Power: | Hydraulic Oil | Shaft Size: | 25.4mm |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

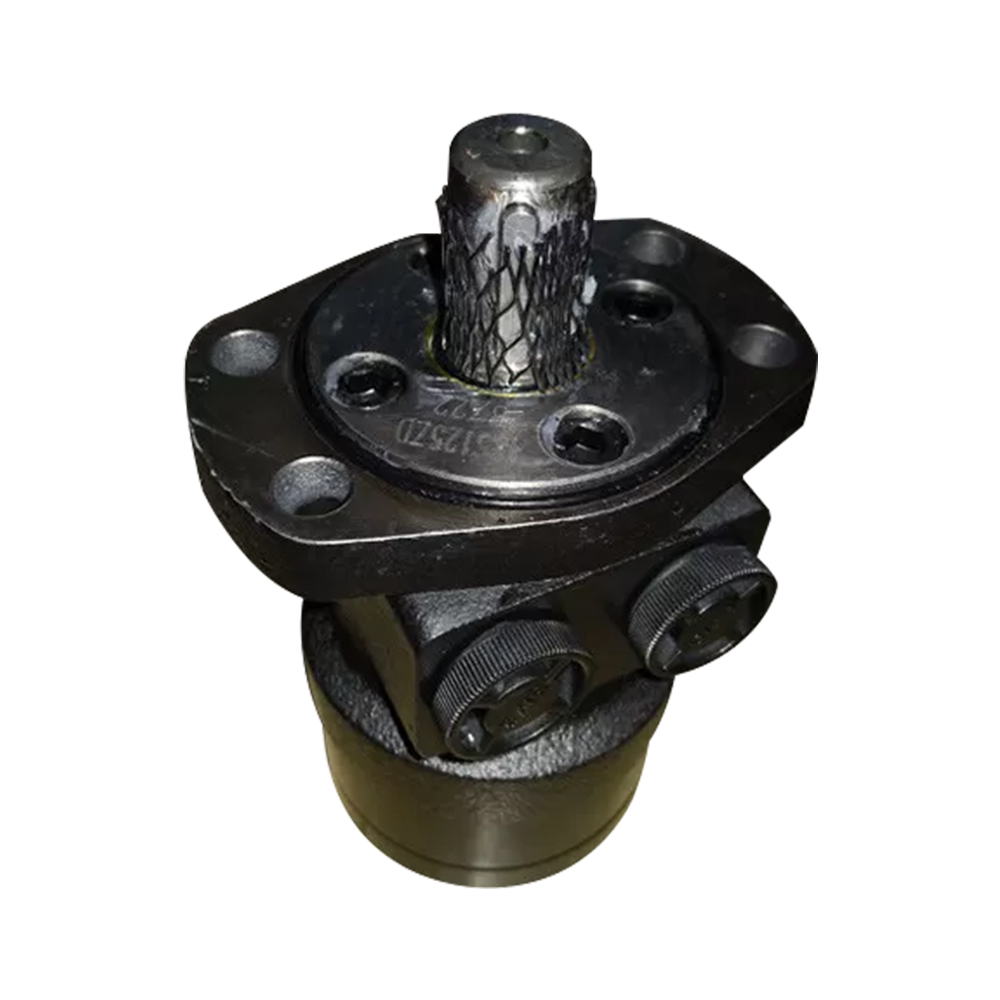

Char Lynn 103 / S Series LSHT Hydraulic Gerotor Motor 4 Flange
Specification:
| Type | BMRS 36 | BMRS 50 | BMRS 80 | BMRS 100 | BMRS 125 | BMRS 160 | BMRS 200 | BMRS 250 | BMRS 315 | BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
| Model | L | L1 |
| BMR36 | 137 | 7 |
| BMR50 | 140 | 10 |
| BMR80 | 146 | 16 |
| BMR100 | 150 | 20 |
| BMR125 | 155 | 25 |
| BMR160 | 161.5 | 30.5 |
| BMR200 | 170 | 38.1 |
| BMR250 | 180 | 50 |
| BMR315 | 192 | 62 |
| BMR375 | 204 | 74 |
