| Quantity: | |
|---|---|
101-1001-009
Xeriwell or Others
| Item: | Hydraulic Motor | Type: | Orbit Motor |
|---|---|---|---|
| Direction: | Left And Right | OEM #: | Char-lynn 101-1001-009 |
| Speed: | 969 Rpm | Displacement: | 46cc |
| Port Size: | 1/2 Inch NPTF | Shaft Size: | 1 Inch Dia X 1-3/4 Inch Length |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

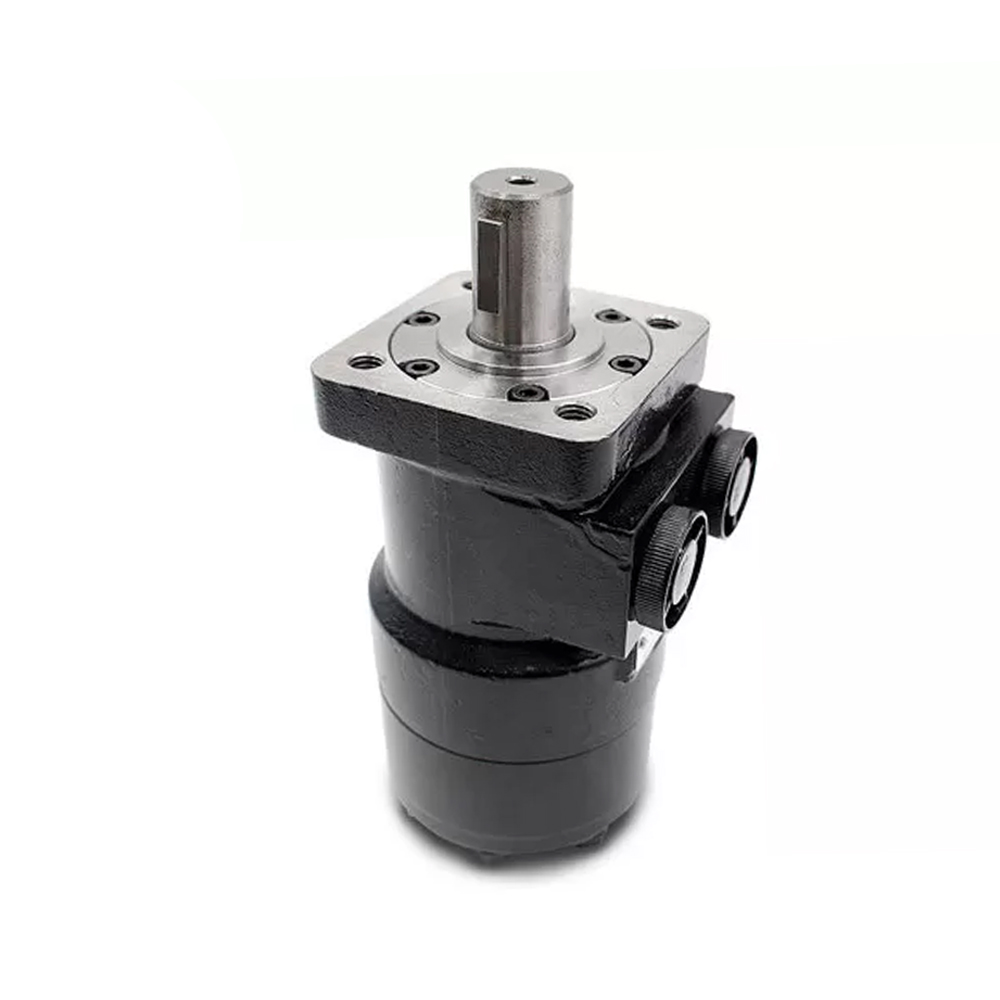

Char-Lynn 101-1001-009, 4 Bolt Flange, 2.8 in⊃3;/r Displacement, 1/2in NPTF Ports
This is a replacement hydraulic motor for Char-lynn 101-1001-009
OEM # 101-1001-009
Alternative #: BMPH-46
Item: Hydraulic Motor
Type: LSHT Gerotor
Series: H Series
Displacement: 2.8 cu-Inch-rev
Pressure Rating 1800 psi
Speed 969 Rpm
Output Torque 650 Inch-lb
Flow Rate 12 gpm
Port Type Side
Port Size 1/2 Inch NPTF
Mounting Type 4-Bolt, 1.75 Inch Pilot
Oil Viscosity 100 SUS
Oil Temperature 180 deg F
Shaft Size 1 Inch Dia x 1-3/4 Inch Length
Shaft Type Keyed Woodruff
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
