| Quantity: | |
|---|---|
BMR OMR MR
Xeriwell or Others
| Products Name: | Low Speed High Torque Orbit Hydraulic Motors | Flange: | 4 Bolts Squre, 2 Bolts Diomand |
|---|---|---|---|
| Pilot: | 44.4mm | Displacement: | 50cc - 395cc |
| Warranty: | 12-18 Months | Material: | Cast Iron |
| Highlight: | hydraulic rotation motor,fixed displacement hydraulic motor | ||

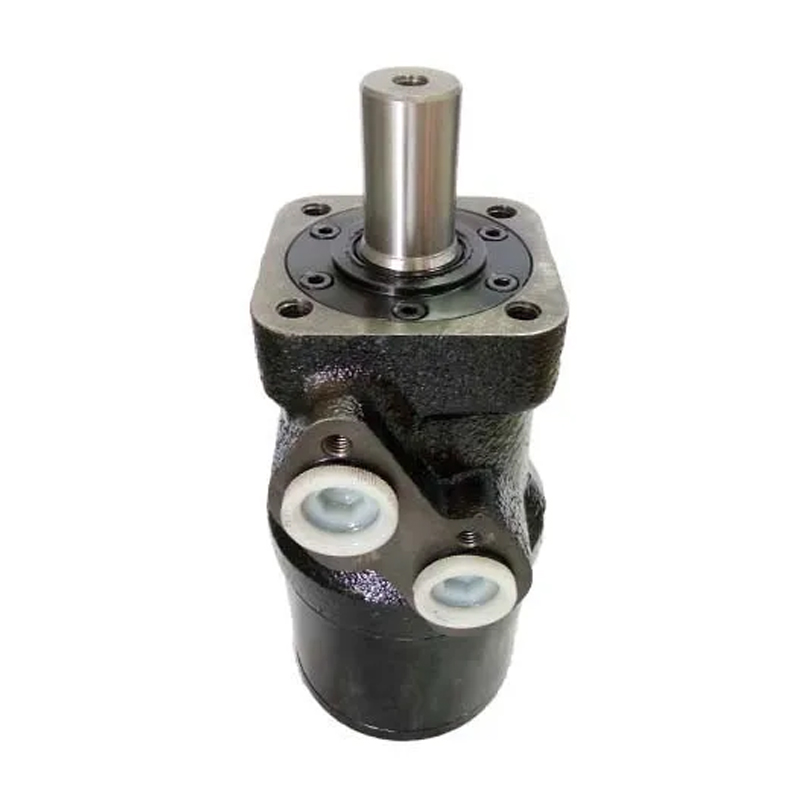

Low RPM Hydraulic Motor OMR / BMR / MR 44.4mm Pilot In Hydraulic , Pneumatic Components
Hydraulic orbit Motor is one type of high torque low speed hydraulic motors, with high efficiency and long life.
Xeriwell BM series motor has a wide speed range, high starting torque and rotating stable at high speed compact and light. It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.
- Compact design of spool and gear set , which provide mini volume, high power and low weight..
- Credible design for shaft seal , which can bear high pressure.
- Direction of shaft rotation and speed can be controlled easily and smoothly.
100% interchangable with the international brand, like EATON, ,
Specifications:
| Technical data for BMR Hydraulic Orbital Motors |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Applications:
Xeriwell hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
1. An agricultural use: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.
2. fishing with: hauling machine.
3. light industry: winding machines, textile machines, printing presses, operating with a washing machine.
4. construction industry: rollers, cement mixers, cleaning cars.
