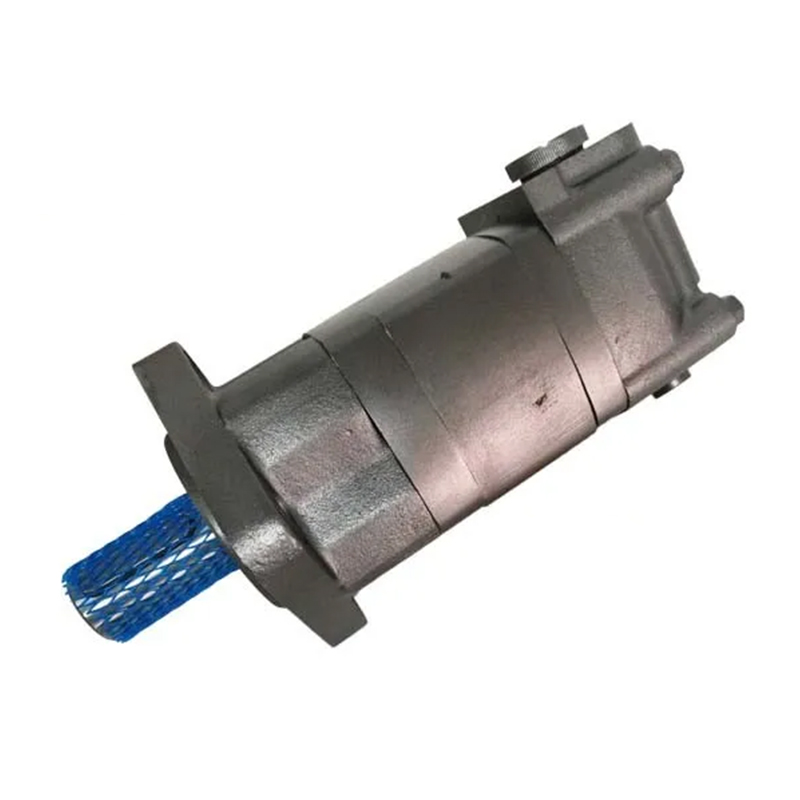

Hydraulic Motor BMS
Xeriwell or Others
| Product Name: | Hydraulic Motors | Model Number: | BMS,OMS |
|---|---|---|---|
| Place Of Origin: | China | Material: | Cast Iron |
| Motivation: | Hydraulic Oil | Oil Temperature: | 20℃-60℃ |
| Highlight: | two speed hydraulic motor,industrial hydraulic motor | ||
Hydraulic Winch Motor BMS Motors Incorporates The Latest Advances For Smooth Performance, Efficiency And Durabilit
1. Xeriwell BMS series Hydraulic motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Xeriwell BMS featutres:
1. Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up,
provide smooth and reliable operation and high efficiency.
2. The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The
can offers capacities of high pressure and high torque in the wide of applications.
3. Advanced design in disc distrbution flow, which can automatically compensate in operating with
high volume efficiency and long life,provide smooth and reliable operation.
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
Displacement (cc/rev) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
Max torque (n.m) | cont | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
Max pressure (Mpa) | cont | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
Max speed rate (rpm) | cont | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
Max flow (L/min) | cont | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
Xeriwell BMS hydraulic motors are widely applied in hydraulic winches, metal‑cutting machine tools, agricultural & forestry machinery, construction machinery, injection molding & rubber machinery, metallurgical equipment, marine equipment, special vehicles and sliding equipment.
