| Quantity: | |
|---|---|
109
Xeriwell or Others

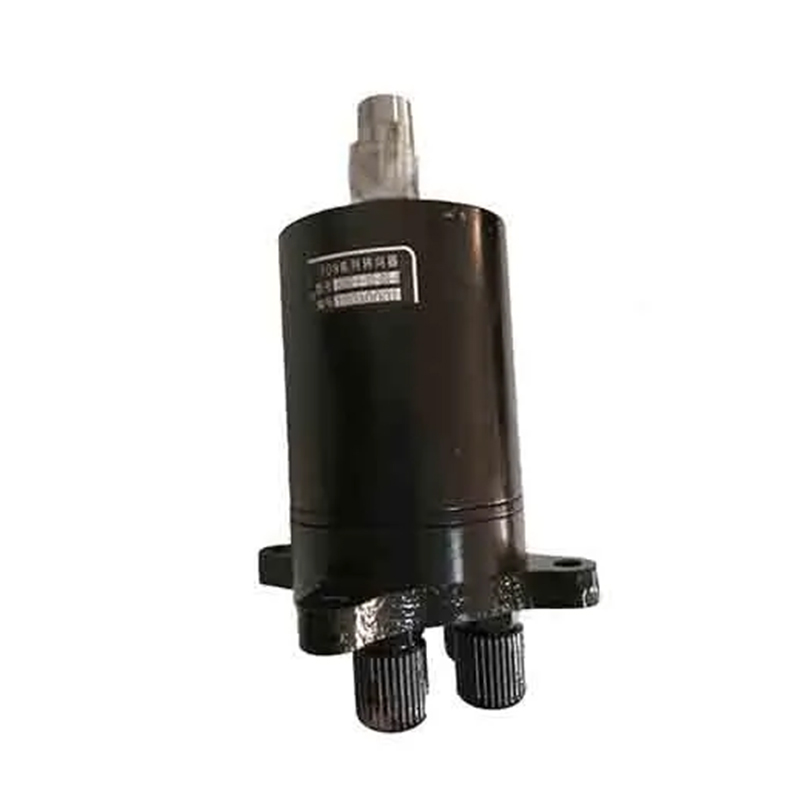

| Product Name: | Steering Control Unit | Feature: | For Kubota |
|---|---|---|---|
| OEM: | K2561-41510 | Replace: | OSPM 50 ON |
| Displacement: | 50cc | Fuction: | ON |
| Suit: | Kubota BX | ||
| Highlight: | power steering valve,power steering control unit | ||
Kubota steering control unit OEM, JCB steering control unit OEM
This 109 steering unit is very popular steering unit to replace the below:
K2561-41510
OSPM 50 ON
109 steering unit is used on the following models:
Kubota BX1500, BX1800, BX1830, BX1850, BX1860, BX1870, BX1880, BX2200, BX2230, BX2350, BX2360, BX2370, BX2380, BX2660, BX2670, BX2670-1, BX2680
Replaces: Kubota K2561-41510, and Original Sauer part number OSPM 50 ON 150L0065
this valve is totally same as original, requires no modifications when install, and all the working functions are the same. It can be directly used under the original steering wheel and use all the existing mounting hardware.
With our years of experience, Xeriwell - a manufacturer specialized in hydraulic steering unit, we have the high standard of quality with our Steering Unit lines. We have steering unit for :
Zoomlion,
Ford ,
Komatsu,
Hitachi,
Heli, etc.
| Main Specification | ||||||
| Parameters | Type 109*-1-***-**-* | |||||
| Displacement(mL/r) | 20 | 32 | 40 | 50 | 63 | 80 |
| Rated flow(L/min) | 3~20 | |||||
| Rated Pressure(MPa) | 12.5 | |||||
| Relief Valve Pressure Settings(MPa) | 06,07,08,09,10 | |||||
| Shock Valves Pressure Settings(MPa) | 12,13,14,15,16 | |||||
| Steering Torque(N·m) | ≤1.8 | |||||
| Max．Cont．Preesure in Line T-PT(MPa) | 1 | |||||

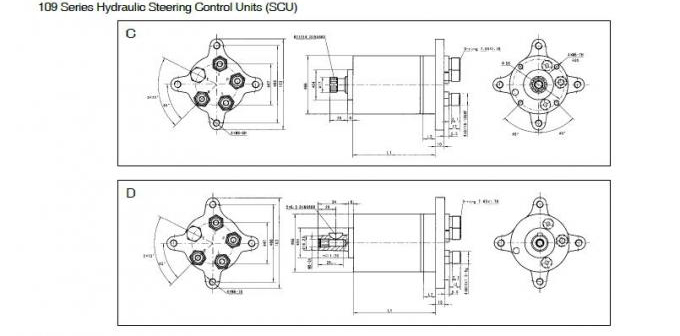

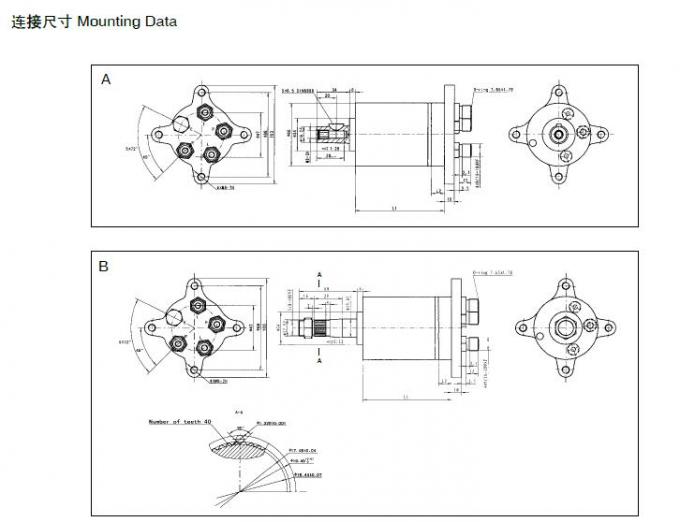

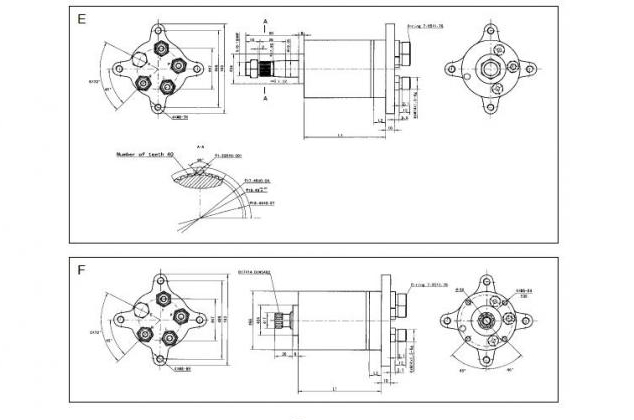

| Dimension L(mm) | 87 | 92 | 96 | 100 | 105 | 113 |
