CBT-F4
Xeriwell or Others
| Product: | Hydraulic Double Gear Pump | Model: | CBT-F4 |
|---|---|---|---|
| Structure: | Gear Pump | Power: | Hydraulic |
| Theory: | Rotary Pump | Rated Pressure: | F=20Mpa |
| Highlight: | industrial hydraulic pump,high pressure gear pump | ||

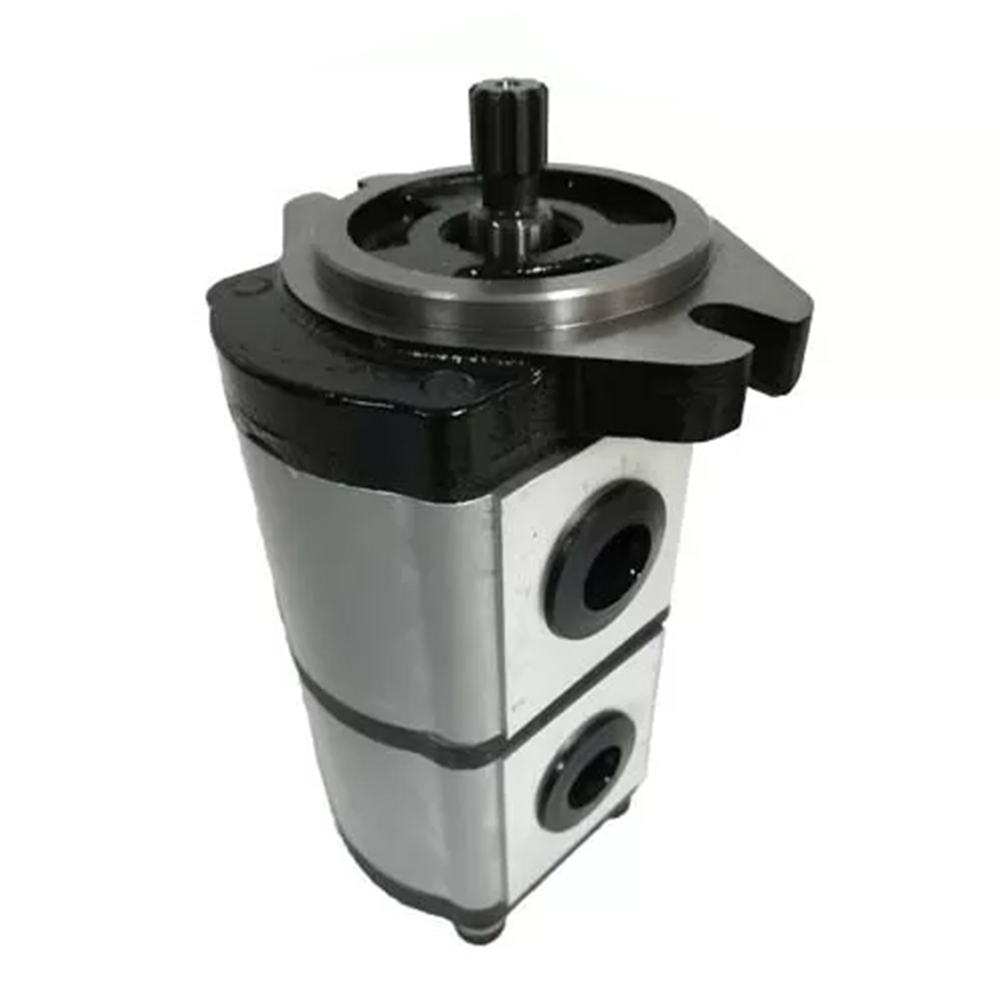

CBT-F4****** Series Hydraulic Double Gear Pump for Tractor, Sanitation Trucks
The CBT-F4****** Series double gear pumps are external gear pumps with low noise. The features of the pumps are its axial clearance automatic and radial hydraulic balance.
This series pumps also have the advantages of its simple structure, reliable performance, volume efficiency, shock resistence and long life series.
Features:
1. Low noise and long service life
2. Application of high strength aluminum alloy materials, light weight, low installation labor intensity
3. Input shaft types: key,rectangular spline,involute spline and woodruff
4. Connections types for the inlet and outlet ports: thread or flange etc.
5. Axial gap automatic compensation mechanism keeps high volumetric efficiency
Main Specifications:
| F1 | F2 | ||||
| Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
| 06 | 47.6x22.2 φ23 | 47.6x22.2 φ20 | 06 | 52.4x 26.2 φ23 | 7.6x22.2 φ20 |
| 08 | 08 | ||||
| 10 | 10 | ||||
| 12 | 12 | ||||
| 14 | 14 | ||||
| 16 | 16 | ||||
| 18 | 52.4x26.2 φ26 | 18 | 52.4x26.2 φ26 | ||
| 20 | 20 | ||||
| 23 | 23 | ||||
| 25 | 25 | ||||
| 27 | 27 | ||||
| 30 | 30 | ||||
| 32 | 32 | ||||
| 36 | 36 | ||||
| 40 | 40 | ||||
| S | FS | ||||
| Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
| 06 | M22x1.5-6H | M18x1.5-6H | 06 | 52.4x26.2 φ26 | M22x 1.5-6H |
| 08 | 08 | ||||
| 10 | 10 | ||||
| 12 | 12 | ||||
| 14 | 14 | ||||
| 16 | 16 | ||||
| 18 | M33x2-6H | M27x2-6H | 18 | M33x 2-6H | |
| 20 | 20 | ||||
| 23 | 23 | ||||
| 25 | 25 | ||||
| 27 | 27 | ||||
| 30 | 30 | ||||
| 32 | 32 | ||||
| 36 | 36 | ||||
| 40 | 40 | ||||
| 性能参数 Specifications and application data | ||||||||||||||||||||||||||||
| 序号 Number (item) | a1 a2 | 额定压力 Nominal pressure (Mpa) | 最高压力 Maximum pressure (Mpa) | 转速极限 SPEED limit (rpm) | F（F1）型进出油口 | F2型进出油口 | S型进出油口 | FS型进出油口 | A | B | C | |||||||||||||||||
| 进油口 | 出油口 | M1 | 进油口 | 出油口 | M1 | 进油口 出油口 | 进油口 | M1 | 出油口 | |||||||||||||||||||
| a | b | ΦD | e | f | Φd | a | b | ΦD | e | f | Φd | M | M | a | b | ΦD | M | |||||||||||
| 6 | 61.5 | 20 | 25 | 2000 | 47.6 | 22.2 | 23 | 47.6 | 22.2 | 20 | M10x1.25-8H(M10-8H) | 52.4 | 26.2 | 23 | 47.6 | 22.2 | 20 | M-8H | M22x1.5-8H | M18x1.5-8H | 52.4 | 26.2 | 26 | M10-8H | M22x1.5-8H | 20+0.5a1 | 42*0.5a1+0.5a2 | 95+a1+a2 |
| 8 | 64.5 | |||||||||||||||||||||||||||
| 10 | 66.5 | |||||||||||||||||||||||||||
| 12 | 68.5 | |||||||||||||||||||||||||||
| 14 | 71 | |||||||||||||||||||||||||||
| 16 | 73.5 | |||||||||||||||||||||||||||
| 18 | 76 | 52.4 | 26.2 | 26 | 26 | M33x2-8H | M27x2-8H | M33x2-6H | ||||||||||||||||||||
| 20 | 78.5 | |||||||||||||||||||||||||||
| 23 | 82.5 | |||||||||||||||||||||||||||
| 25 | 84 | |||||||||||||||||||||||||||
| 27 | 87.5 | |||||||||||||||||||||||||||
| 30 | 90 | |||||||||||||||||||||||||||
| 32 | 94 | |||||||||||||||||||||||||||
| 36 | 98 | |||||||||||||||||||||||||||
| 40 | 103 | |||||||||||||||||||||||||||
Applications:
This series pumps are widely used in tractors, reapears, construction machinery, forklift, sanitation trucks and other hydraulic systems, etc.
