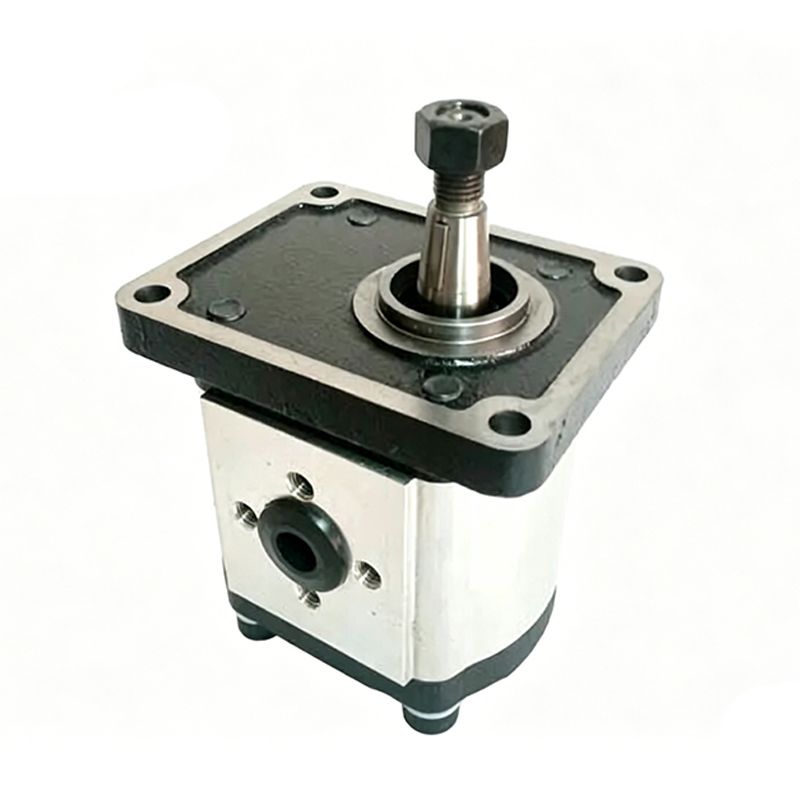

CBK / CBT Series High‑Efficiency Hydraulic Gear Motor for Agricultural Tractors

You are here: Home » Products » Hydraulic Motor » Ungrouped » CBK / CBT Series High‑Efficiency Hydraulic Gear Motor for Agricultural Tractors

CBK / CBT Series High‑Efficiency Hydraulic Gear Motor for Agricultural Tractors

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
CBK Gear Motor
Brand:
Xeriwell or Others

Product Description

Features:	High Pressure	Product Name:	Hydraulic Gear Motor CBK / CBT
Brand:	Xeriwell	Displacement:	0.6cc To 6.03cc
Application:	Hydraulic System	Model Number:	CBK / CBT
Highlight:	high torque gear motor , low speed gear motor

Hydraulic Gear Motor CBK / CBT Series For Agricultural Tractor Hydraulic System

► Characteristic Features

1. High strength aluminium alloy body

2. More choices of shaft

3. Different ports availability

4. Automatic axial clearance compensation mechanism assures high volumetric efficiency for long time

5. High operating pressure and wide speed range

6. High volumetric efficiency also at speed of 400rpm

7. CBT / CBK series gear pumps are external pumps with axial compensation and radial balancing, are widely applied in hydraulic system of Agriculture & Tractors and Engineering Trucks.

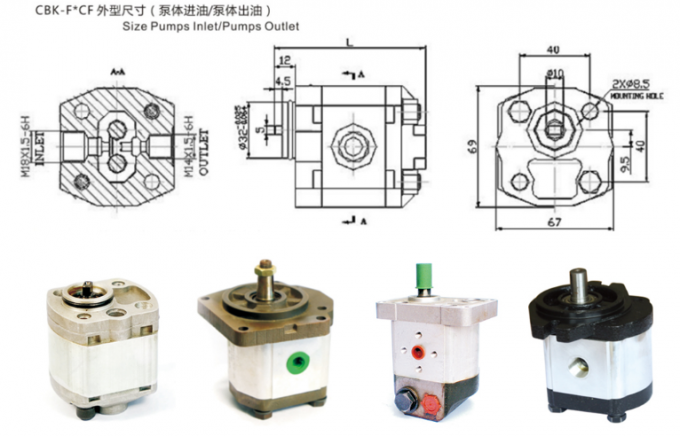

8. CBT / CBK series gear pump may be provided with various kinds of mounting flanges, shaft ends and connection styles of inlet and outlet. Please refer to the table below.

9. This series of pump could be made as CBT / CBK --side-in and rear-out, rear-in and side-out. This series of pump also could be combined as a relief pump CBT / CBK with safety valve, or constant flow pump CBT / CBK with constant flow relief valve

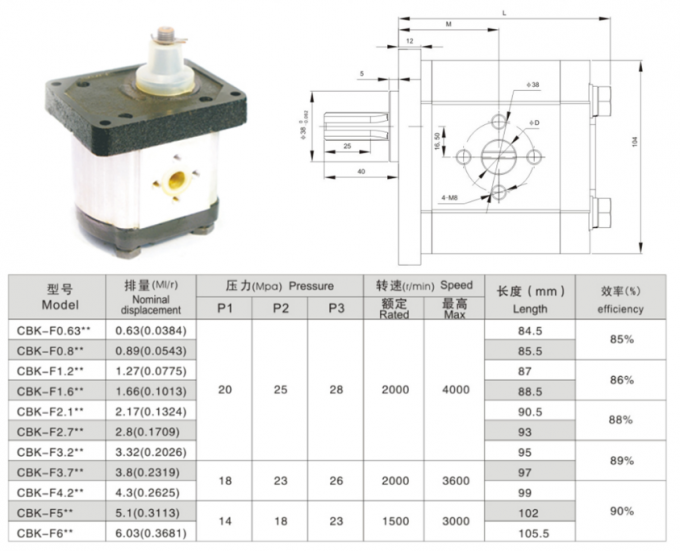

► Specification
