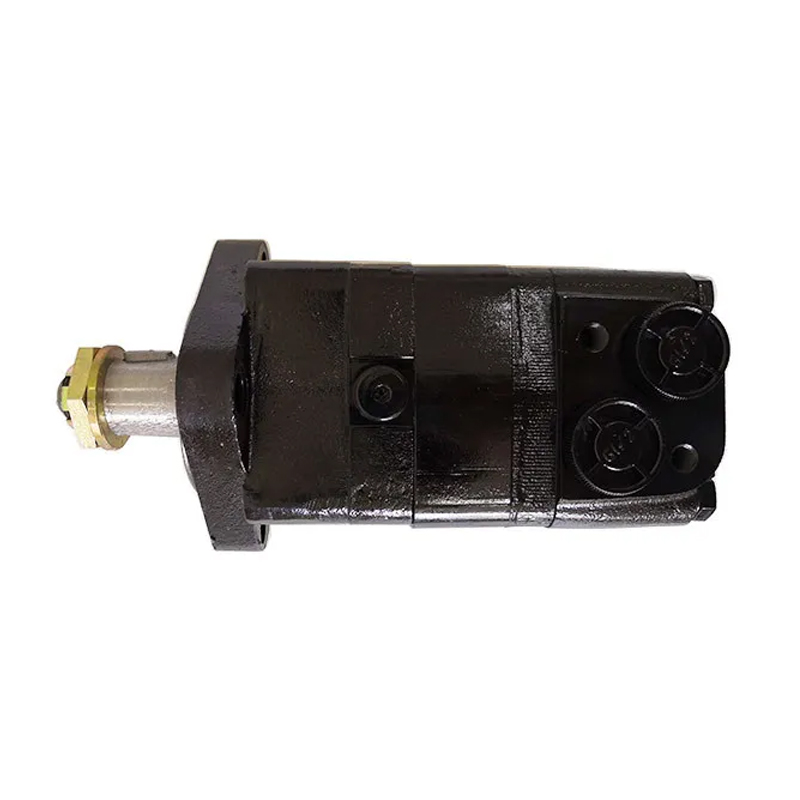

CAT 2579370 Hydraulic Motor Compatible with BU115 BU118 Utility Broom Equipment

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
hyd motor
Brand:
Xeriwell or Others

Product Description

Product:	Sweepers,broom Utility Parts	Displacement:	400ml/r
Flange:	4 Bolts Square Flange	Shaft:	Cone Shaft
Max Flow:	Cont.75/int.90 L/min	Max Speed:	Cont.185/int.225rpm
Highlight:	CAT BU115 , CAT BU118 , 2579370 Hyd Motor

Compatible Equipment Models CAT 2579370 Utility Broom BU115 BU118 Hyd Motor

Product details

Flange:4 bolts square flange φ106.4,pilotφ82.5X6.3

shaft:Shaft Ø 31.75 , cone shaft

ports:G1/2 Manifold Mount; side ports

fit:CAT broom utility BU115/BU118

quality:aftermarket OEM quality

Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	394	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	880	910
	int.	240	300	370	430	466	540	658	980	990
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11	9
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	12	11
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	16	14
	int.	21	21	21	21	16	16	14	19	15
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Xeriwell supplies premium-quality hydraulic motors for the global hydraulic market. All our products deliver stable and reliable quality, allowing customers to purchase with full confidence. When it comes to cost-effective hydraulic motor suppliers in the current market, Xeriwell stands firmly among the top choices.

Our hydraulic motors have won wide recognition and high praise from global buyers. Superior build quality and consistent performance have earned us an excellent market reputation. With such reliable quality and competitive pricing, our hydraulic motors are definitely a worthwhile investment.

Xeriwell offers a full range of hydraulic motors with complete specifications and abundant model options. Our products are widely applied in agricultural machinery, forestry equipment, mining machinery and construction machinery, covering a broad range of mechanical application scenarios.
