  • BMER-4-375-WS-T4-R-FYD

  • Xeriwell or Others

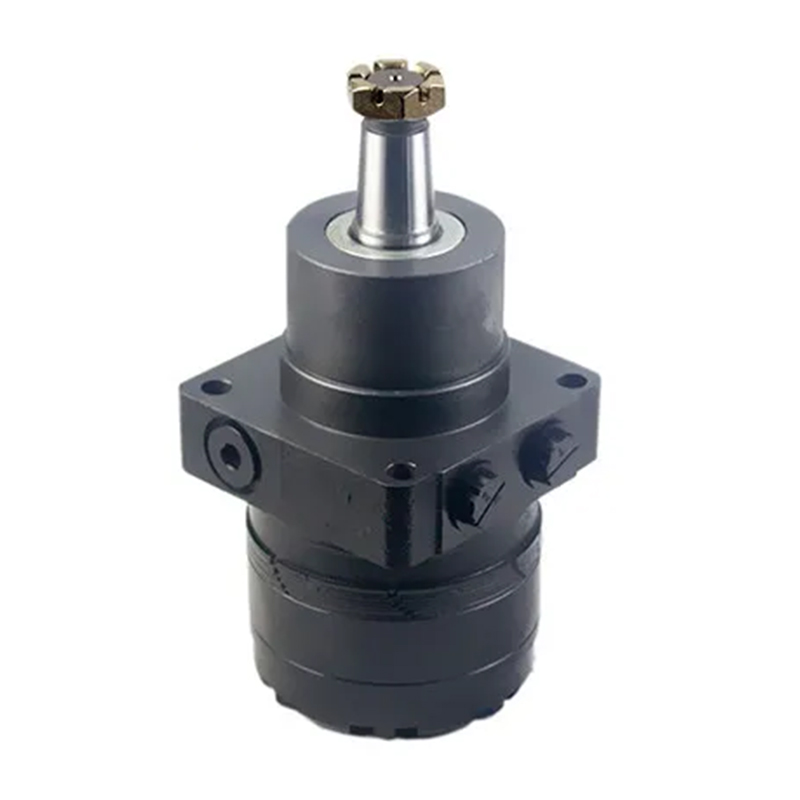

Product: Hydraulic Motor Model No.: BMER-4-375-WS-T4-R-FYD
Size: 375 Ml/r Flange: Wheel Mount
Shaft: 31.75mm Feature: With Valve Cavacity On Flange
Rotation: CCW Port: 7/8-14 O-ring
Highlight:

bmer low rpm hydraulic motor

,

parker tg low rpm hydraulic motor

,

parker tf low rpm hydraulic motor


China BMER Hydraulic motor manufactuter replace Parker TG TF with option valve cavacity


Quick review:

Xeriwell BMER = Parker TG, TF


When Parker motor users come to us looking for TG or TF hydraulic motors, we will recommend Xeriwell BMER series motors as replacements.

The reason is that BMER has a wide range of displacement, flange, oil port, shaft and hundreds of options to match the installation and application needs of different Parker motor users.

This BMER motor features selectable valve cavacity in flange position
The valve cavacity of ParkerTG and TF motors is under the motor, while Xeriwell design is at the flange position.
Compatible with Parker TG valve cavacity function in terms of performance
More compact and concise in design
Better cost control from a cost perspective
This motor is suitable for customers who pursue quality without paying too much for brand premiums.
If you are an OEM, this motor can help you obtain the necessary performance while saving unnecessary expenses.
If you are a hydraulic motor importer, this motor can complement the shortcomings of your existing products, provide your customers with another choice, demonstrate your professionalism in the field of hydraulic motors, and meet the needs of your target customer groups.


Specification:

Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.)
118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90


More BMER series to match Parker TF series

More Parker replacement motor available:

  • TE

  • TB

  • TC

  • TF

  • TG

  • TJ

  • TK
