| Quantity: | |
|---|---|
BK2-1-430-A-A
Xeriwell or Others

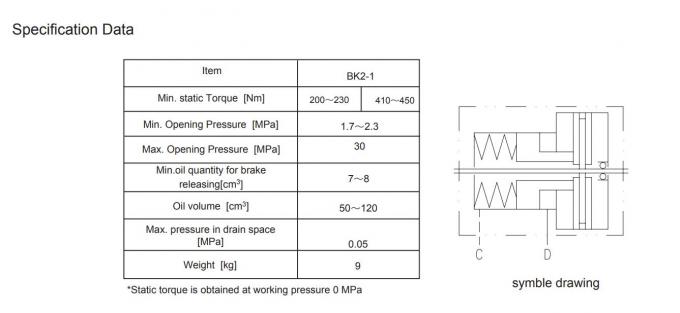

| Type: | Hydraulic Motor Brake | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BK2-1-430-A-A | Min Static Torque: | 410 - 450 Nm |
| Min Opening Pressure: | 1.7 - 2.3 MPa | Max Opening Pressure: | 30 MPa |
| Min Oil Qty For Brake Releasing: | 7 - 8 Cm3 | Oil Volume: | 50 - 120 Cm3 |
| Max Pressure In Drain Space: | 0.05 MPa | Application: | Cranes, Construction |
| Highlight: | bk2-1-430-a-a motor orbit hydraulic,300 bar motor orbit hydraulic | ||
Quick details:

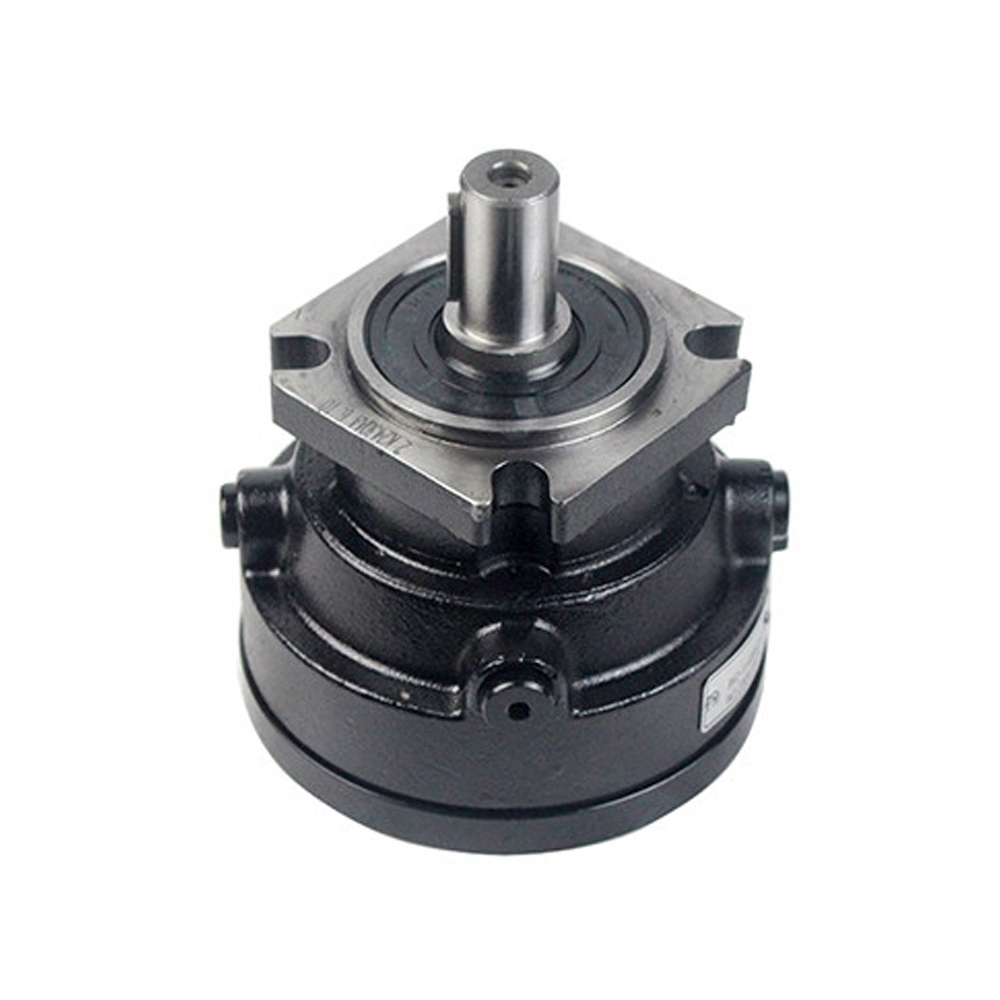

BK2 series hydraulic brake.

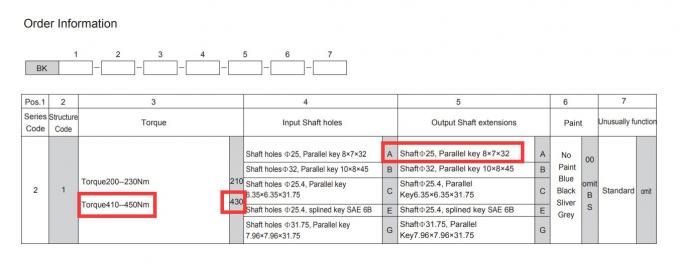

PART NO: BK2-1-430-A-A
Minimum operating pressure: 17-23 bar
Maximum pressure: 300 bar
Input shaft: 25mm cylindrical

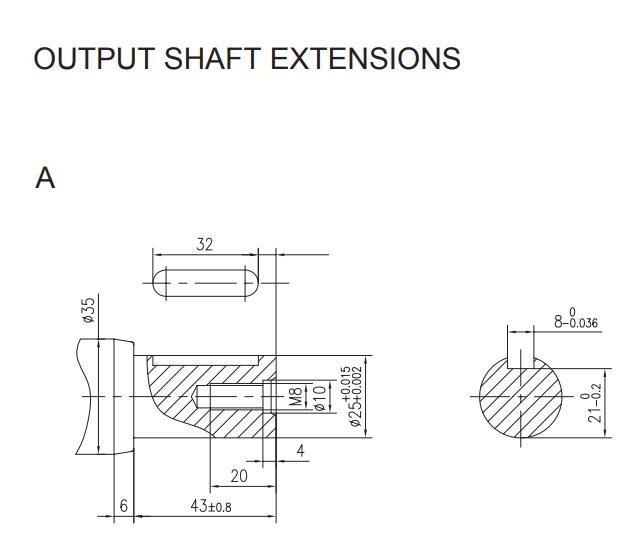

Output shaft: 25mm cylindrical
Minimum static torque: 410-450 Nm
Suitable for use with BMP ( MP) & BMR ( MR) Series Hydraulic Motors

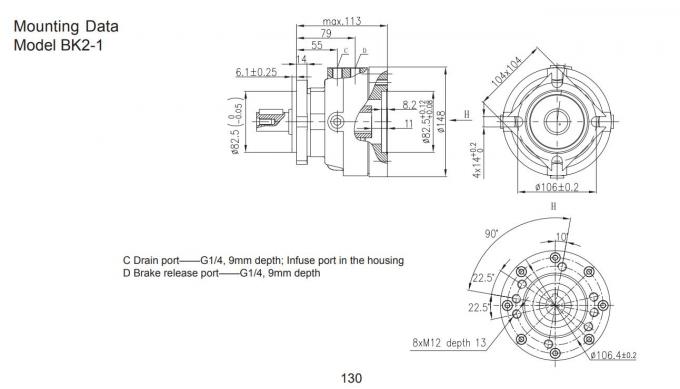

The BK2 series is a wet disc brake that adopts a high friction disc and high strength spring design to produce a robust, low noise, high braking component. With a 4 Drain port design, compact structure and easy mounting, this brake can be used for different applications and is suitable for use with BMP & BMR series hydraulic motors. It is widely used on heavy duty machinery in all types of applications including cranes, construction, material handling, agriculture, mining and forestry. It can also be used for winches and hydro-static drive systems.
| Specification Data of Hydraulic Motors | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Axial distribution | BMM | 8-50 | 14 | 30-1950 | 3.2 |
| BMP | 36-400 | 16.5 | 30-879 | 10 | |
| BMR | 36-375 | 20 | 30-970 | 15 | |
| BMH | 200-500 | 20 | 30-430 | 17 | |
| Specification Data of Hydraulic Motor | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Disc distribution | BMS | 80-475 | 22.5 | 30-800 | 24 |
| BMT | 160-800 | 24 | 30-705 | 35 | |
| BMV | 315-800 | 28 | 10-446 | 43 | |
