| Quantity: | |
|---|---|
BMTJ
Xeriwell or Others
| Features: | Danfoss, White, Eaton Replacement | Item: | LSHT Motors |
|---|---|---|---|
| Type: | Orbital | Series: | OMT |
| Displacement: | 230 Cm3/r | Manufactuerer: | Xeriwell |
| Origin: | China | Replacement Series: | BMTJ |
| Highlight: | bearingless motor With Reducer,Heavy Conveyor bearingless motor,Crushing bearingless motor | ||
This bearingless motor has the same drive components as the standard and wheel motors (with the exception that the motor is assembled without the output shaft, bearings and bearing housing). The bearingless motor is especially suited for applications such as gear boxes, winch drives, reel and roll drives. Bearingless motor applications must be designed with a bearing supported internal spline to mate with the bearingless motor drive. Product designs using these hydraulic motors provide considerable cost savings.
The following is the introduction of the product:
| Model number: | BMTJ-230-JSF5 |
| Geometric displacement (cm3 /rev.) | 232.5 |
| Max. speed (rpm) | cont. 536 int. 643 |
| Max. torque (N•m) | cont. 670 int. 821 peak 958 |
| Max. flow (L/min) | cont. 125 int. 150 |
Most popular brands currently are Danfoss, Char lynn, Parker, Brevini, Xeriwell, M+S, Walvoil, Rexroth, Cassapa, etc., each with its own merits. Market's becoming ever more competitive, many people tend to look for quality and better price both. Why more and more choose Xeriwell is because it has obvious advantages over other brands in terms of delivery, service, quality and profit rate

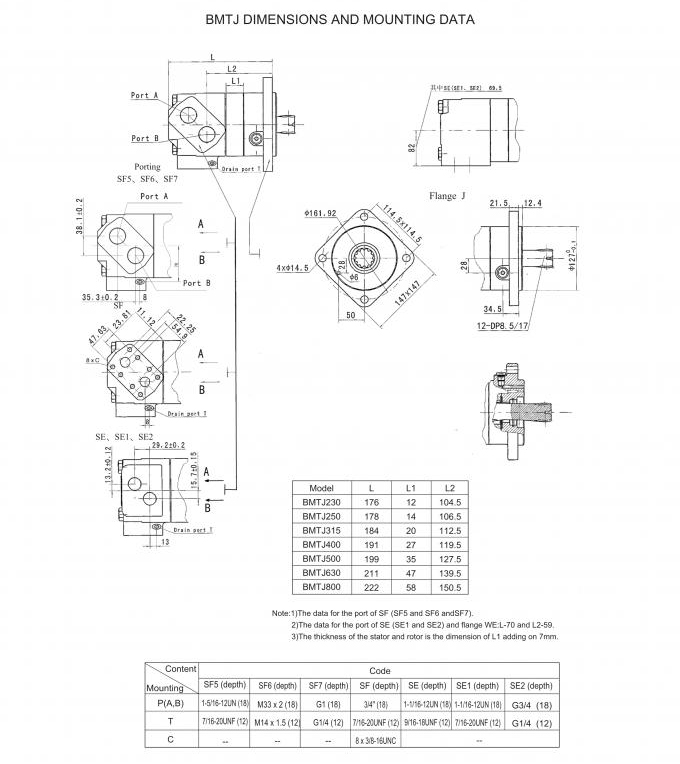

| Model | L | L1 | L2 |
| BMTJ230 | 176 | 12 | 104.5 |
| BMTJ250 | 178 | 14 | 106.5 |
| BMTJ315 | 184 | 20 | 112.5 |
| BMTJ400 | 191 | 27 | 119.5 |
| BMTJ500 | 199 | 35 | 127.5 |
| BMTJ830 | 211 | 47 | 139.5 |
| BMTJ800 | 222 | 58 | 150.5 |
| Note:1)The data for the port of SF (SF5 and SF6 and SF7). 2)The data for the port of SE (SE1 and SE2) and flange WE.L-70 and L2-59. 3)The thickness of the stator and rotor is the dimension of L1 adding on 7mm. | |||
| Content Mounting | Code | ||||||
| SFS (depth) | SFE (depth) | SFT (depth) | SF (depth) | SE (depth) | SE1 (depth) | SE2 (depth) | |
| P(A,B) | 1-9/16-12UN (18) | M33 x 2 (18) | G11(18) | 3/4" (18) | 1-11/16-12UN (18) | 1-11/16-12UN (18) | G3/4 (18) |
| T | 7/16-20UNF (12) | M14 x 1.5 (12) | G14 (12) | 7/16-20UNF (12) | 9/16-18UNF (12) | 7/16-20UNF (12) | G1/4 (12) |
| C | -- | -- | -- | 8 x 3/8-18UNC | -- | ||
