| Quantity: | |
|---|---|
BMSS
Xeriwell or Others
| Products Name: | Hydraulic Motor/orbital Hydraulic Motor | Mode: | Geroler Gear Set |
|---|---|---|---|
| Displacement: | 160cc -800cc | Material: | Cast Iron |
| Color: | Blue, Grey Or Black | Flange: | Circle-flange Ans Square-flange |
| Highlight: | fixed displacement hydraulic motor,hydraulic pump motor | ||

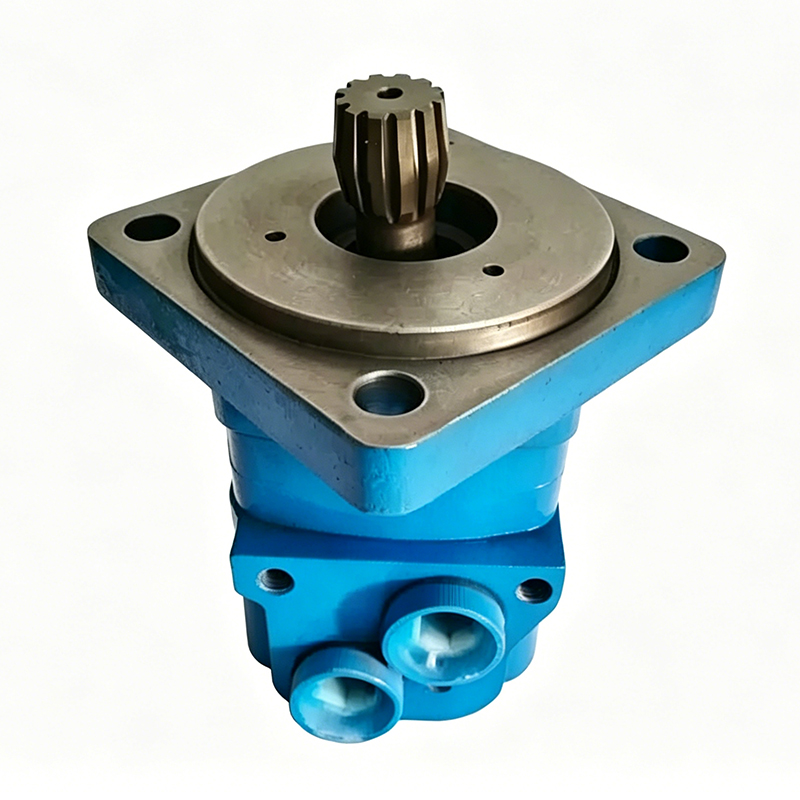

Low RPM Hydraulic Motor Bearingless BMSS For Construction Equipments Hydraulic Parts
Description:
Eaton 4000 series 109-xxx-xxx /110-xxx-xxx/111-xxx-xxx high pressure orbit hydrualic motor
The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, resulting in higher torques and efficiencies throughout the line. All motors come in Standard Mount (109-xxxx), Wheel Mount (110-xxxx) or Bearingless (111-xxxx) variations. The disc valve product family offers many shaft, port, and speed sensor options that answer directly to the specific needs of each application.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation
Specifications:
| Type | BMTS 160 | BMTS 200 | BMTS 230 | BMTS 250 | BMTS 315 | BMTS 400 | BMTS 500 | BMTS 630 | BMTS 800 | |
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N• m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (Mpa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
Applications:
Xeriwell hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
* An agricultural use: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.
* Fishing with: hauling machine.
* Light industry: winding machines, textile machines, printing presses, operating with a washing machine.
* Construction industry: rollers, cement mixers, cleaning cars.
* Machines like: Sprinkler, Mini excavator, Driven scraper conveyor, Screw, Baler, Hydraulic Winch, Fishing Boat, Plastic Injection mold machine, Cleaner, Grass cutter, Winches, Conveyors, Slews, Sweeper Drives, Augers Cutters, Mowers, Chippers, Drilling Machines, Municipal Machinery, Agriculture, Forestry and Construction Equipments etc.
