BZZ1-E280BA-H
Xeriwell or Others
| Item: | Hydraulic Steering Unit | Model No.: | BZZ1-E280BA-H |
|---|---|---|---|
| Displacement: | 280ml/r | Apply To: | Forklift |
| Highlight: | BZZ1-E280BA-H Hydraulic Steering Unit,BZZ1-E280BA-H Forklift Spare Parts,Hydraulic Steering Unit For 10t | ||

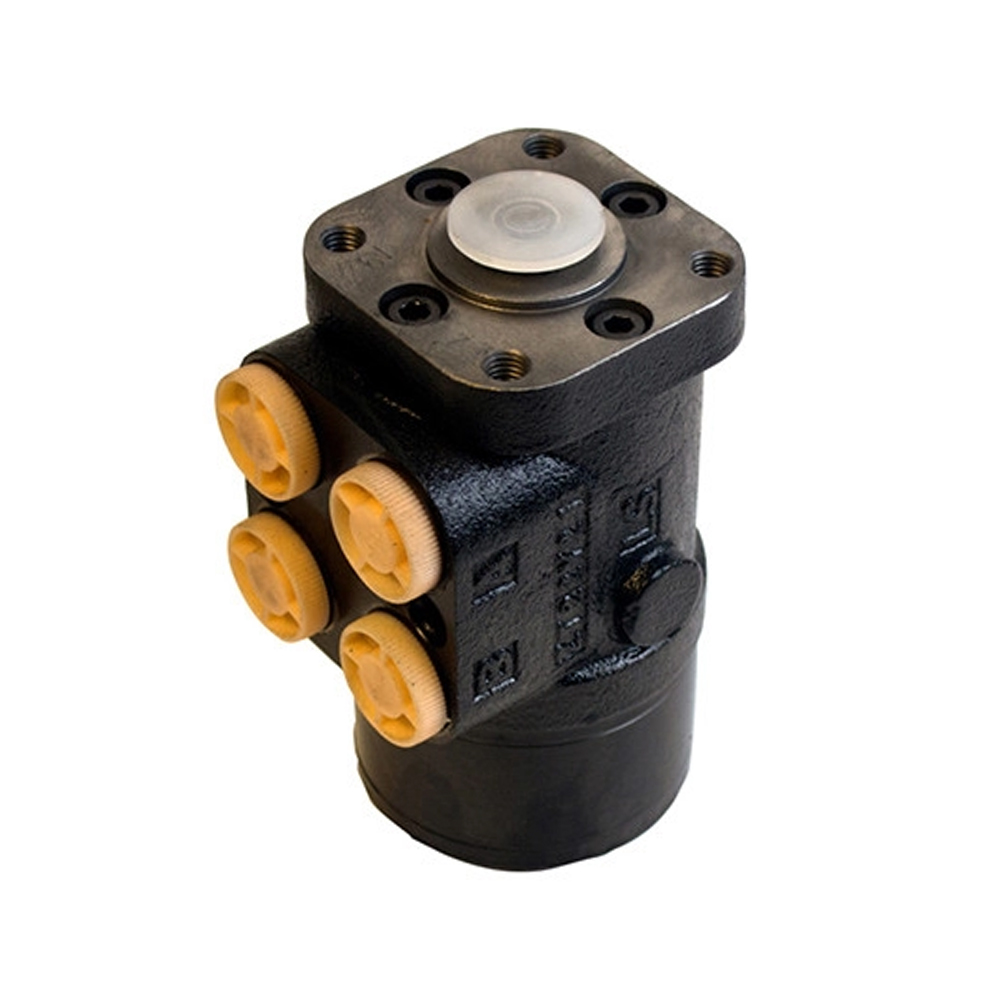

BZZ1-E280BA-H Forklift Parts Hydraulic Steering Unit Used for 5-10t
This BZZ-280 is a special type to be used on Forklift 5 - 10T
They are inexpensive, but excellent compatible with OEM P/N
Specification:
| Type | Displacement (mL/r) | Flow (L/min) | Max.input pressure (MPa) | Max. cont. back pressure (MPa) | Length (mm) |
| BZZ (1.2.3)–E50 * | 50 | 4 | 16 | 2.5 | 140 |
| BZZ(1.2.3) –E63 * | 60 | 5 | 141 | ||
| BZZ(1.2.3) –E80 * | 80 | 6 | 142.5 | ||
| BZZ(1.2.3) –E100 * | 10 | 7.5 | 145 | ||
| BZZ(1.2.3) –E125 * | 125 | 9.5 | 148 | ||
| BZZ (1.2.3)–E160 * | 160 | 12 | 153 | ||
| BZZ(1.2.3) –E200 * | 200 | 15 | 158 | ||
| BZZ (1.3)–E250 * | 250 | 19 | 164 | ||
| BZZ (1.3)–E280 * | 280 | 21 | 169 | ||
| BZZ (1.3)–E315 * | 315 | 24 | 174 | ||
| BZZ(1.3) –E400 * | 400 | 30 | 184 | ||
| BZZ (1.3)–E500 * | 500 | 38 | 197 | ||
| BZZ(1.3) –E630 * | 630 | 48 | 216 | ||
| BZZ (1.3)–E800 * | 800 | 60 | 236 | ||
| BZZ (1.3)–E1000 * | 10000 | 75 | 262 |
About Xeriwell:
Located in China, Hydraulic steering unit ( Orbitrol ) is one of Xeriwell's main specialty. We have Steering Unit for industrial, public works, marine, transportation, lifting, construction, agricultural and heavy road vehicles, etc., etc.
If you are importers, please contact us to talk work together.
