| Quantity: | |
|---|---|
BZZ
Xeriwell or Others
| Product Name: | General Steering Components Steering Units | Feature: | Check Valve, External Valve Block Option |
|---|---|---|---|
| Technology: | Open Center Non-reaction, Open Center Reaction, Close Center Non-reaction, Load Sensing | Oil Port: | G1/2" |
| Displacement: | 50cc-1000cc | Application: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Highlight: | power steering control unit,hydraulic steering gear | ||

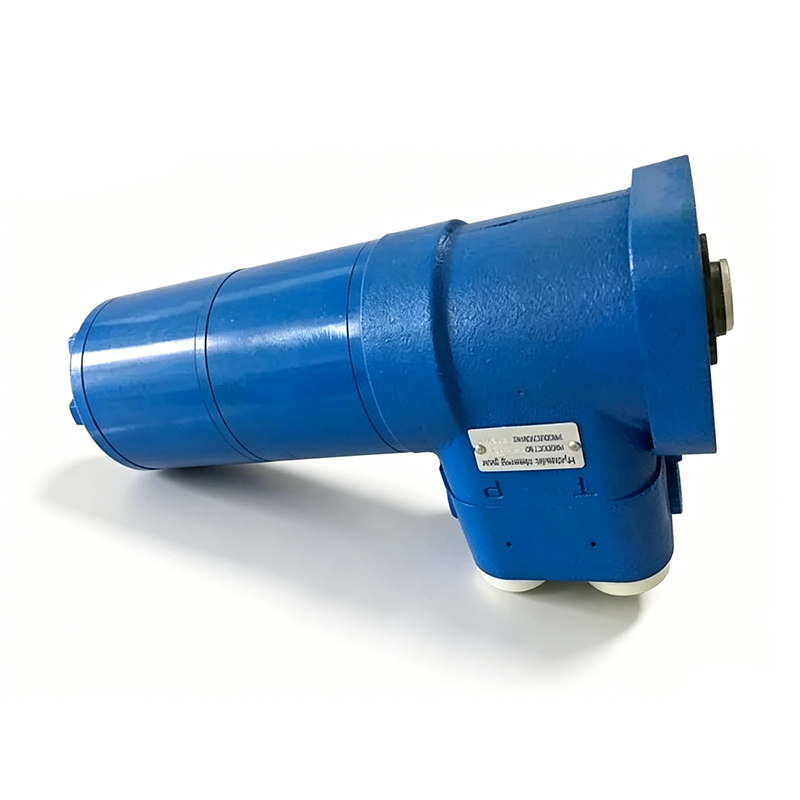

Hydraulic Orbitrols, Steering Units BZZ For Class / Tractors, Loaders
Advantages:
The advantages of the hydraulic steering control units:
1. Low cost, reliable.
2. No load reaction on the steering wheel comfortable.
3. Manual operation available when the pump doesnt work.
4. Low control torque, continuous operation.
5. According to the system, different function and pressure level valves available.
Specification:
| Type | Displacement (mL/r) | Flow (L/min) | Max.input pressure (MPa) | Max. cont. back pressure (MPa) | Length (mm) |
| BZZ (1.2.3)–E50 * | 50 | 4 | 16 | 2.5 | 140 |
| BZZ(1.2.3) –E63 * | 60 | 5 | 141 | ||
| BZZ(1.2.3) –E80 * | 80 | 6 | 142.5 | ||
| BZZ(1.2.3) –E100 * | 10 | 7.5 | 145 | ||
| BZZ(1.2.3) –E125 * | 125 | 9.5 | 148 | ||
| BZZ (1.2.3)–E160 * | 160 | 12 | 153 | ||
| BZZ(1.2.3) –E200 * | 200 | 15 | 158 | ||
| BZZ (1.3)–E250 * | 250 | 19 | 164 | ||
| BZZ (1.3)–E280 * | 280 | 21 | 169 | ||
| BZZ (1.3)–E315 * | 315 | 24 | 174 | ||
| BZZ(1.3) –E400 * | 400 | 30 | 184 | ||
| BZZ (1.3)–E500 * | 500 | 38 | 197 | ||
| BZZ(1.3) –E630 * | 630 | 48 | 216 | ||
| BZZ (1.3)–E800 * | 800 | 60 | 236 | ||
| BZZ (1.3)–E1000 * | 10000 | 75 | 262 |
