| Quantity: | |
|---|---|
BZZ100
Xeriwell or Others
| Features: | OEM Quality | Product Name: | Wheel Loader Forklifts Hydraulic Steering Unit |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 100cc |
| Application: | Big Loader,Forklifts | Model Number: | BZZ1-100-B-D |
| Highlight: | Eaton Hydraulic Steering Unit,Closed Center Hydraulic Steering Unit,Open Center Hydraulic Steering Unit | ||

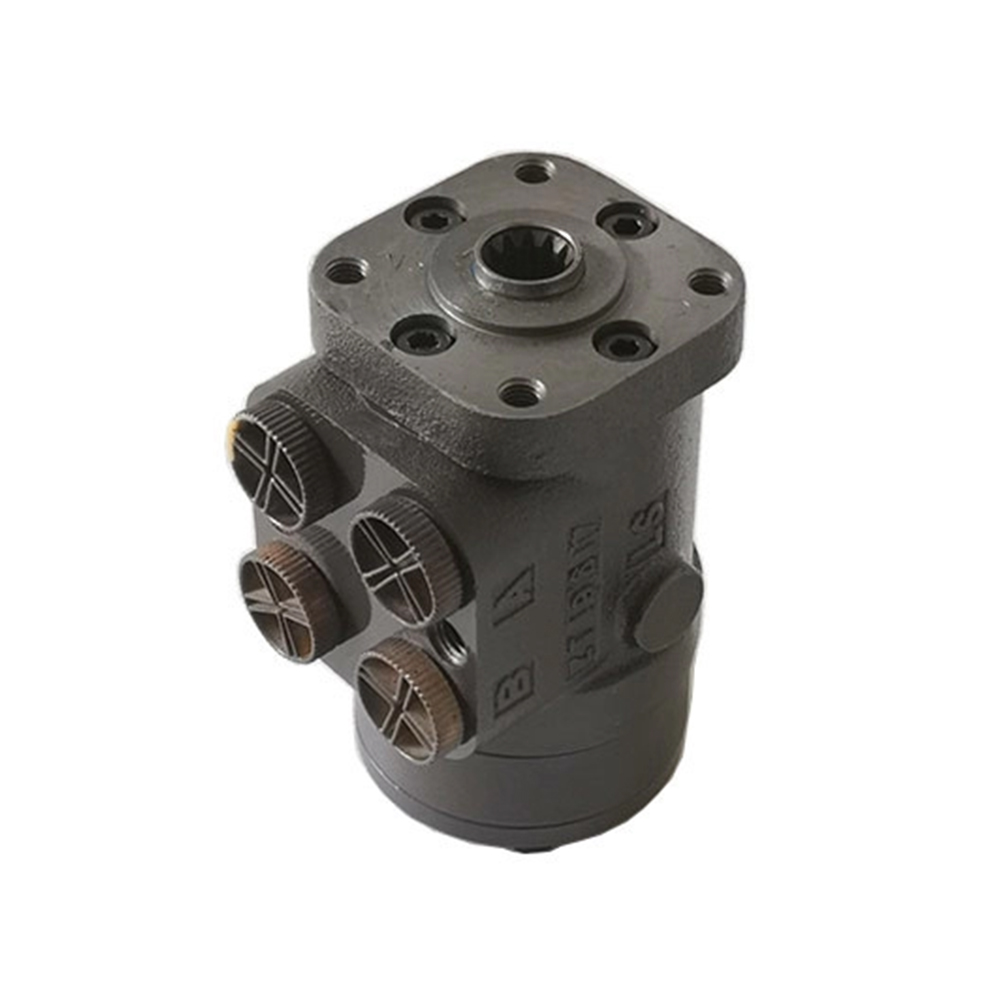

BZZ Hydraulic Steering Unit Compatible Eaton Hydraulic steering units XCEL45-100,open center, closed center
| Hydraulic Steering Units |
| BZZ1 Series |
| BZZ2 Series |
| BZZ3 Series |
| BZZ5 Series |
The advantages of the hydraulic steering control units:
1.Low cost, reliable.
2.No load reaction on the steering wheel comfortable.
3.Manual operation available when the pump doesnt work.
4.Low control torque, continuous operation.
5.According to the system, different function and pressure level valves available.
| 主要技术参数 Main Specification | ||||||
| 型 号 Type | 排 量 Displacement (mL/r) | 长 度 Length L(mm) | 方向盘允许最高转速 Max. input speed (rpm) | 最大入口压力 Max. input pressure (MPa) | 最大连续背压 Max. cont. back pressure (MPa) | 最大动力转向扭矩 Max. power steering torque (N·m) |
| BZZ5-E 50* | 50 | 140 | 100 | 16 | 1.6 | ≤5 |
| BZZ5-E 63* | 63 | 141 | ||||
| BZZ5-E 80* | 80 | 142.5 | ||||
| BZZ5-E 100* | 100 | 145 | ||||
| BZZ5-E 125* | 125 | 148 | ||||
| BZZ5-E 160* | 160 | 153 | ||||
| BZZ5-E 200* | 200 | 158 | ||||
| BZZ5-E 250* | 250 | 164 | ||||
| BZZ5-E 280* | 280 | 169 | 75 | |||
| BZZ5-E 315* | 315 | 174 | ||||
| BZZ5-E 400* | 400 | 184 | ||||
| BZZ5-E 500* | 500 | 197 | 60 | |||
| BZZ5-E 630* | 630 | 216 | ||||
| BZZ5-E 800* | 800 | 236 | ||||
| BZZ5-E 1000* | 1000 | 262 | ||||
| 类别 Category | 代码 Code | P、T、A、B油口 Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Valve Mounting V | LS油口 Port LS |
| 油口代码 Ports Code | （缺省） (omit) | M20×1.5 | M10 | M12 | M12×1.5 |
| A | M18×1.5 | M10 | M12 | M12×1.5 | |
| B | G1/2 | M10 | M10×1 | G1/4 | |
| C | 3/4-16UNF O-ring | 3/8-16UNC | 3/8-24UNF | 7/16-20UNF O-ring | |
| D | M20×1.5 O-ring | M10 | M12 | M12×1.5 O-ring | |
| E | M18×1.5 O-ring | M10 | M12 | M12×1.5 O-ring | |
| G | M22×1.5 | M10 | M12 | M12×1.5 | |
| Q | M22×1.5 O-ring | M10 | M12 | M12×1.5 O-ring | |
| U | G1/2 O-ring | M10 | M10×1 | G1/4 O-ring | |
| M | 3/4-16UNF O-ring | M10 | M12 | 7/16-20UNF O-ring | |
| I | 3/4-16UNF O-ring | M10 | M10 | 7/16-20UNF O-ring | |
| N | 3/4-16UNF O-ring | M10×1.25 | M10 | 7/16-20UNF O-ring | |
| R | P,T：M22×1.5 A,B：M18×1.5 | M10 | M12 | M12×1.5 | |
| S | P,T：M22×1.5 O-ring A,B：M18×1.5 O-ring | M10 | M12 | M12×1.5 | |
