| Quantity: | |
|---|---|
BMTS
Xeriwell or Others
| Type: | Hydraulic Bearingless Motor | Model: | BMTS/OMTS/MTS |
|---|---|---|---|
| Displacement: | 500cc | Warranty Time: | 12 Months |
| Cetificate: | CE | SPEED: | Cont.240rpm/int.285rpm |
| Highlight: | 500cc Bearingless Motor,Hydraulic Bearingless Motor,BMTS Bearingless Motor | ||

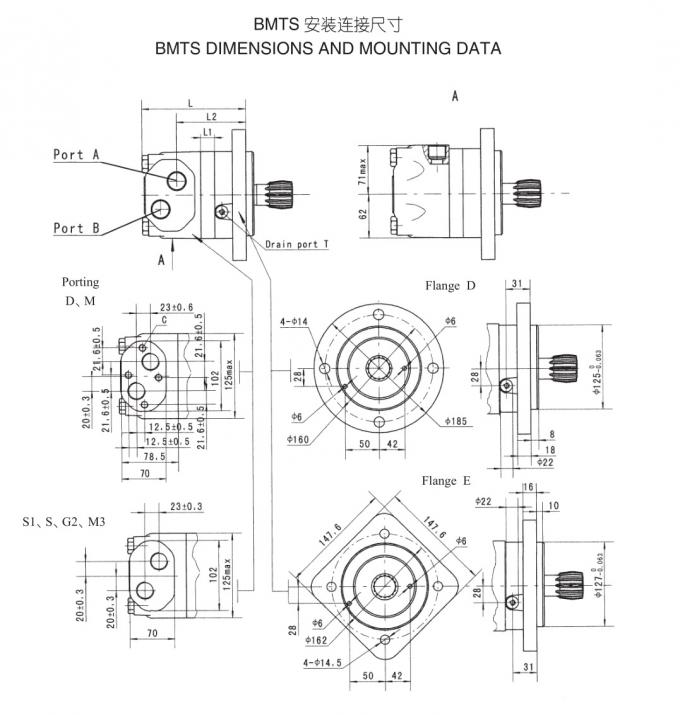

BMTS / OMTS hydraulic bearingless motor,φ147mm square flange, 16 teeth spline shaft
BMTS/OMTS series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Product details
| product type | BMTS |
| displacement | 500c |
| flange | 4-φ14 circle-flange φ147.6, pilotφ127X8 |
| outshaft | short shaft 16-DP12/24 |
| oil ports | G3/4,1-1/16-12UNF |
Main Specifications:
| Type | BMTS 160 | BMTS 200 | BMTS 230 | BMTS 250 | BMTS 315 | BMTS 400 | BMTS 500 | BMTS 630 | BMTS 800 | |
Displacement (cm3/rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max.speed (rpm) | cont. | 625 | 325 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
Max. Torque (N•m) | con. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| Max.output (kW) | con. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
Max. pressure drop (MPa) | con. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max.flow (L/min) | con. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
Max. Inlet pressure(MPa) | con. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Net Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
Application areas:
1) Conveyors
2) Metal working machine
3) Agriculture machines
4) Road building machines
5) Mining machinery
6) Food industries
7) Special vehicles
8) Plastic and rubber machinery
Xeriwell hydraulic profssion supply all series hydraulic motor like
OMM/OMP/OK/OMR/OMH/DS/DH/OMS/OMT/OMV/BRAKE MOTOR

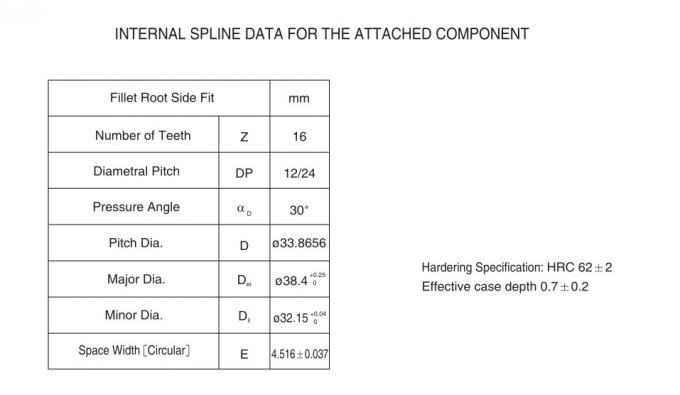

| Fillet Root Side Fit | mm | |
| Number of Teeth | Z | 16 |
| Diametral Pitch | DP | 12./24 |
| Pressure Angle | αo | 30° |
| Pitch Dia. | D | φ33.8656 |
| Major Dia. | Dm | φ38.4 +0.25 |
| Minor Dia. | Di | φ32.15 +0.04 |
| Space Width [Circular] | E | 4.516±0.037 |
