| Quantity: | |
|---|---|
BMTS
Xeriwell or Others
| Type: | Hydraulic Bearingless Motor | Model: | BMTS |
|---|---|---|---|
| Displacement: | 315cc | Warranty Time: | 12-18 Months |
| Cetificate: | CE | Place Of Origin: | China |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

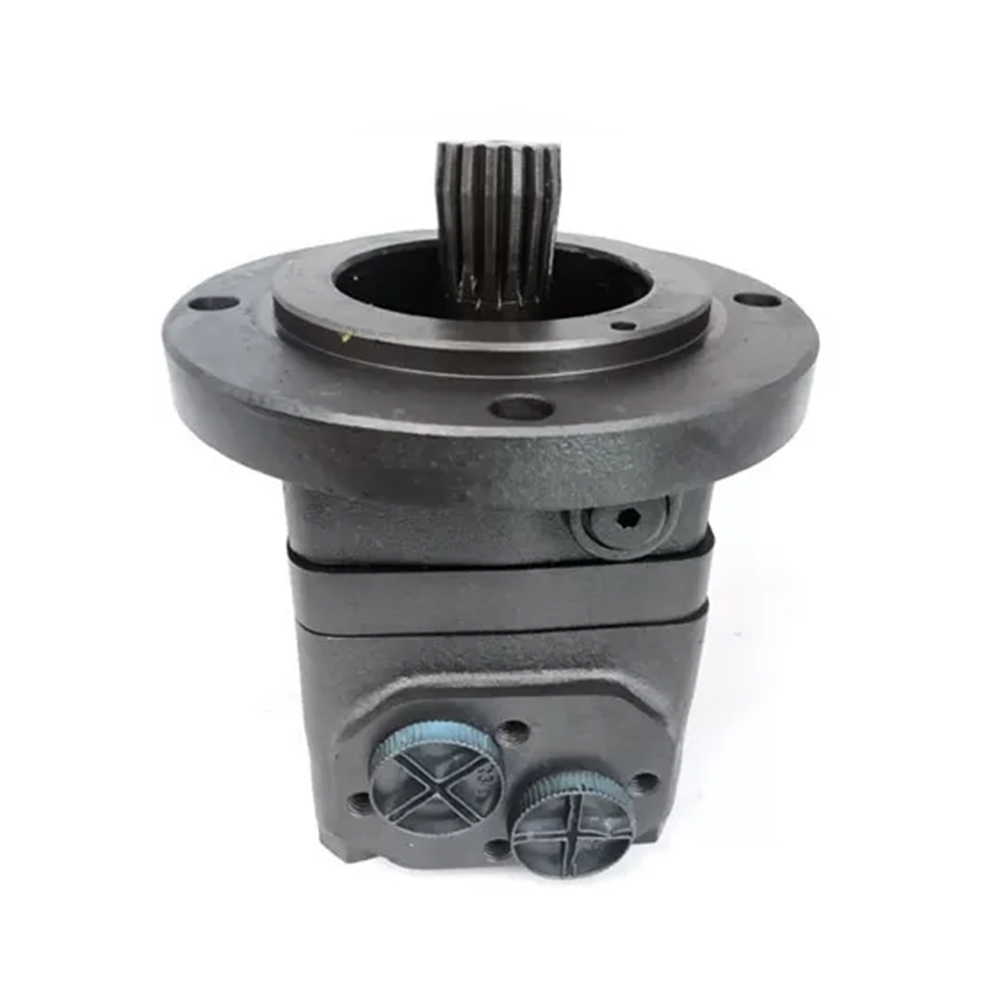

BMTS / OMTS FUCHS 722M wheel excavator hydraulic motors 151B3039 Bearingless Orbital Motor
Description:
The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, resulting in higher torques and efficiencies throughout the line. The disc valve product family offers many shaft, port, and speed sensor options that answer directly to the specific needs of each application.
Characteristic features:
1. Advanced manufacturing devices for the Geroler gear set,which use low pressure of
start-up, provide smooth and reliable operation and high efficiency.
2. The output shaft adapts in tapered roller bearings that permit high axial and radial
forces.Can offer capacities of high pressure and high torque in the wide of applications.
3. Advanced design in disc distrbution flow, which can automatically compensate in
operating with high volume efficiency and long life, provide smooth and reliable operation
Applications:
The bearingless motor is especially suited for applications such as gear boxes, winchdrives, wheel excavators
- Fuchs 720 wheel excavator
- Fuchs 722M wheel excavator
Product details：
| product type | BMTS |
| displacement | 315cc |

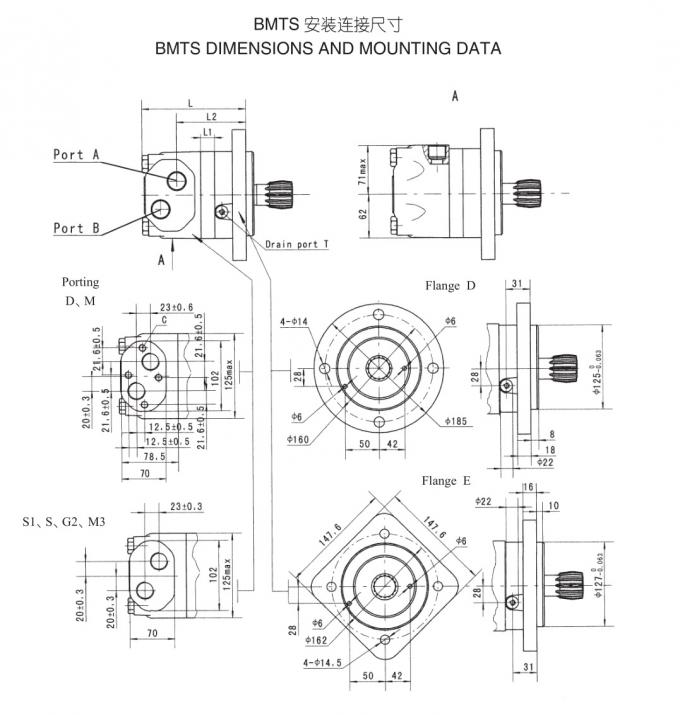

| flange | 4-φ14 circle-flange φ160, pilotφ125X8 |

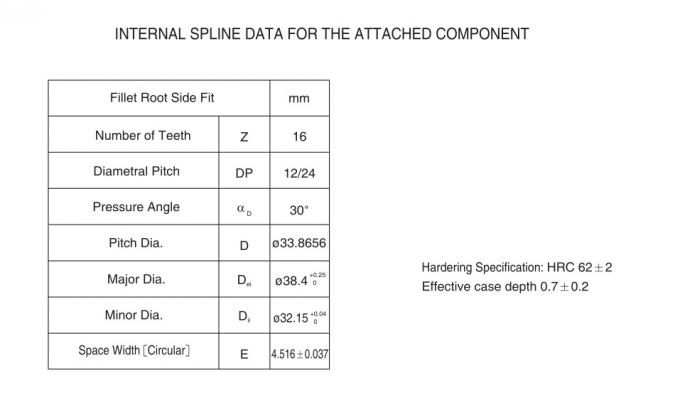

| outshaft | short shaft 16-DP12/24 |
| oil ports | G3/4,G1/4 |
Main Specifications:
| Type | BMTS 160 | BMTS 200 | BMTS 230 | BMTS 250 | BMTS 315 | BMTS 400 | BMTS 500 | BMTS 630 | BMTS 800 | |
Displacement (cm3/rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max.speed (rpm) | cont. | 625 | 325 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
Max. Torque (N•m) | con. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| Max.output (kW) | con. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
Max. pressure drop (MPa) | con. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max.flow (L/min) | con. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
Max. Inlet pressure(MPa) | con. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Net Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
