| Product Name: | Industrial Hydraulic Motor | Model Number: | BMTS |
|---|---|---|---|
| Place Of Origin: | China | Material: | CAST IRON |
| Color: | No Paint/blue/black | Internal Structure: | Gerolor Gear Set |
| Highlight: | high torque gear motor,low speed gear motor | ||

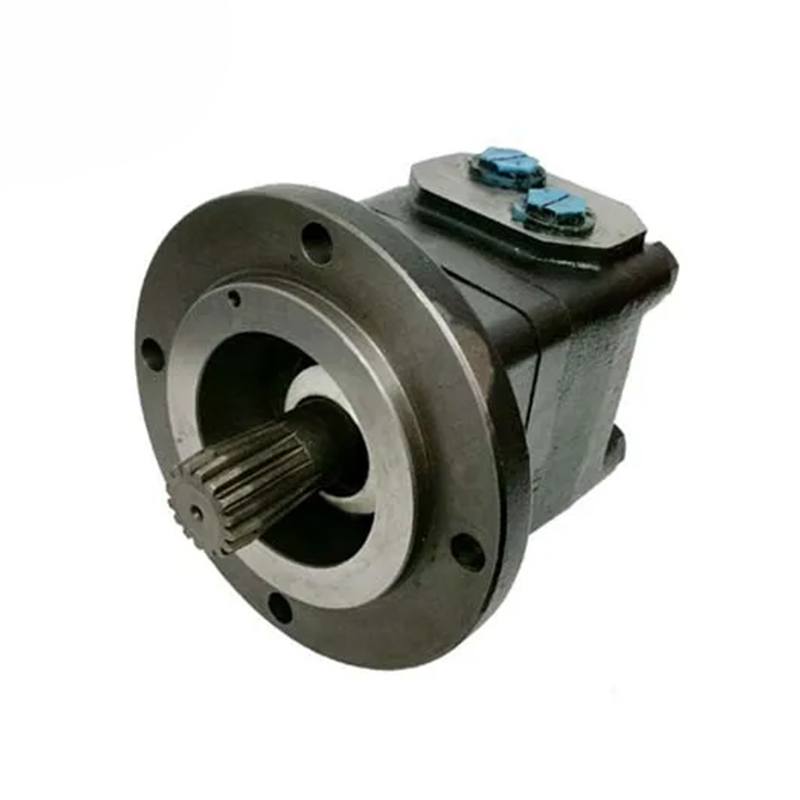

Hydraulic Gear Motor BMTS Bobcat 743B Skid Steer, Drive Motor
BMTS series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
| Type | BMTS 160 | BMTS 200 | BMTS 230 | BMTS 250 | BMTS 315 | BMTS 400 | BMTS 500 | BMTS 630 | BMTS 800 | |
| Displacement (cc/rev) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
Max torque (n.m) | cont | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
Max pressure (Mpa) | cont | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| Max speed ) | cont | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
Max flow (L/min) | cont | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Weight(kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
Hydraulic Motor BMTS Mainly used in metal cutting machine tools and machine tools, agricultural and forestry machinery, construction machinery. Injection molding and rubber machinery, metallurgy equipment, marine equipment and special vehicles. Sliding equipment.
