BMTS-500-E-S
Xeriwell or Others
| Item: | Orbital Hydraulic Motor | Model Number: | BMTS-500-E-S |
|---|---|---|---|
| Size: | 500 Ml/r | Manufacturer: | Xeriwell |
| Highlight: | Bearingless Hydraulic Motor,BMT Geroler Orbital Motors,500ml/r Hydraulic Motor | ||

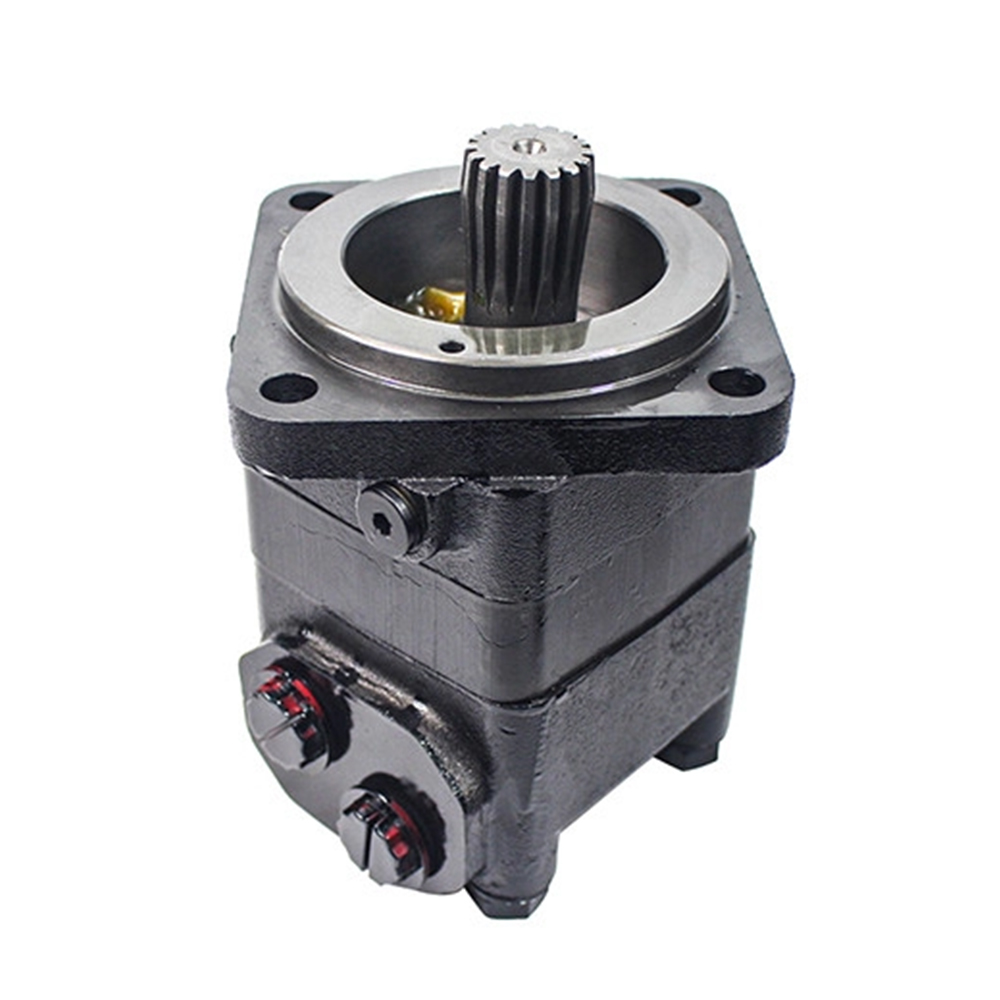

This series is the BMT series hydraulic motor
Model: BMTS-500-E-S
Displacement: 500ml/r
Flange: 4-Ø14.5 Square-flange Ø162, pilot Ø127×10
Shaft: Bearingless short shaft
Rotation :Standard
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
