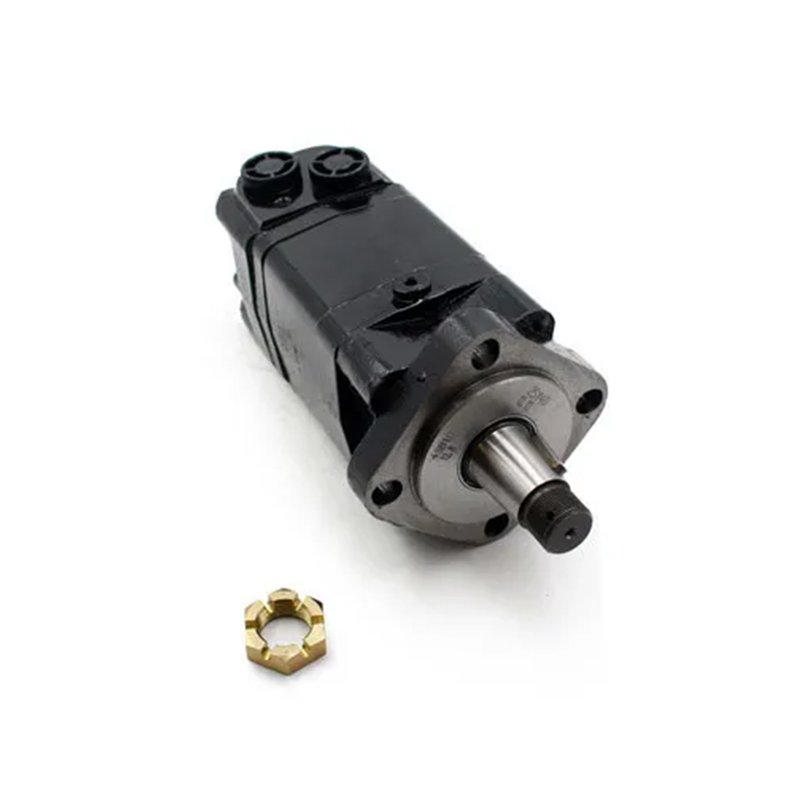

BMSY Series Hydraulic Drive Motor | Cotton Conveyor Component, 31.75mm Tapered Shaft, Side Ports

BMSY Series Hydraulic Drive Motor | Cotton Conveyor Component, 31.75mm Tapered Shaft, Side Ports

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMSY400
Brand:
Xeriwell or Others

Product Description

Product:	Cotton Conveyor	Displacement:	400ml/r
Flange:	4 Bolts Square Flange	Shaft:	31.75mm
Max Flow:	Cont.75/int.90 L/min	Max Speed:	Cont.185/int.225rpm
Highlight:	BMSY Hydraulic Drive Motor , 31.75mm Hydraulic Drive Motor , 400ml/r Hydraulic Drive Motor

BMSY Hydraulic Drive Motor Cotton Conveyor Parts Cone Shaft 31.75mm Side Ports

The hydraulic motor is an executive component of a hydraulic system, which converts hydraulic pressure energy supplied by the hydraulic pump into mechanical energy (torque and rotational speed) at its output shaft. Hydraulic fluid acts as the medium for transmitting force and motion.

Hydraulic motors, also referred to as oil motors, are widely applied in injection molding machines, marine vessels, hoists, construction machinery, coal mining equipment, mining machinery, metallurgical machinery, ship‑borne machinery, petrochemical equipment, port machinery and other fields.

According to structural types, hydraulic motors can be classified into gear‑type, vane‑type, piston‑type and orbit‑type motors.

An orbit motor consists of a stator and a rotor assembly. The stator, rotor and drive shaft separate the motor into two working chambers, each equipped with an oil port. When pressurized oil enters one port, oil is discharged from the other, driving the rotor to rotate.

Orbit motors feature compact size, light weight, favorable self‑priming performance and easy maintenance.

However, they also have drawbacks including high pressure and flow pulsation, low volumetric efficiency, limited input pressure and relatively low output torque. For this reason, orbit hydraulic motors are suitable only for medium‑low speed and low‑torque working conditions.

Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	394	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	880	910
	int.	240	300	370	430	466	540	658	980	990
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11	9
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	12	11
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	16	14
	int.	21	21	21	21	16	16	14	19	15
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Product details

Flange:4 bolts square flange φ106.4,pilotφ82.5X6.3

shaft:Shaft Ø 31.75 , cone shaft

ports:G1/2 Manifold Mount; side ports
