BMSY-315-E4-F-D
Xeriwell or Others
| Product: | Hydraulic Motor | Model No.: | BMSY-315-E4-F-D |
|---|---|---|---|
| Flange: | 4 Bolt | Brand: | Xeriwell |
| Highlight: | China Hydraulic Motor Factory Orbital Motors,240RPM Orbital Motors,311cc Orbital Motors | ||
BMSY-315-E4-F-D Orbital Motors BMSY, 311cc, 240RPM, China Hydraulic Motor Factory, Wholesale price
Quick review:
| Model No. | BMSY-315-E4-F-D |
Shaft | 31.75mm Cylindrical |
| Geometric displacement | 315 cm³ |
Xeriwell BMSY 315 apply to Skid Steer Attachments
Also BMSY series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.
Specification:
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

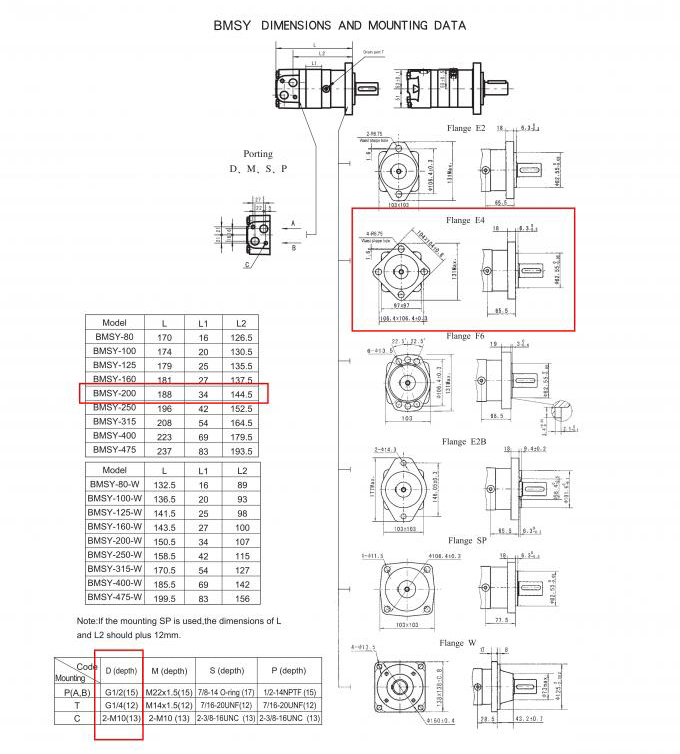

Dimentions:
About Xeriwell:
Xeriwell technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
| Model | L | L1 | L2 |
| BMSY-80 | 170 | 16 | 126.5 |
| BMSY-100 | 174 | 20 | 130.5 |
| BMSY-125 | 179 | 25 | 135.5 |
| BMSY-160 | 181 | 27 | 137.5 |
| BMSY-200 | 188 | 34 | 144.5 |
| BMSY-250 | 196 | 42 | 152.5 |
| BMSY-315 | 208 | 54 | 164.5 |
| BMSY-400 | 223 | 69 | 179.5 |
| BMSY-475 | 237 | 83 | 193.5 |
| Model | L | L1 | L2 |
| BMSY-80-W | 132.5 | 16 | 89 |
| BMSY-100-W | 136.5 | 20 | 93 |
| BMSY-125-W | 141.5 | 25 | 98 |
| BMSY-160-W | 143.5 | 27 | 100 |
| BMSY-200-W | 150.5 | 34 | 107 |
| BMSY-250-W | 158.5 | 42 | 115 |
| BMSY-315-W | 170.5 | 54 | 127 |
| BMSY-400-W | 185.5 | 69 | 142 |
| BMSY-475-W | 199.5 | 83 | 156 |
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) |
| P(A,B) | G1/2(15) | M22x1.5(15) | 7/8-14 O-ring (17) | 1/2-14NPTF (15) |
| T | G1/4(12) | M14x1.5(12) | 7/16-20UNF(12) | 7/16-20UNF(12) |
| C | 2-M10(13) | 2-M10 (13) | 2-3/8-16UNC (13) | 2-3/8-16UNC (13) |
