BMSY-200-WE-F-MU-B
Xeriwell or Others
| Product: | Hydraulic Motor | Model No.: | BMSY-200-WE-F-MU-B |
|---|---|---|---|
| Manufacturer: | Xeriwell | Brand: | Xeriwell |
| Highlight: | 200cc BMSY series Orbital Motors,side port BMSY series Orbital Motors,200cc orbit hydraulic motor | ||

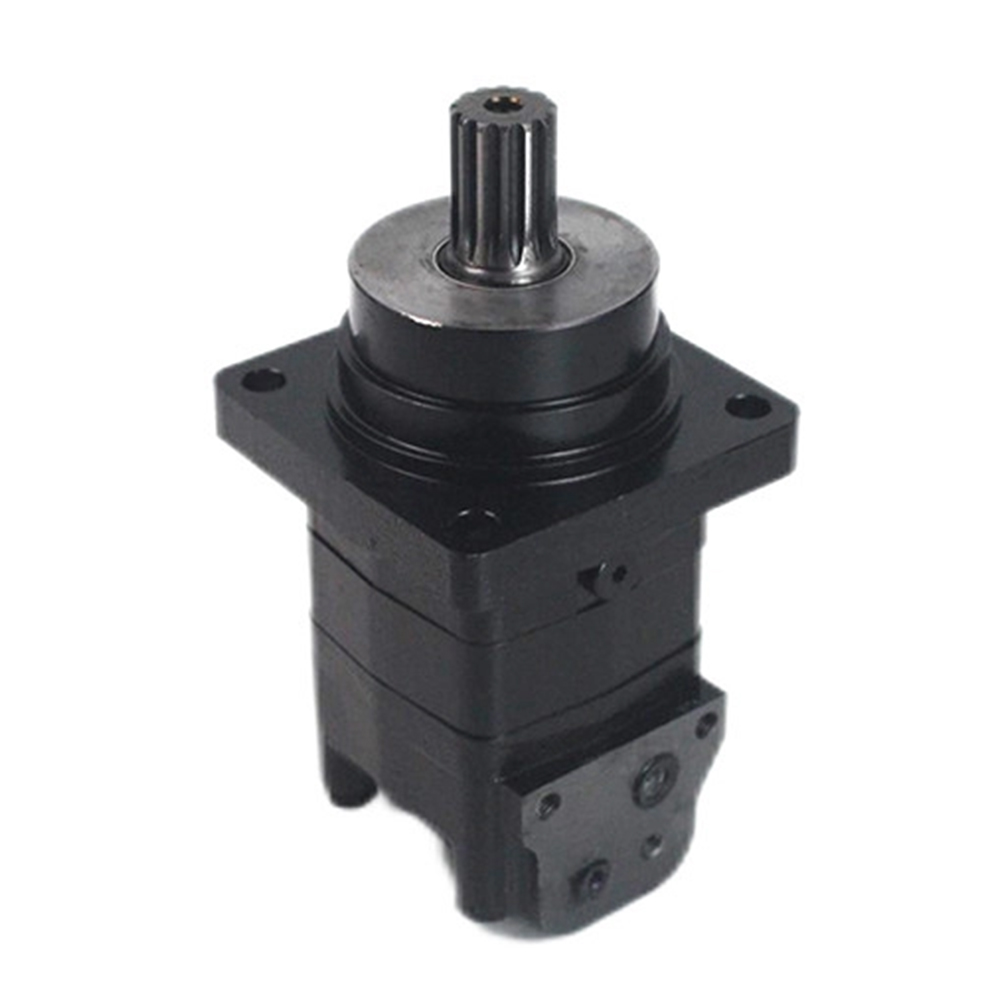

Orbital Motors BMSY series BMSY-200-WE-F-MU-B wheel mounted 200cc spline shaft
Quick review:
BMSY-200-WE-F-MU-B
Port Size:manifold ports,φ12.7,φ15.8
flange: wheel mounting
displacement:200cc
Shaft:31.75mm,14 teeth spline shaft
Port Location:side ported
Flow Rating :75l/min
Max Speed:cont.240rpm,int.280 rpm
Shaft seal:High pressure seal Kit
function:low leakage
Country of Manufacture China
BMS series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
