| Quantity: | |
|---|---|
BMSW
Xeriwell or Others
| Product: | Hydraulic Wheel Motor | Displacement: | 315-985cc |
|---|---|---|---|
| Feature: | Same As OMSW | HS Code: | 84122910 |
| Brand: | Xeriwell | Warranty Time: | 12-18months |
| Highlight: | hydraulic wheel drive motors,spool valve motor | ||

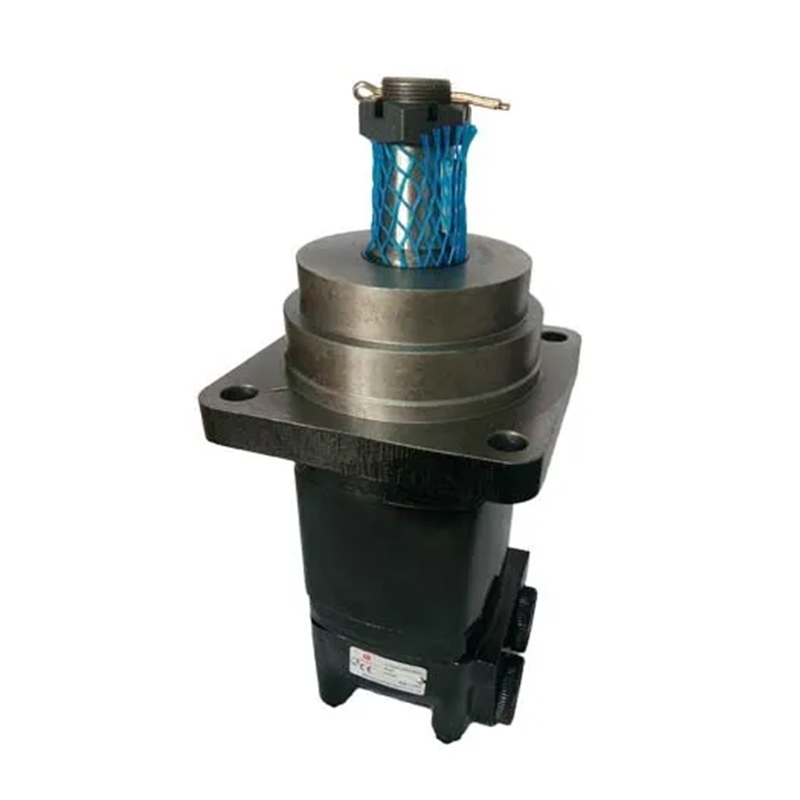

Hydraulic Wheel Motor BMSW/OMSW Hydraulic Spare Parts for Agricultural Machines
The BM hydraulic motor is a low-speed and high-torque hydraulic motor with high efficiency and long service life. It provides a wide speed range, high starting torque, and stable rotation at high speeds. Featuring a compact and lightweight structure, it can be directly connected to working machinery, making it suitable for various low-speed and heavy-duty equipment.
Features:
1. Disc valve motor, geroler type
2. Compact size, high efficiency
3. Low-friction and long life advantages
4. Internal check valves, Escort seal
5. This motor has a rugged housing with an extra large capacity side load bearing
6. Geroler and drive use the SMT series motors parameter, prolong operating life.
Applications:
BMSW motors are suitable for light-load and intermittent working conditions of various wheeled vehicles, including wheel loaders, wheel cranes, tractors and other related equipment.
Main Specifications:
| TYPE | BM5-315 BM5S-315 BM5W-315 | BM5-400 BM5S-400 BM5W-400 | BM5-500 BM5S-500 BM5W-500 | BM5-630 BM5S-630 BM5W-630 | BM5-800 BM5S-800 BM5W-800 | BM5-985 BM5S-985 BM5W-985 | |
| Displacement(ml/r) | 314.9 | 399.7 | 496.6 | 617.8 | 787.4 | 969.1 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak. | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max.Torque(N.m) | cont. | 873 | 1108 | 1385 | 1570 | 1773 | 1900 |
| int. | 1119 | 1440 | 1783 | 1951 | 2122 | 2133 | |
| peak. | 1293 | 1650 | 2060 | 2249 | 2481 | 2399 | |
| Speed.Range(cont.)(r/min) | 10-475 | 9-375 | 8-300 | 6-238 | 5-187 | 5-154 | |
| Max.Flow(cont.)(L/min) | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max.Output.Power(cont.)(Kw) | 32 | 32 | 32 | 32 | 32 | 24 | |
| Weight(kg) | 30.7 | 31.5 | 32.4 | 33.6 | 35.2 | 37.2 | |
Reference Brand List:
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | ||
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | ||
| BMM | MM | OMM | MGX | |||||
| MLHK | J SERIES | - | - | - | BGM | |||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | |
| TE | ||||||||
| HP | H SERIES | DH | MG | RS | TB | |||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | ||
| HR | S,T SERIES | DS | RE | TF | ||||
| MLHRW, RW | W SERIES | OMEW | ||||||
| BMH/BM4 | MH | OMH | ||||||
| MLHH | ME | |||||||
| HW, HWF | RE | TG | ||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | ||||
| HPR | ||||||||
| MLHS | 2000 SERIES | ME | RE | |||||
| BMT/BM6 | MT | OMT | MGT, GMT | |||||
| MLHT | 6000 SERIES | MJ | HT | |||||
| MTM | TMT | |||||||
| BMV | MV | OMV | MGV, GMV | |||||
| MLHV | 10000 SERIES |

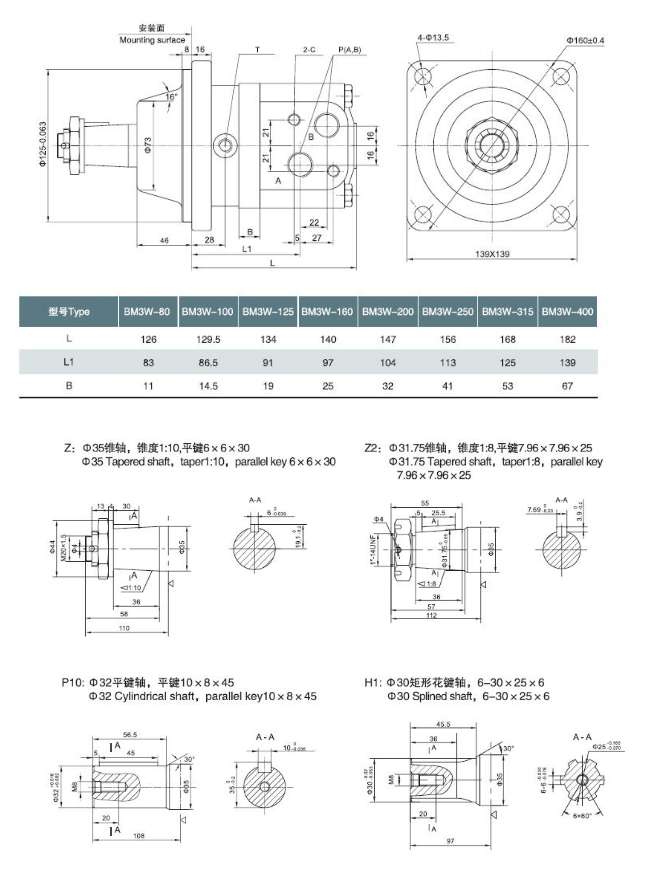

| 型号Type | BM3W-80 | BM3W-100 | BM3W-125 | BM3W-160 | BM3W-200 | BM3W-250 | BM3W-315 | BM3W-400 |
| L | 126 | 129.5 | 134 | 140 | 147 | 156 | 168 | 182 |
| L1 | 83 | 86.5 | 91 | 97 | 104 | 113 | 125 | 139 |
| B | 11 | 14.5 | 19 | 25 | 32 | 41 | 53 | 67 |
