BMSS
Xeriwell or Others
| Type: | Hydraulic Bearingless Motor | Model: | BMSS |
|---|---|---|---|
| Displacement: | 200cc | Warranty Time: | 12-18 Months |
| Cetificate: | CE | Place Of Origin: | China |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

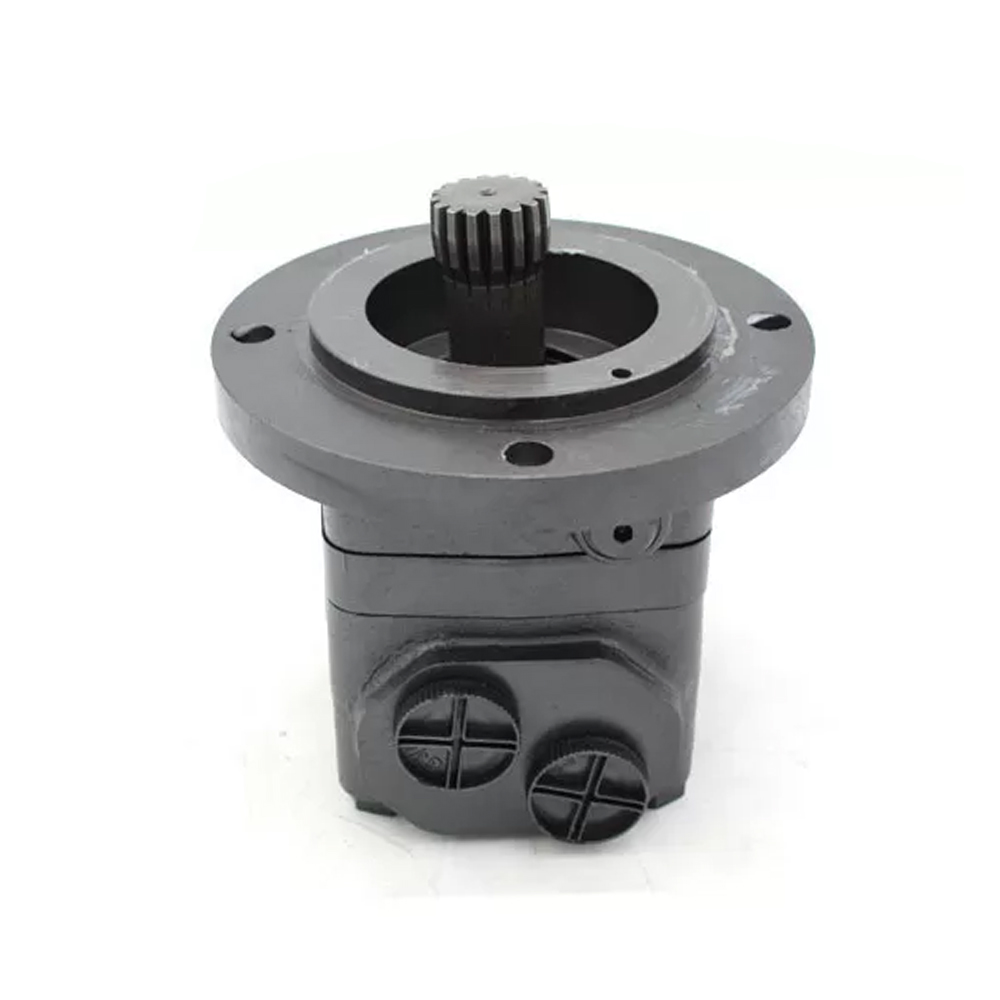

BMSS / OMSS Short engine OMSS 200cc 151B3037
Description:
The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, resulting in higher torques and efficiencies throughout the line. The disc valve product family offers many shaft, port, and speed sensor options that answer directly to the specific needs of each application.
Characteristic features:
1. Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
2. The output shaft adapts in tapered roller bearings that permit high axial and radial forces.Can offer capacities of high pressure and high torque in the wide of applications.
3. Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation
Applications:
The bearingless motor is especially suited for applications such as gear boxes, winchdrives, reel and roll drives.
Main Specifications:
| Type | BMSS 80 | BMSS 100 | BMSS 125 | BMSS 160 | BMSS 200 | BMSS 250 | BMSS 315 | BMSS 400 | BMSS 475 | |
Displacement (cm3/rev.) | 80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | |
| Max.speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
Max. Torque (N•m) | con. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 |
| int. | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | |
| Max.output (kW) | con. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
Max. pressure drop (MPa) | con. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| Max.flow (L/min) | con. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Max. Inlet pressure(MPa) | con. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Net Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |

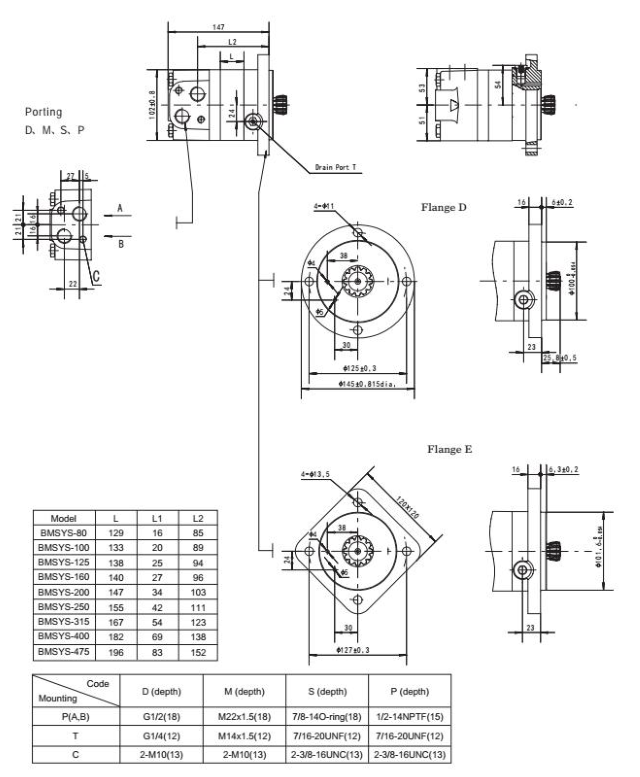

| Model | L | L1 | L2 |
| BMSYS-80 | 129 | 16 | 85 |
| BMSYS-100 | 133 | 20 | 89 |
| BMSYS-125 | 138 | 25 | 94 |
| BMSYS-160 | 140 | 27 | 96 |
| BMSYS-200 | 147 | 34 | 103 |
| BMSYS-250 | 155 | 42 | 111 |
| BMSYS-315 | 167 | 54 | 123 |
| BMSYS-400 | 182 | 69 | 138 |
| BMSYS-475 | 196 | 83 | 152 |
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) |
| P(A,B) | G1/2(18) | M22x1.5(18) | 7/8-14O-ring(18) | 1/2-14NPTF(15) |
| T | G1/4(12) | M14x1.5(12) | 7/16-20UNF(12) | 7/16-20UNF(12) |
| C | 2-M10(13) | 2-M10(13) | 2-3/8-16UNC(13) | 2-3/8-16UNC(13) |
