BMS Hydraulic Motors
Xeriwell or Others
| Features: | Same As OMR/ Eaton S,t,w/ M+S MR | Product Name: | BMS Hydraulic Motor |
|---|---|---|---|
| Warranty: | Two Years | Model Number: | BMS |
| Displacement: | 80,100,125,160,200,... | Color: | Gray, Black, Blue |
| Highlight: | hydraulic rotation motor,fixed displacement hydraulic motor | ||

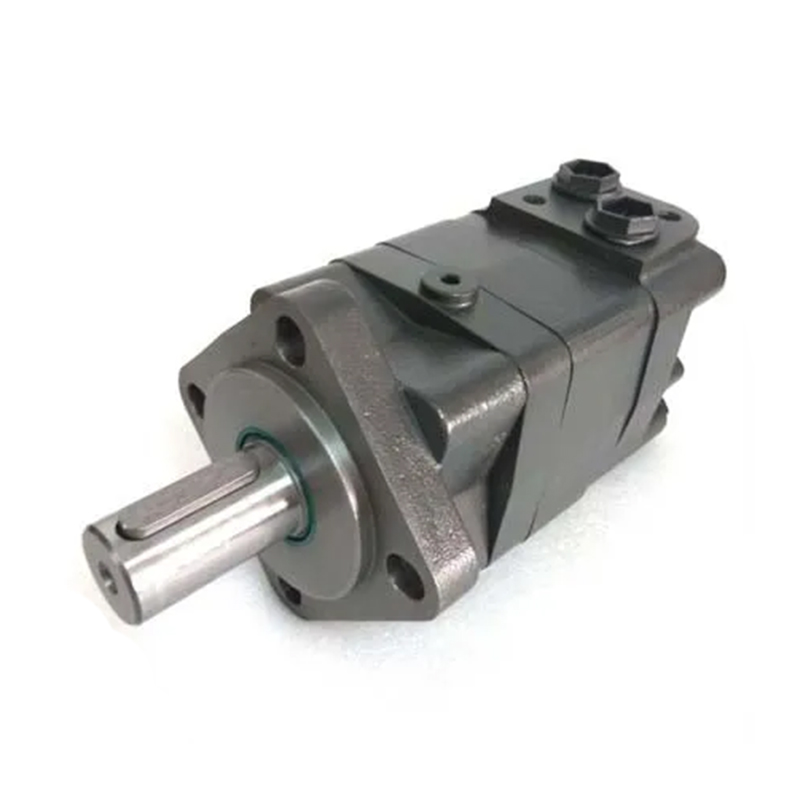

Low Rpm Hydraulic Motor BMS 200 Orbital Hydraulic Motor Fixed Deisplacement Low Speed High Torque
BMS series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
* Advanced manufacturing devices for the Gerotor gear set which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
Hydraulic Motor BMS A Variety Of Names
| hydraulic orbital motor | white hydraulic motors |
| high torque hydraulic motor | hydraulic pump motor |
| low rpm hydraulic motor | small high speed hydraulic motors |
| low speed high torque motor | omt 250 hydraulic motor |
| hydraulic motor high torque | char lynn hydraulic motor |
| gerotor hydraulic motor | sauer hydraulic motor |
| Small Hydraulic Motor | hydraulic motor low speed high torque |
| micro hydraulic motor | |
| low speed high torque hydraulic motor | high torque low rpm motor |
| sauer hydraulic motor | eaton char lynn hydraulic motor |
| hydraulic motor | low rpm high torque motor |
| variable displacement hydraulic motor | char lynn eaton hydraulic motors |
| variable speed hydraulic motor | |
| rotor stator hydraulic motor | Orbit Hydraulic Motor |
| Eaton H series hydraulic motor | |
| hydraulic motor char lynn | |
| char lynn s series motor | |
| eaton 6000 series hydraulic motor | ms hydraulic motor |
| eaton 4000 series hydraulic motor | |
| eaton 2000 series hydraulic motor |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Hydraulic Motor BMS 200 Suitable for applications such as conveyor drives, winches, agricultural machinery, forest machinery, cranes, sawmill equipment and lifts/elevators.
