| Quantity: | |
|---|---|
BM5 315
Xeriwell or Others
| Type: | Hydraulic Disc Valve Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMS | Displacement: | 315ml/r |
| Mounting: | 2 - Bolt | Shaft: | Spline Shaft 30 Mm Diameter |
| Oil Port: | G 1/2 | Drain: | G 1/4 |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

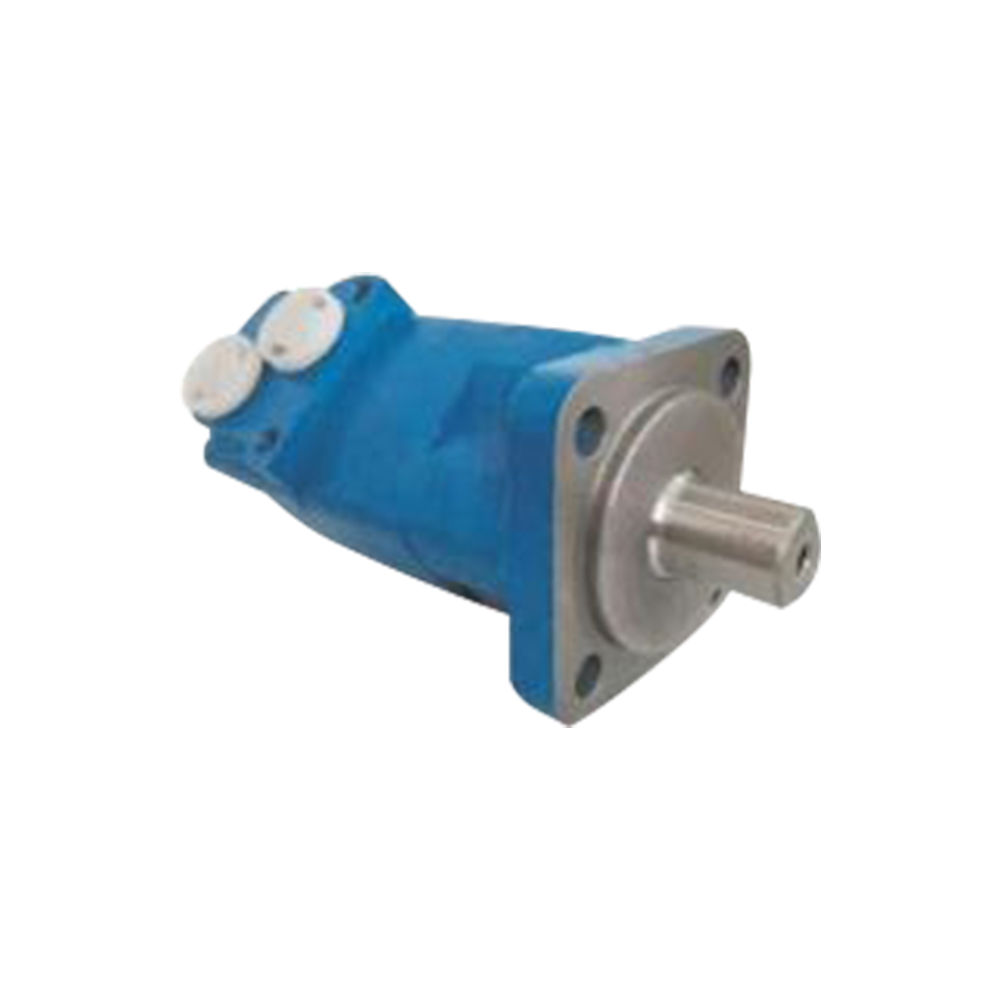

BM5 Low Speed High Torque Motor Replacement Eaton M02096AC01AA0100010000000AAAAF
BMS introduction
Xeriwell BMS= BM5 = EATON 2000 SEREIS
Features:
BMS series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
Advanced manufacturing devices for the Gerotor gear set which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
Model Crossing:
| MOTOR CROSS REFERENCE TABLE | ||||||||
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
