| Quantity: | |
|---|---|
BMRW
Xeriwell or Others
| Features: | High Radial Load, Frequent Starts/stops, Shaft Vibrations | Products Name: | Hydraulic Orbital Wheel Motor |
|---|---|---|---|
| Shaft: | Cone | Displacement: | 125cc-750cc |
| Warranty: | 12-18 Months | Application: | Construction Machines, Heavey Machines, Rollers Etc. |
| Highlight: | hydraulic wheel drive motors,hydraulic track motor | ||

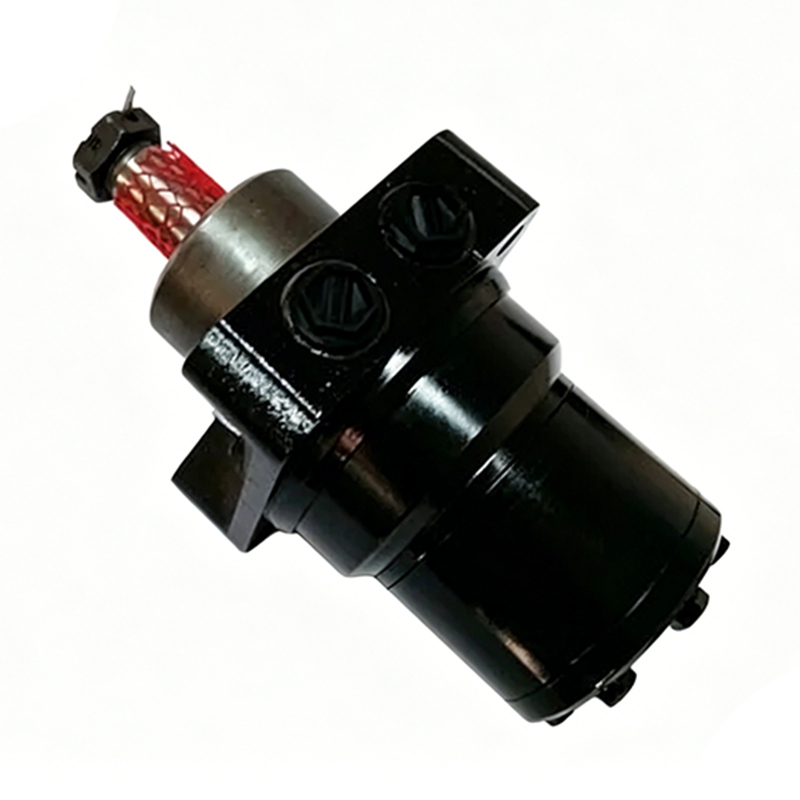

Hydraulic Wheel Motor Hydraulic BMRW Transmission Motor Type For Drilling Rigs
Characteristics
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in needle roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.
| Type | OMER 125 | OMER 160 | OMER 200 | OMER 230 | OMER 250 | OMER 300 | OMER 350 | OMER 375 | OMER 475 | OMER 540 | OMER 750 | |
| Geometric Displacemen (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max.speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max.torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max.output (kW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 14.5 | 11.5 | 8 |
| int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 16.5 | 15 | 10 | |
| Max. Pressure (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
